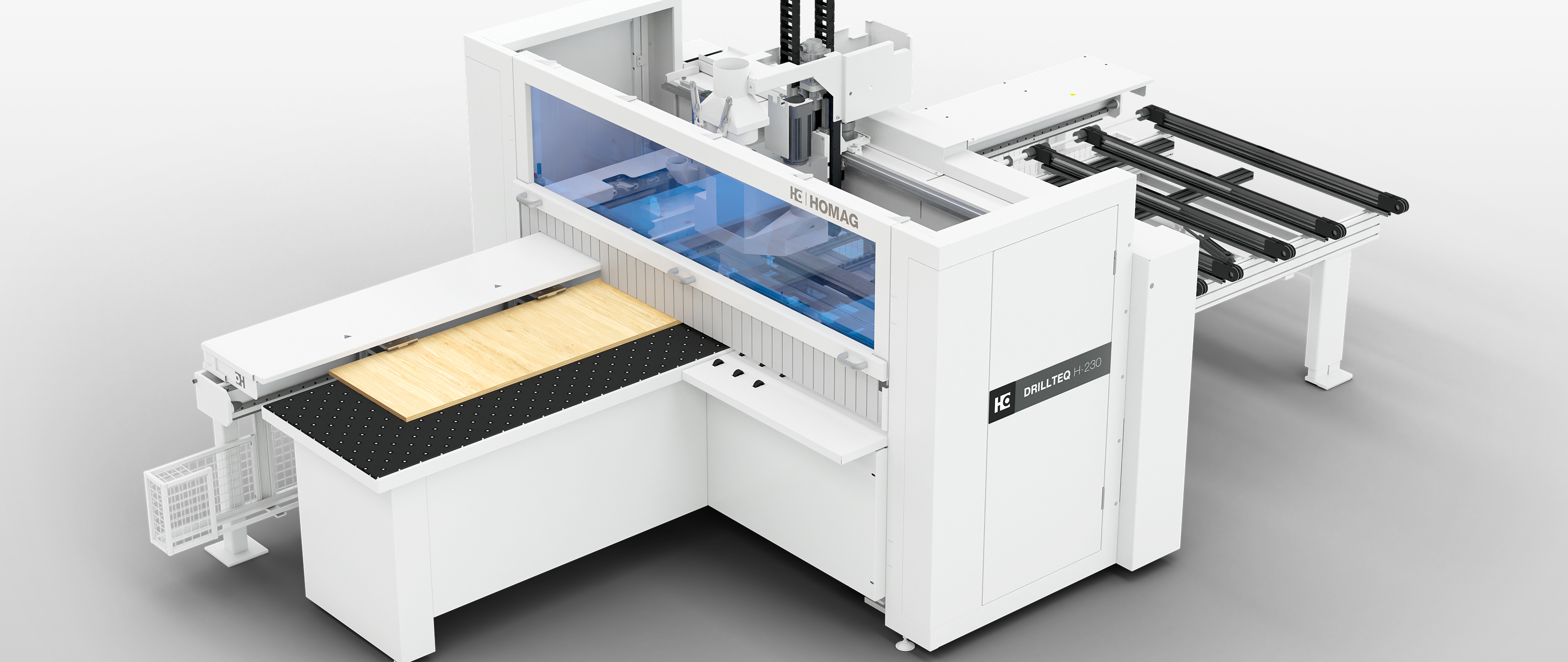

CNC Drilling and Routing Machining Centers DRILLTEQ H-230
CNC Drilling and Routing Machining Centers DRILLTEQ H-230
The perfect start in the 6-sides-processing technology
Operation with one working field for precise drilling process at panels in all 6 sides. The workpieces are optimally positioned by CNC-controlled clamps. High-speed drilling spindles and routers are available. With optional tool change spindle, more application can be realized on this machine in order for high-level flexibility.
Highlights

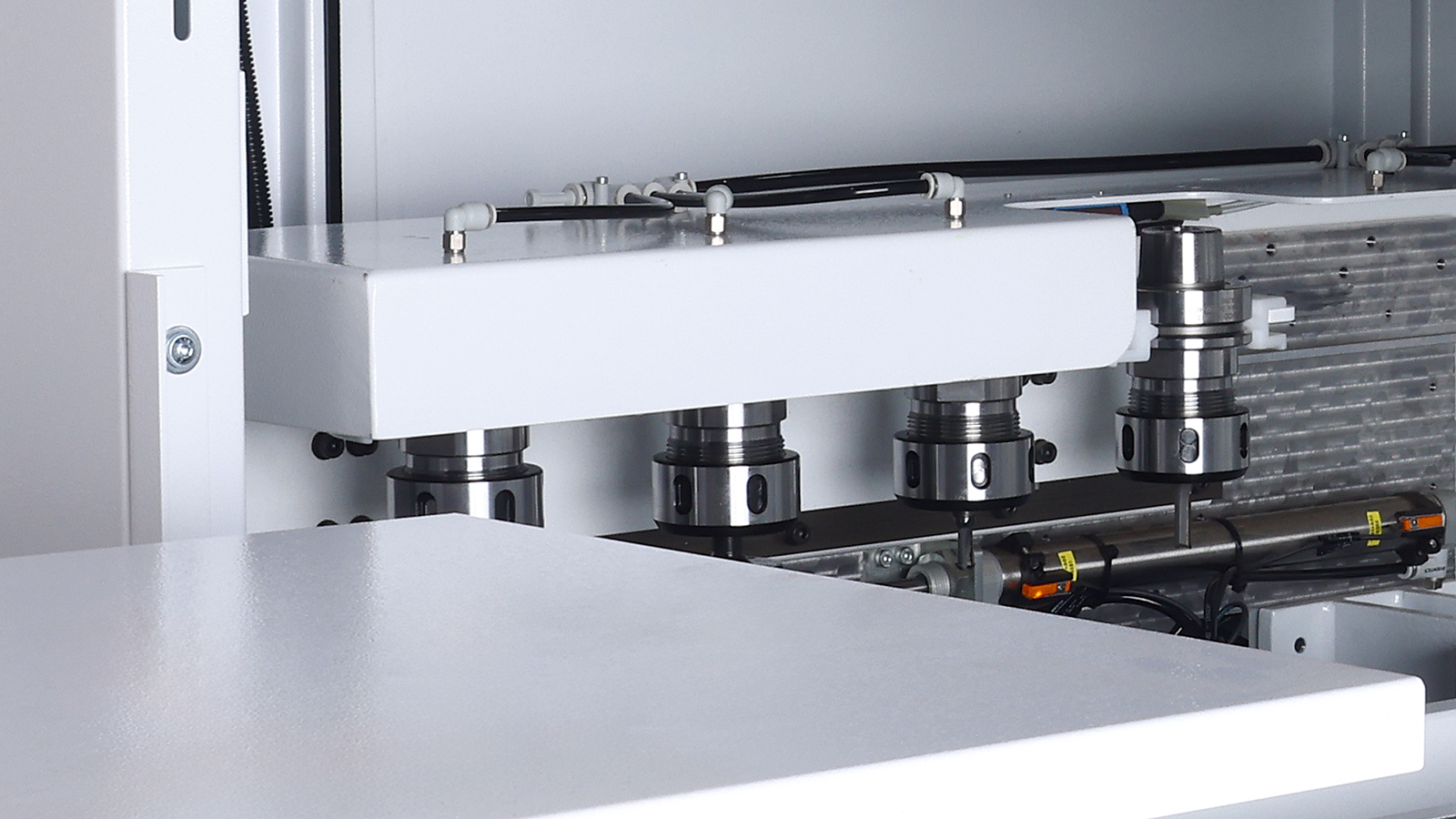

The 4-fold linear changer offers an individual selection for different requirements and is positioned on the side of the machine to save space.

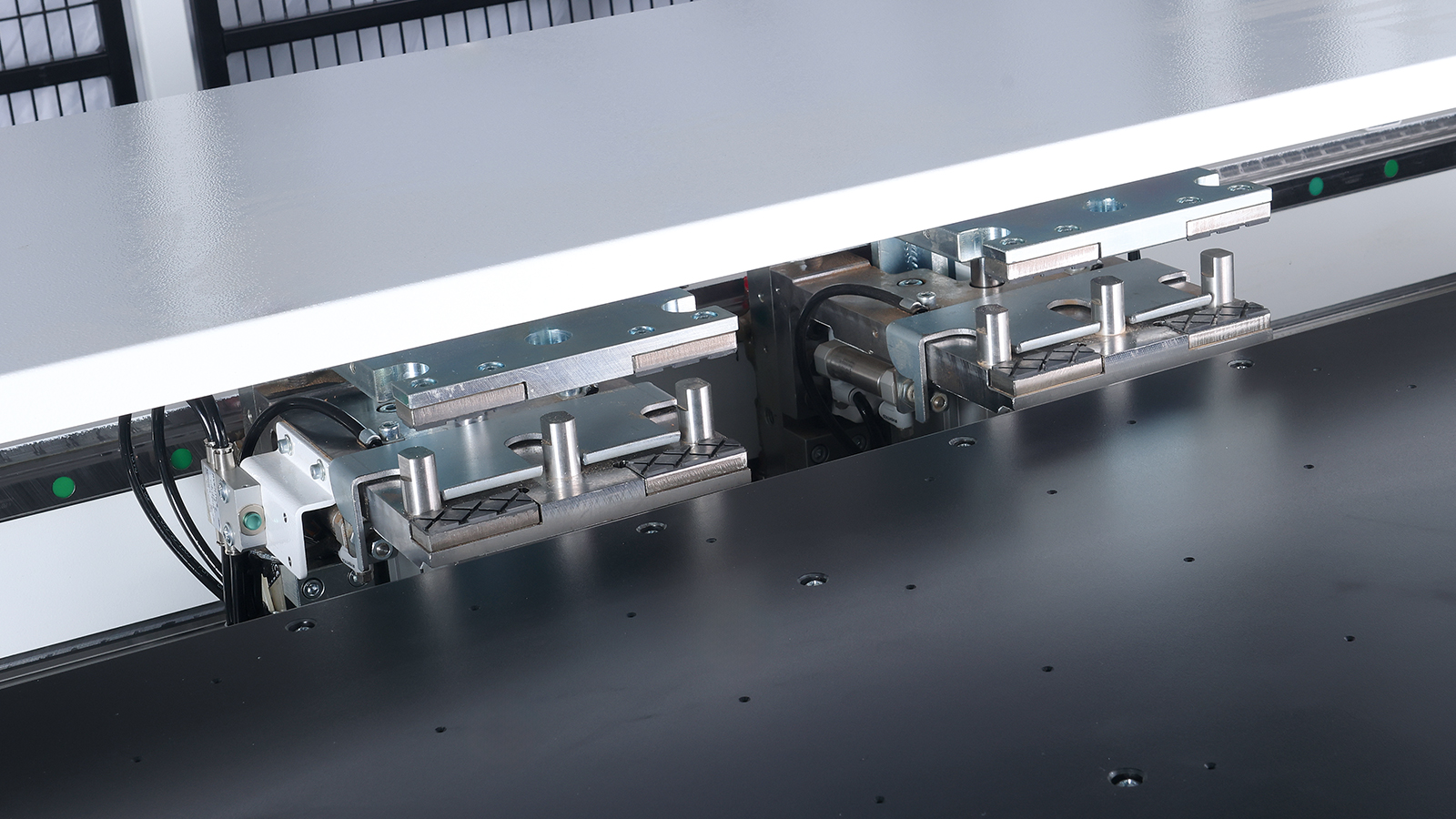

2 CNC-controlled clamping devices ensure permanently firm and precise positioning of the workpieces – regardless of the speed
Images
-
![]()
High-speed drilling gear V8 and machining spindle 3.5 kW | Bottom -
![]()
High-speed drilling gear V13, H6X, H6Y, machining spindle 3.5 kW, grooving saw in X-direction | Top -
![]()
Classic Package - Manual loading and unloading -
![]()
Premium package - automate your processes
Features
-
6 sided-processing along 1 working field
-
2 CNC-controlled clamping devices ensure permanently firm and precise positioning of the workpieces – regardless of the speed
-
Even workpiece dimensions of Length 250-3,000 and width 60(40)-1,250 mm are easy to handle
-
The spindle clamping technology ensures an always accurate drilling depth for all drilling
-
The closed straight guiding system is protected against dust and dirt and thus very durable
-
Optional top electric spindles with automatic tool changer make processing more possiblities.
Technical Data
| Workpiece dimension | Classic | Premium |
|---|---|---|
| Length [mm] | 250 – 3,000 | 250 - 3,000 |
| Width (narrow) [mm] | 40 – 800 | - |
| Width (1,250) [mm] | 40 – 1,250 | 60 - 1,250 |
| Height [mm] | 8 – 40 | 8 - 40 |
