CNC Machining Centers CENTATEQ N-210

CNC Machining Centers CENTATEQ N-210

Individual nesting concepts for the mid-range

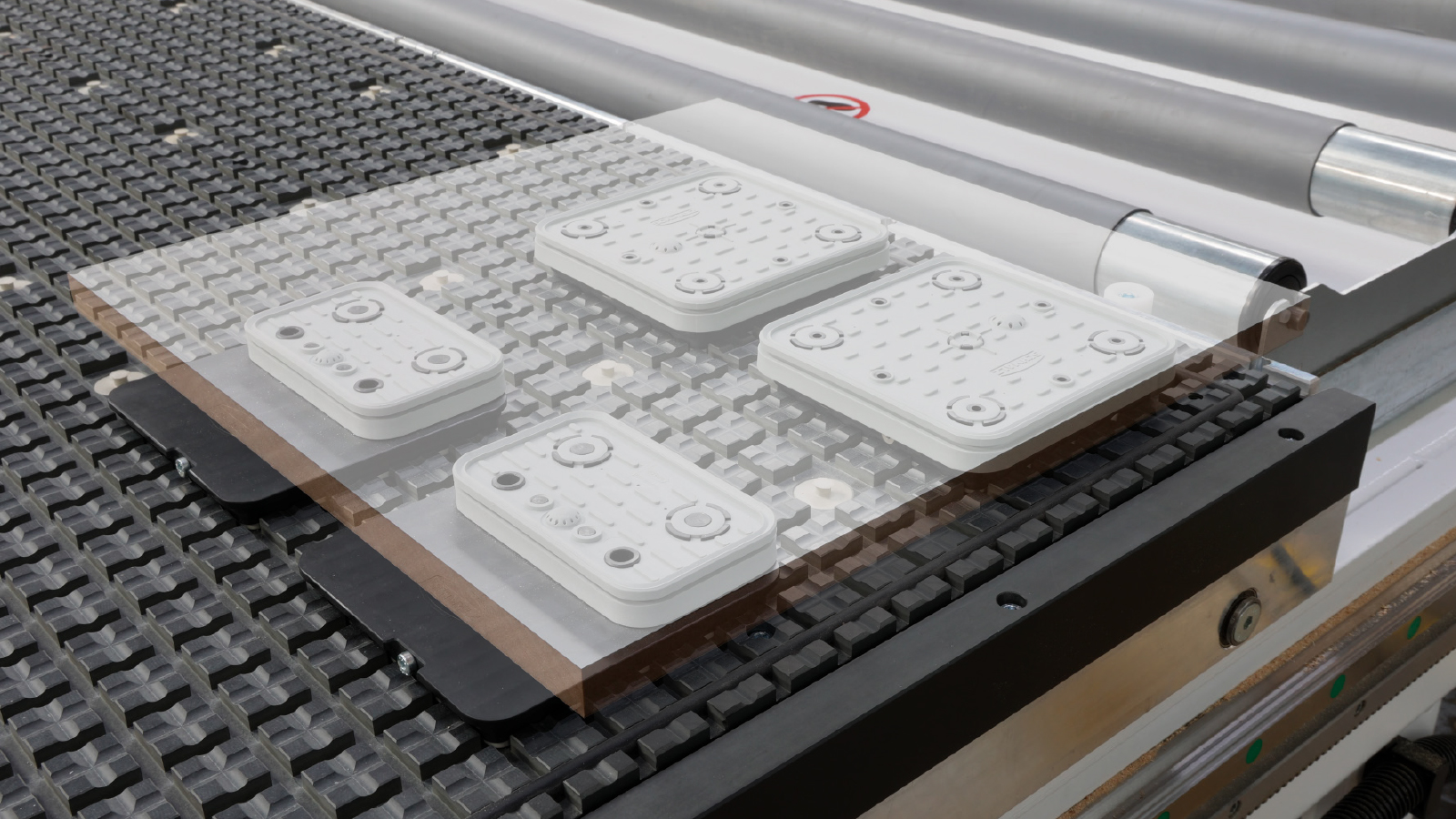

Our nesting machines enable waste-optimized processing and dividing of panel-shaped materials. The classic area of application is the production of carcass furniture or the dividing and finishing of furniture fronts. The machine offers further flexibility when processing individual parts on vacuum clamps. Automation concepts that are easy to connect via Plug & Play offer the option of retrofitting the machine. Differently equipped drilling gears and tool changers offer a high degree of versatility.

Highlights

High-speed drilling technology in different variants from vertical and horizontal spindles and grooving saws

15 DIFFERENT DRILLING GEARS - Various combinations of vertical and horizontal spindles and grooving saws are possible.

Central exhaust port on the gantry

Multi-position extraction for simple integration into production and reduced costs for peripherals

Automation solutions - simple component extensions via plug & play

Our plug & play features allow us to gradually expand the machine right from the start.
Whether the workpieces are to be fed by hand, roller conveyor, pallet truck or storage - we always have the right
always have the right concept for your requirements.

2-level safety concept with light barrier and bumper available

The focus of the two-level safety concept comprising a light barrier and strip bumper is the interaction and interplay between the machine and the machine operator. The system can also produce independently, quickly and with high dynamic parameters without intervention.

Features

  • Heavy industrial welded steel construction in moving gantry design

  • Front and rear stop fences on prismatic guides

  • Milling spindle with vibration sensor for maximum service life

  • Industrial drilling gear with patented spindle clamping for long service life and durability

  • Up to 84 vacuum zones in the highest configuration level

  • Smallest field size for vacuum zones X = 630 mm and Y = 315 mm

  • Stop bolts in the table for aligning individual parts

  • Simultaneous insertion and removal for even shorter handling times and greater productivity

  • Automated material handling from 3-60 mm panel thickness

  • Open system with interfaces to standard software solutions

  • Local and web-based apps for design, optimization, material organization and labelling

Automation & Further Functionality

Panel dividing

What is nesting?

Our nesting machines and software enable cut-optimized processing and dividing of panel materials. This allows you to maximize your material yield, increase your productivity and remain flexible.

STORETEQ F-100

Gentle on material, automatic and fast - The STORETEQ F-100 single-axis feeder supports panel dividing efficiently and flexibly

STORETEQ P-300 | P-500

Smart feeding together

STORETEQ P-310|P-510 and P-320|P-520

Save space together
