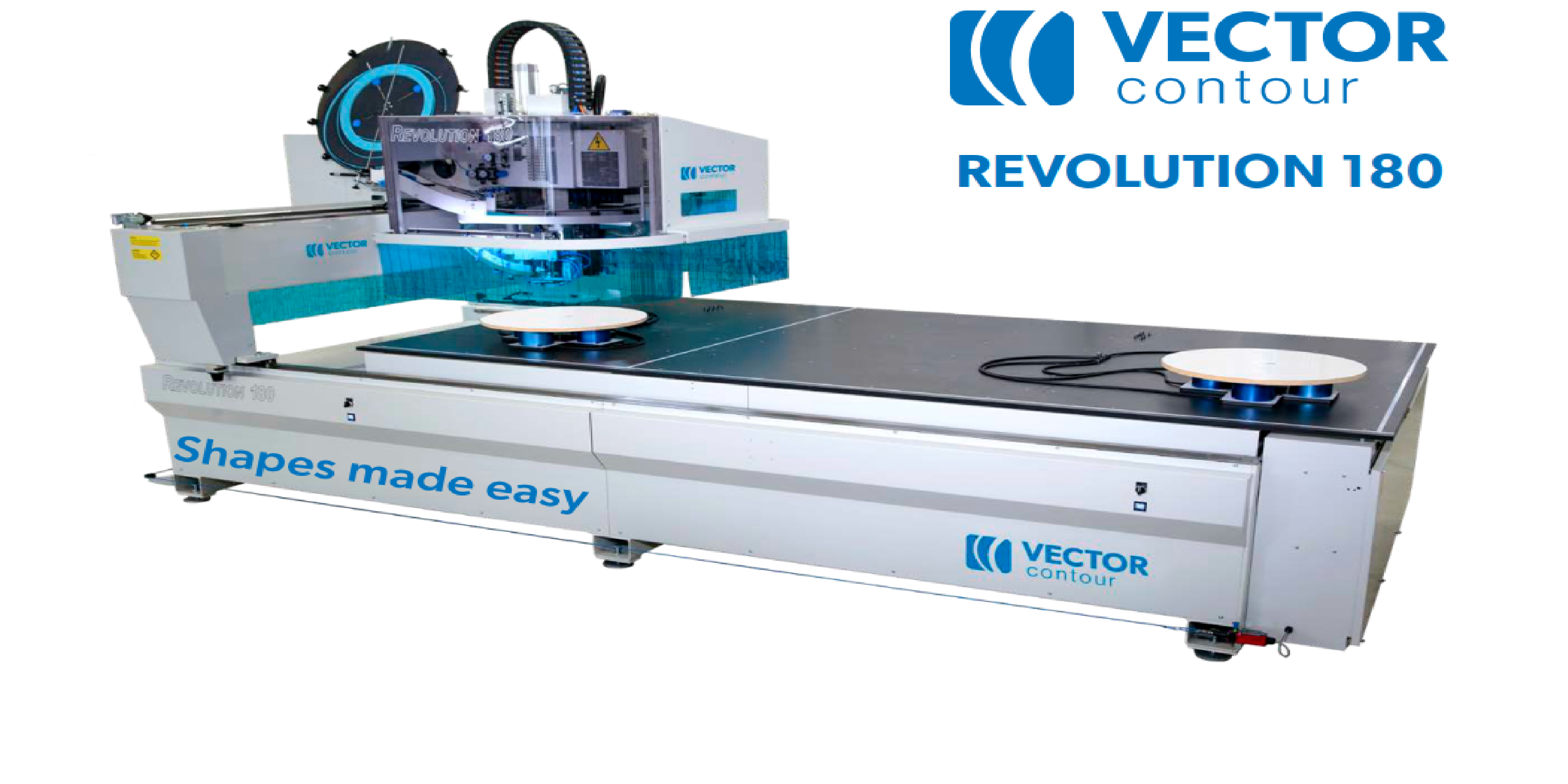

Vector Revolution 180 is automatic contour edgebanding.
The Vector Revolution 180 applies edgeband in one continuous process, the machine applies edgebanding to shaped components and also trims and scrapes at the same time. With cycle times under two minutes, the contour edgebander consistently produces quality parts, including 360 lap joints. The patented process is controlled by a simple and intuitive interface that doesn’t require CNC programming.
Product available exclusively in Canada, Mexico, United States .
Highlights

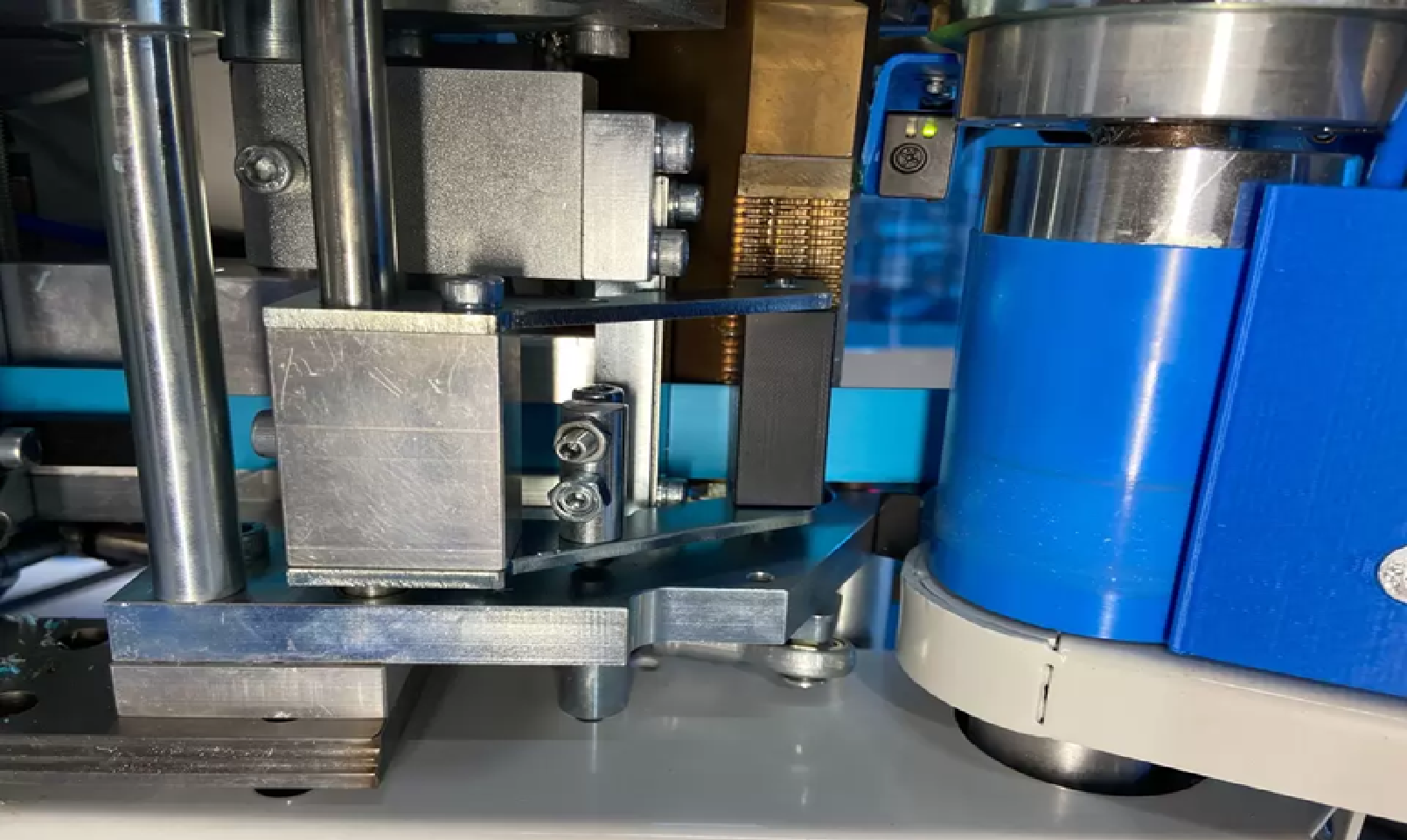

Uses a cartridge and nozzle glue extrusion system which is ideally suited to this contour banding application

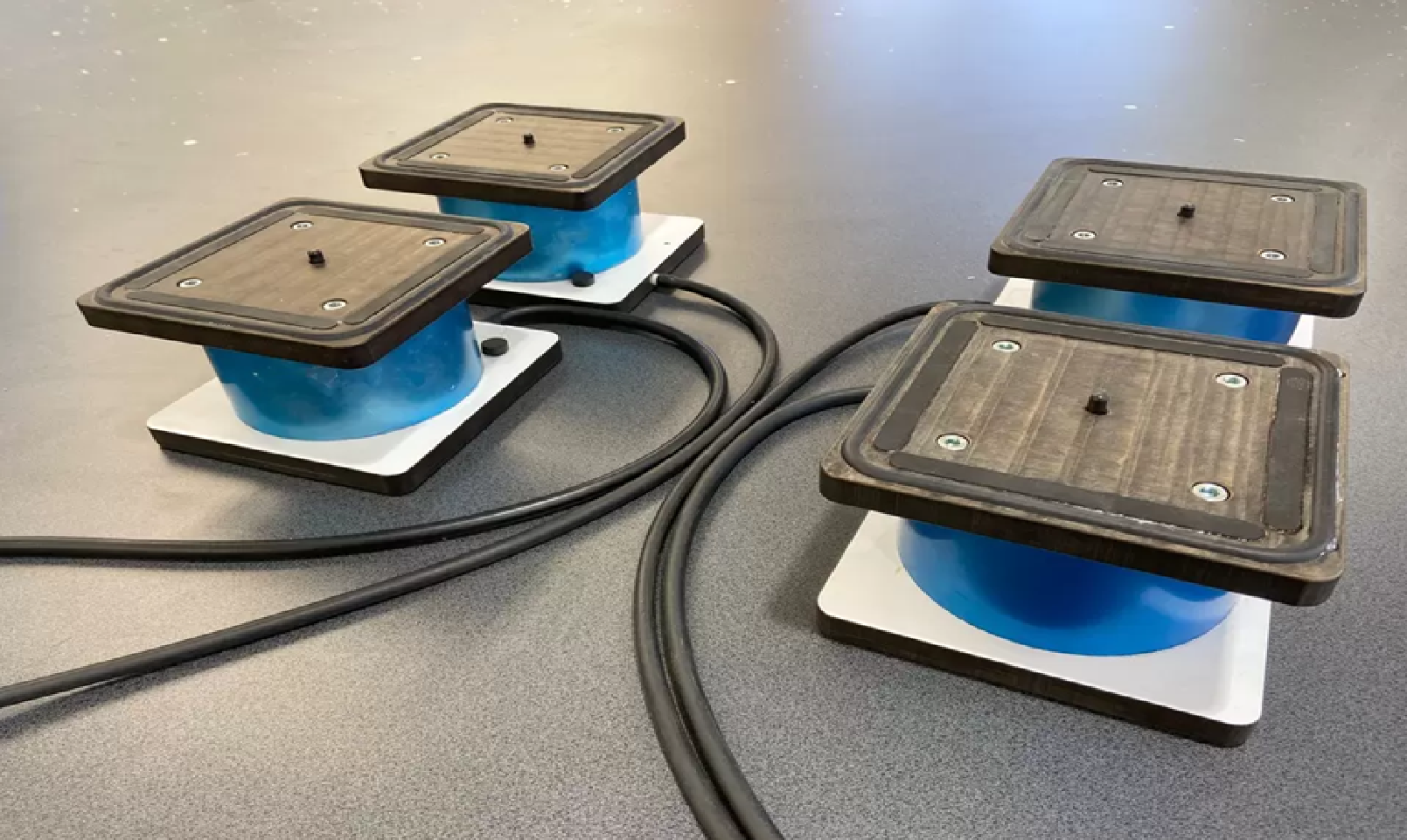

The workpieces are supported by means of vacuum cups sitting on a large flat bed.

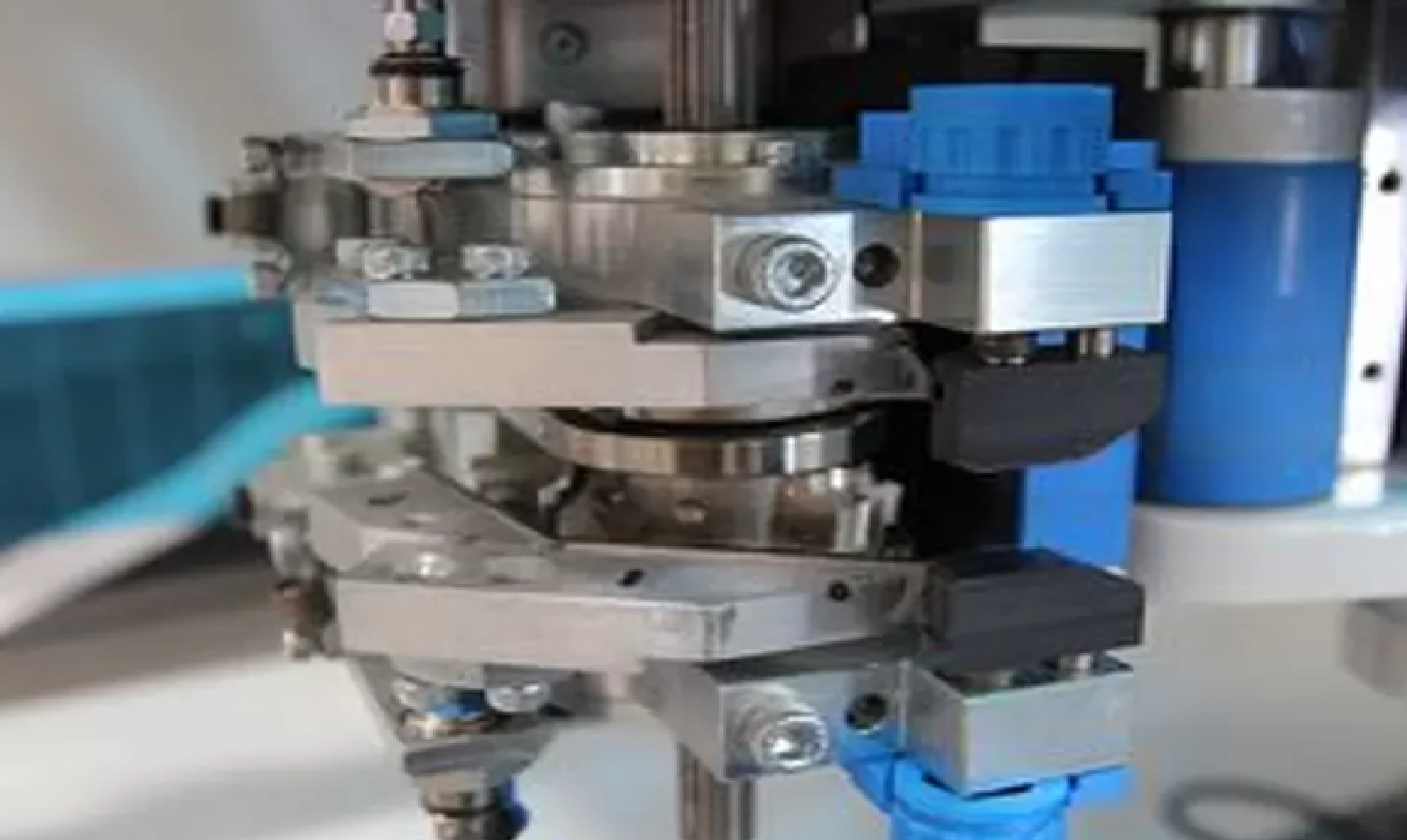

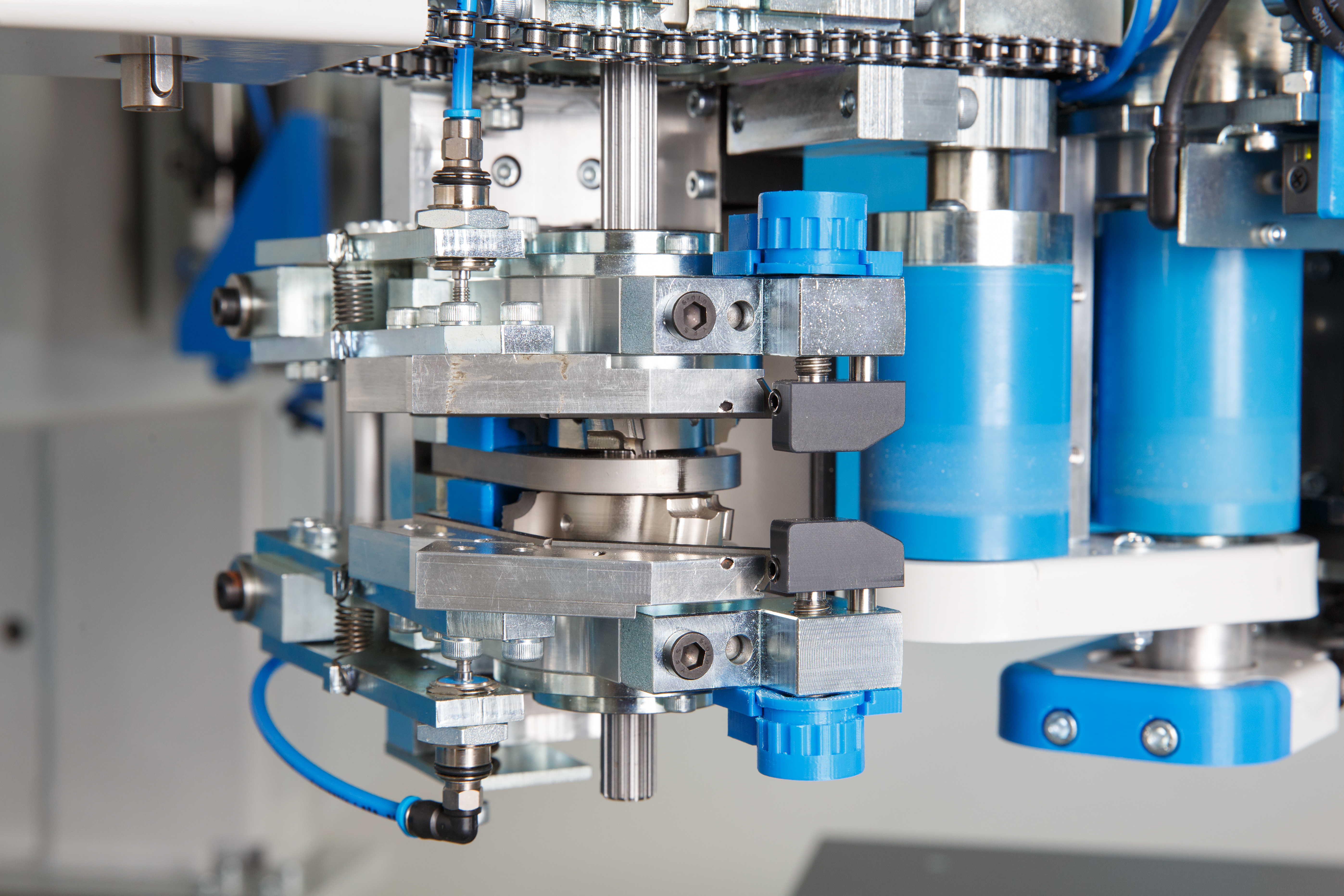

Incorporates a surface scraper in the trimmer unit. This unit operates using the patented SideWinder system and is performed simultaneously.

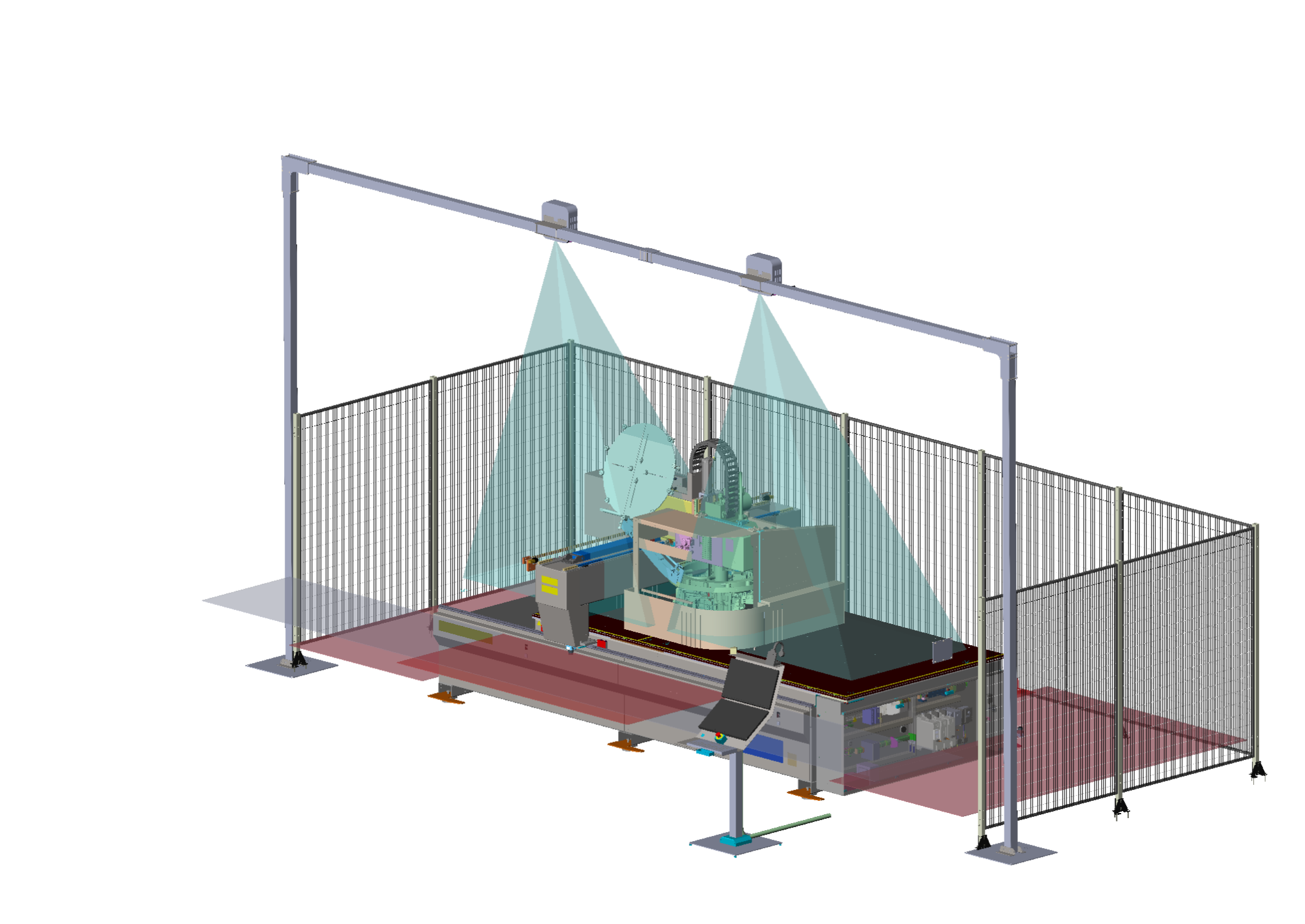

Projection system for making quick positioning of vacuum cups and workpiece.
Features
-
In one continuous process, the machine applies edgebanding to shaped components.
