CNC Machining Centers Greda Mitika V5

CNC Machining Centers Greda Mitika V5

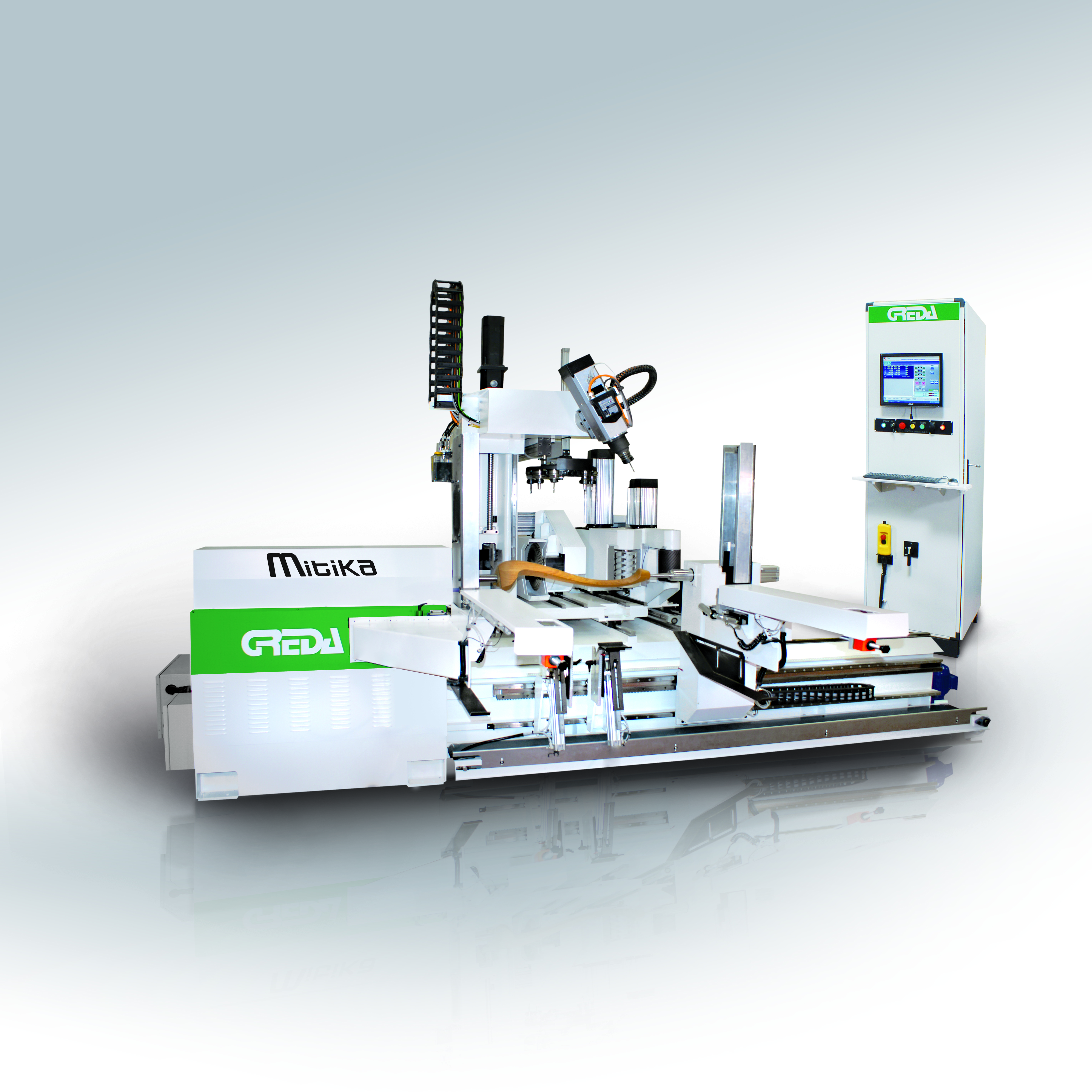

Mitika V5 is a CNC lathe that provides flexible and complete solution that meets the production requirements of customers who work with complex, large diameter or long parts.

Mitika V executes turning, sanding, shaping, and carving operations on a piece in one working cycle at reduced working times, thanks to tool-changing at masked times and the jointly processing of the cutting and the sanding units. Moreover, the automatic piece loading and unloading system allows Mitika V to process without the presence of the operator. Mitika V is available in different configurations and dimensions in order to allow working operations on pieces with a max. diameter of 500 mm and a max. length of 3000 mm.

Product available exclusively in Canada, Mexico, United States .

Highlights

Hopper feeder and automatic unloading system drastically reduces labour input and part handling by the operator.

Full 5-axis machining with tool changer allows for limitless processing while 3 separate shaping aggregates provides the ability to remove large amounts of material while the part is fixed or in rotation.

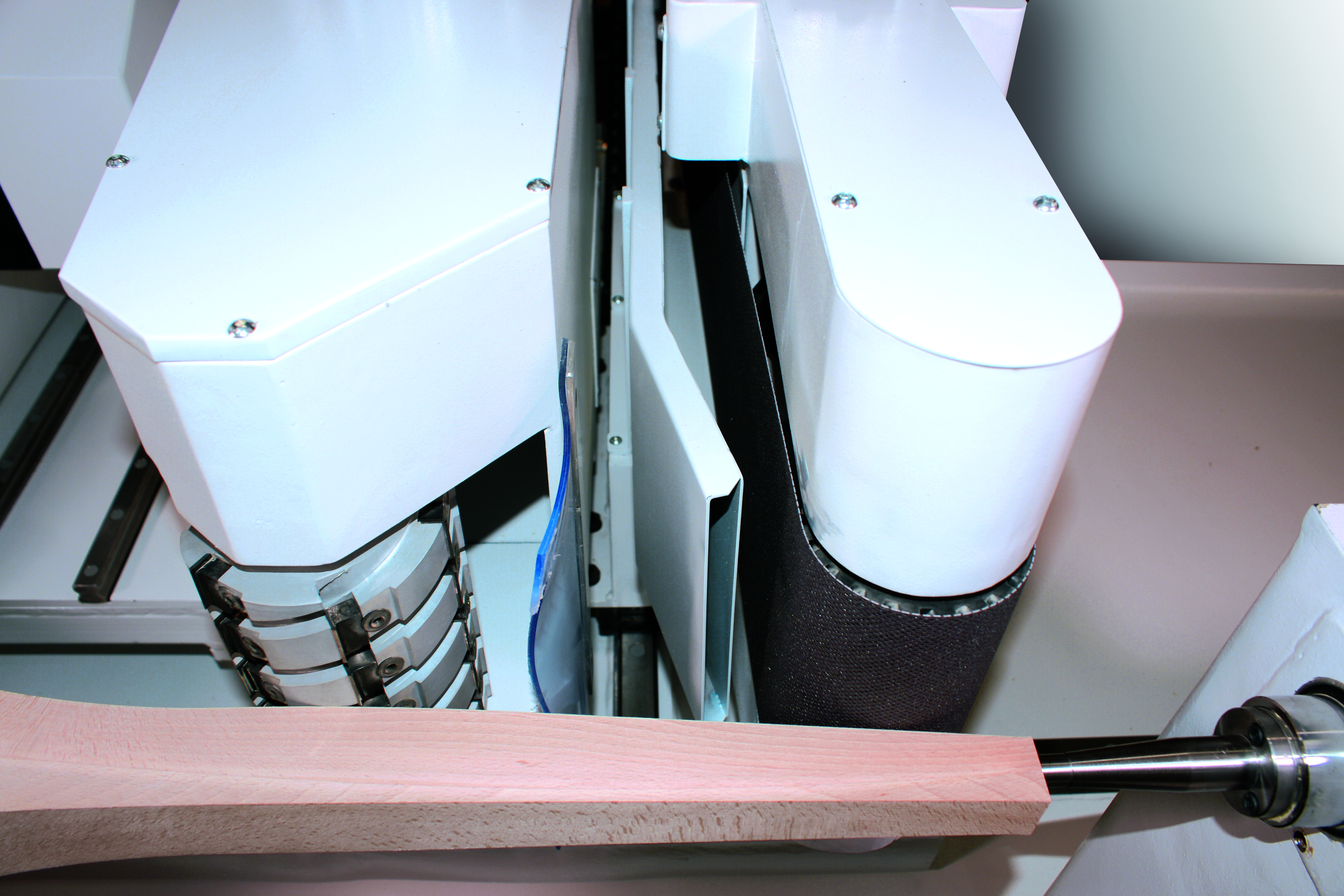

Drum, belt and brush sanding heads provide finished part quality directly off of the machine.

Features

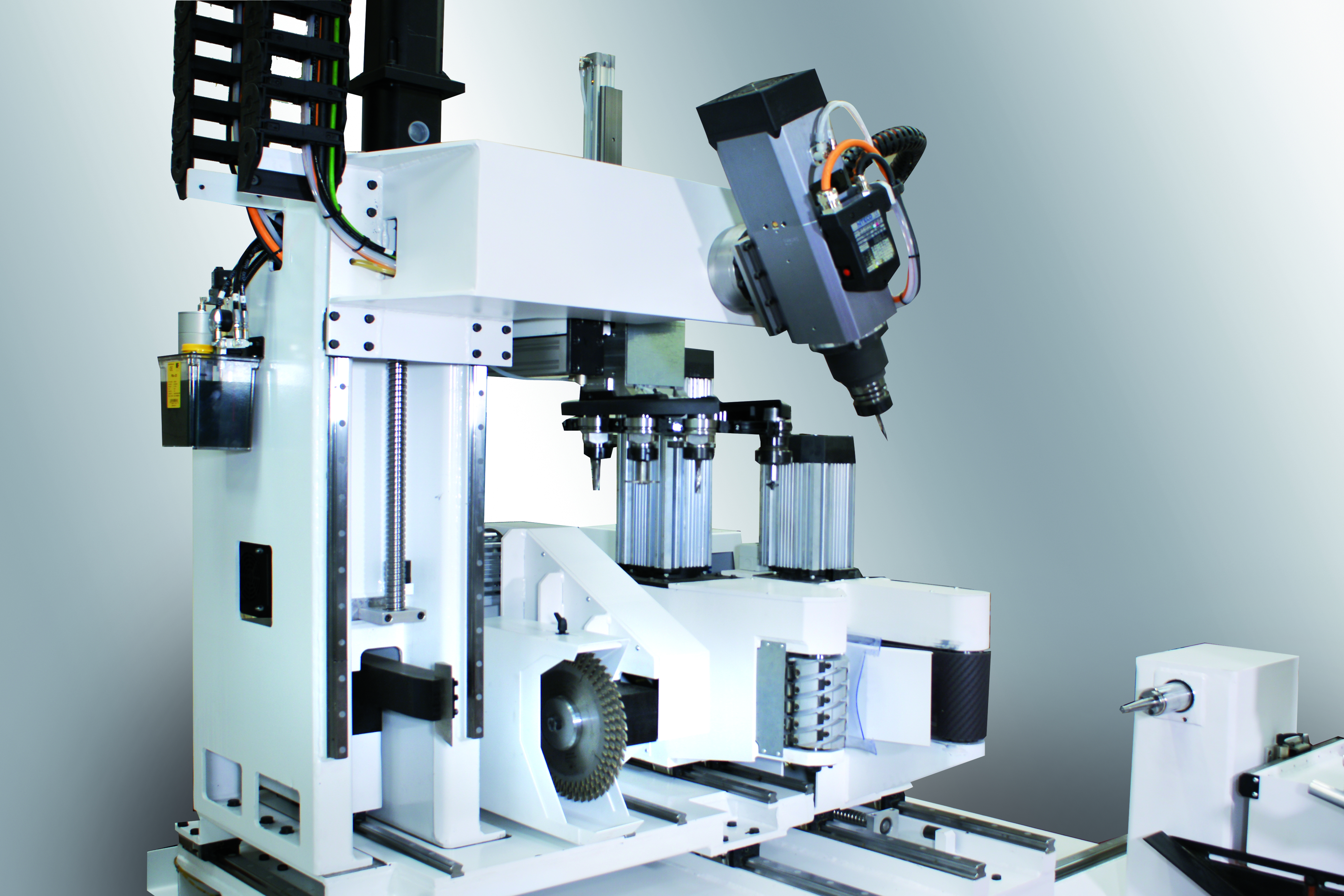

  • 5-axis spindle with 12 position tool changer for ultimate flexibility.

  • Sawblade unit for large stock removal while in rotation.

  • Gouge for fine finish processing of turned components.

  • Helical milling head for large stock removal from a fixed face.

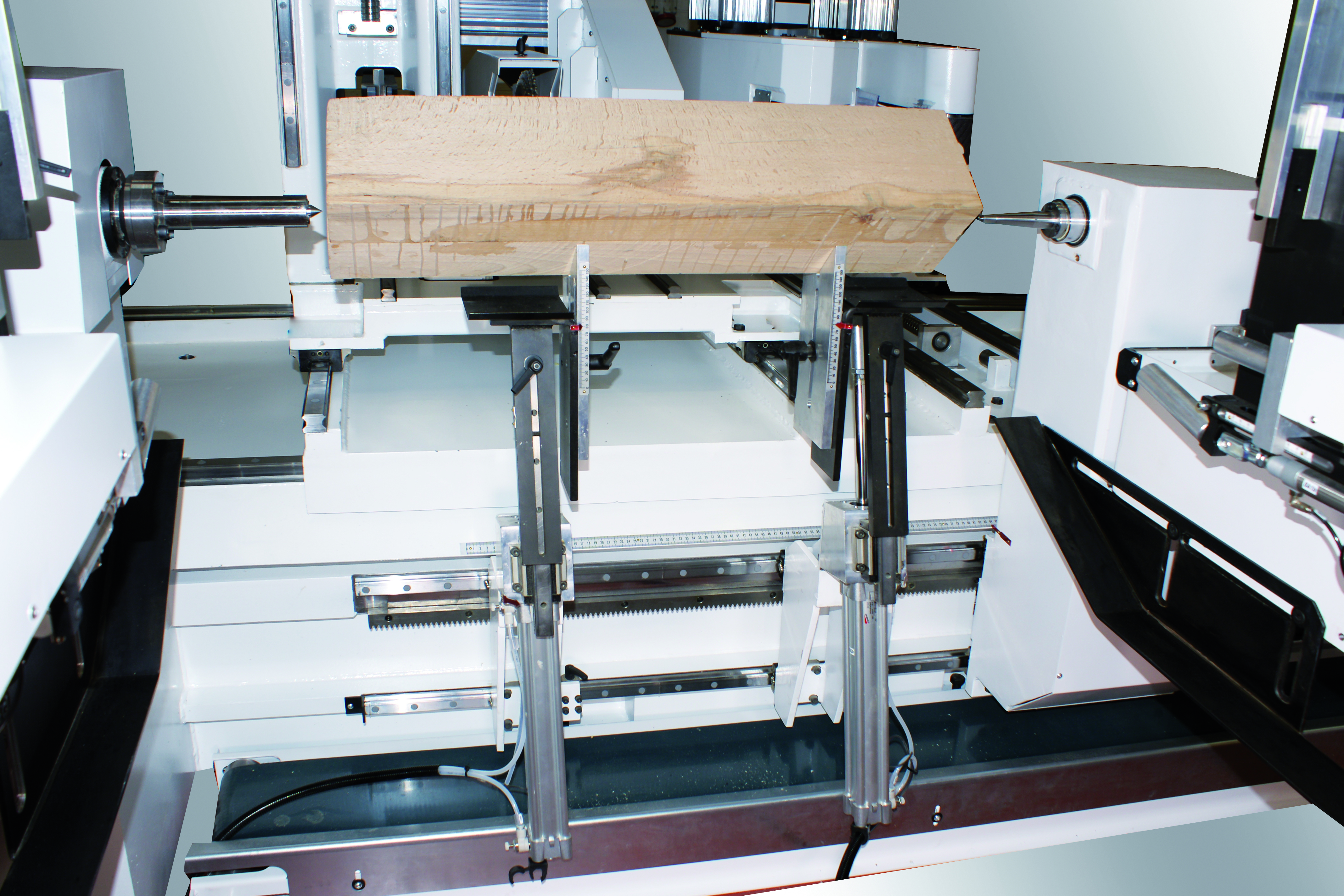

  • Automatic loading system for high-production environments without the need for high labour input.
