CNC Machining Centers CENTATEQ P-100

CNC Machining Centers CENTATEQ P-100

Speed and precision paired with user-friendliness and productivity

The CENTATEQ P-100 is a highly efficient, foundational range CNC Processing center available to perform 3-4 & 5 axis applications, Machine processing length is 10 feet, can perform Routing up to 1.600 mm in Y direction and a software optimized working field in all the variants. Its automatic tool changer and integrated tool management system optimizing CNC operations and maximizing output. With a strong focus on precision and durability, this machine is built to deliver top-notch results consistently. With its compact design and efficient features, the CENTATEQ P-100 is the perfect choice for small to medium-sized cabinet furniture workshops.

Highlights

Linear changer with 10 positions and integrated tool pick-up station, side-mounted

Everything is well stored and quickly accessible. Tool changers are the basis for flexible use. Either as a linear changer system (pictured) on the side, or traveling with the spindle.

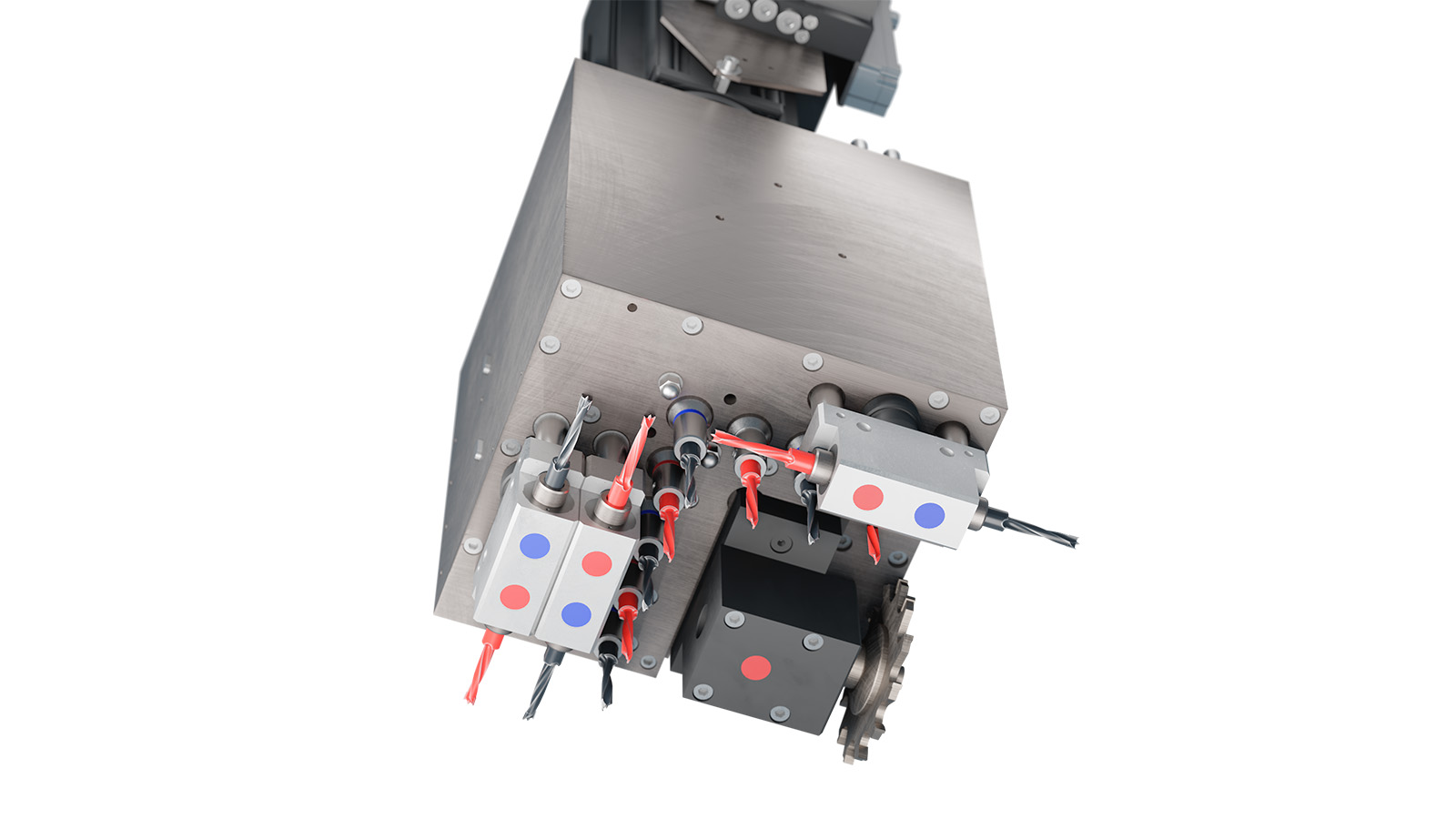

One of 4 possible drilling gearboxes for individual machining. Drilling gear V8/H6GX

High-speed drilling technology for precise drilling. One of 4 possible drilling gearboxes for individual machining. Drilling gear V8/H6GX with 8 vertical drilling spindles, 4 horizontal drilling spindles in X, 2 horizontal drilling spindles in Y and a grooving saw Ø 100 mm in X direction.

Features

  • Suitable for 3-4 & 5 axis Applications

  • Versatile processing center with 4-field loading

  • Routing up to 1.600 mm in Y direction and a software optimized working field

  • Flexible and customizable for multiple configurations

  • Variable processing speed and configurable drill blocks with grooving saw

  • Quick and effortless positioning of the vacuum cups

  • Automatic spindle clamping system for precise depth

Technical Data

CENTATEQ P-100ProfessionalPremium
 XYZXYZ
Working field [mm] (X-Y-Z)3.2501.6001003.1001.600150
Routing (Ø = 25 mm) (X-Y-Z)3.2501.6001003.1001.600100
Drilling [mm] (X-Y-Z)3.2501.335703.1001.285-

 LengthWidthHeightLengthWidthHeight
Machine dimensions [mm]7.4604.8502.5437.7154.8502.543
