From human to machine: Cutting automation, simplified.
You decide - automatic or manual. The hybrid machine concept of the SAWTEQ S-200 flexTec is specially designed for small and medium-sized businesses. Produce batch size 1 efficiently in robot mode or switch to manual mode for complete processing flexibility. The robot saw relieves you of routine tasks so that you have more time for more demanding work.
Highlights
Robot operation enables unmanned, highly efficient batch size 1 production.
The robot and the self-lowering lifting tables in the system work without operator intervention until the stacks are full.
Removable insert plates that can be easily removed from the aisles between the air cushion tables and hooked into the safety fence when switching to manual mode.
Images
-
![]()
For continuous part identification, the finished parts or the top part of the finished parts package (in operator mode) are automatically labeled. -
![]()
-
![]()
-
![]()
suction traverse panel saw with robot SAWTEQ S-200 flexTec -
![]()
Features
-
Surface scanner for automatic lowering of the destacking lifting tables for optimum stack construction
-
Parts buffer – this is where the robot temporarily deposits parts that are to be either destacked or fed to the saw again later
-
Central angular pressure device integrated directly into the saw carriage for up to 25% shorter cycle times compared to conventional systems
Technical Data
| Saw blade projection [mm] | 65 (as option 80) |
| Cutting length [mm] | 4.300 |
| Saw carriage speed [m/min] | up tp 80 (as option 120) |
| Program fence speed [m/min] | up to 80 |
| Main saw motor [kW] | 50 Hz: 7,5 (or 11 as option 18) 60 Hz: 7,5 (or 11 as option 21) |
| Monitor | 24" full-HD multi-touch display |
| Operating software | CADmatic 5 |
Videos
Please confirm that when you use YouTube, data such as your IP address, browser identifier and similar may be transmitted to Google.
» Privacy Policy

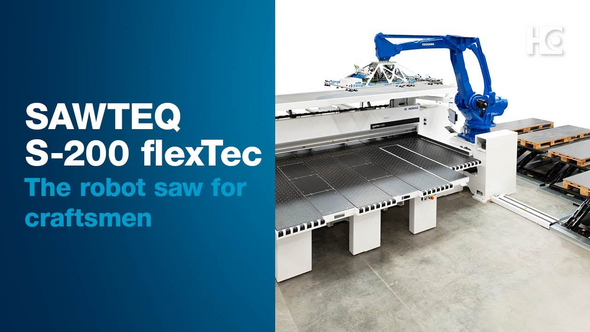

SAWTEQ S-200 flexTec
We show you how the robot saw automates horizontal panel cutting and offers maximum flexibility at the touch of a button. Plus, it is an affordable solution for smaller companies.
Brochures
Product Comparison
flexTec saws for cutting
|
|
| |
|---|---|---|---|
| Function / Option | SAWTEQ S-200 flexTec | SAWTEQ S-300 | S-310 flexTec | SAWTEQ S-400 | S-410 flexTec |
| Main saw frequency converter | - | (optional) | (optional) |
| Cutting line control for main saw | - | (optional) | (optional) |
| Scoring saw stroke | pneumatic | pneumatic, motorized | pneumatic, motorized |
| Slide rails for thin panels | (optional) | (optional) | (optional) |
| Cutting gap closers | - | (optional) | (optional) |
| Dust-trap curtain | - | (optional) | (optional) |
| Automatic angle cut | - | (optional) | (optional) |
| Soft Touch | - | (optional) | (optional) |
| Pressure adjustment | manual, automatic | manual, automatic | manual, automatic |
| Spring-pressured running wheels | - | ||
| toleranceCheck | - | (optional) | (optional) |
| MSQ | - | (optional) | (optional) |
| Plastic/plaster package | - | (optional) | (optional) |
