Cardboard-box Cutting and Closing Machines PAQTEQ S-200

Cardboard-box Cutting and Closing Machines PAQTEQ S-200

Perfect packaging, fully automatic

The Cardboard-box closing machine PAQTEQ S-200 safely and economically closes completely packed cardboard boxes with side closure in a fully automatic way. The result is a cleanly closed cardboard box, which optimally protects products during transport. Whether batch size 1, small series or serial production, the PAQTEQ S-200 flexibly adjusts to your requirements and demands.


  • Consistently high packaging quality by sealing the cardboard boxes using hot-melt
  • High performance, up to 10 cardboard boxes/min in series production
  • Flat packaging from minimum box height 22 mm
  • Can work in stand-alone operation as well as being integrated into a complex packaging line
  • Intuitive operation thanks to powerTouch


  • Automatic cardboard box measuring at the infeed, no data input required even by using boxes with different sizes

  • Closing mechanisms adjust quickly and fully automatically to the size of the specific cardboard box

  • woodBase reference number management

  • Savings of up to 85 % thanks to hot-melt technology (compared to using adhesive tape)

    Savings of up to 40 % in cardboard consumption thanks to the usage of side-closing packing designs

Technical Data

Package length (internal dimensions) [mm]

400 - 2,500

Package width (internal dimensions) [mm]

180 - 1,100

Package height (internal dimensions) [mm]

22 - 250

Package weight [kg]

max. 80

Working height [mm]

900 +/- 30

Conveying speed packaging belt [m/min]


Operating pressure [bar]


Quality of the cardboard


Thickness of the cardboard [mm]

2.7 - 6.5    +/- 0.2

Cardboard quality according to 55468 [mm]

1-corrugation, thickness up to approx. 4.0 (Quality 1.10 - 1.40)


2-corrugation, thickness up to approx. 6.5 (Quality 2.10 - 2.30)



(Previous product name: Cardboard-box closing machine VKV 710)

Automation & Further Functionality


Customized packaging - sustainable and ecologically aware


Insert station with robot for automatic filling of cardboard-boxes


Please confirm that when you use YouTube, data such as your IP address, browser identifier and similar may be transmitted to Google.

» Privacy Policy

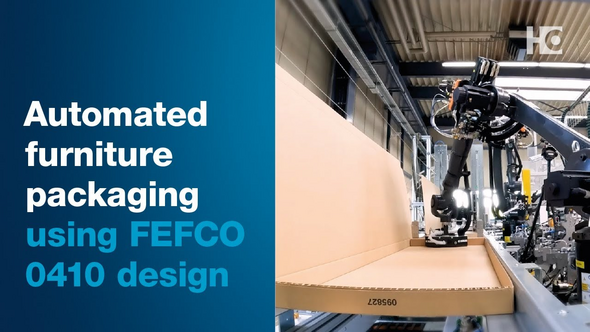

Packaging solution with 3-side sealing and automated insertion stations

The line reproduces the complete process of automated furniture packaging from folding of the cardboard box in FEFCO 0410 design, insertion of the workpieces and filling material to automatic closing, gluing and stacking of the boxes.
