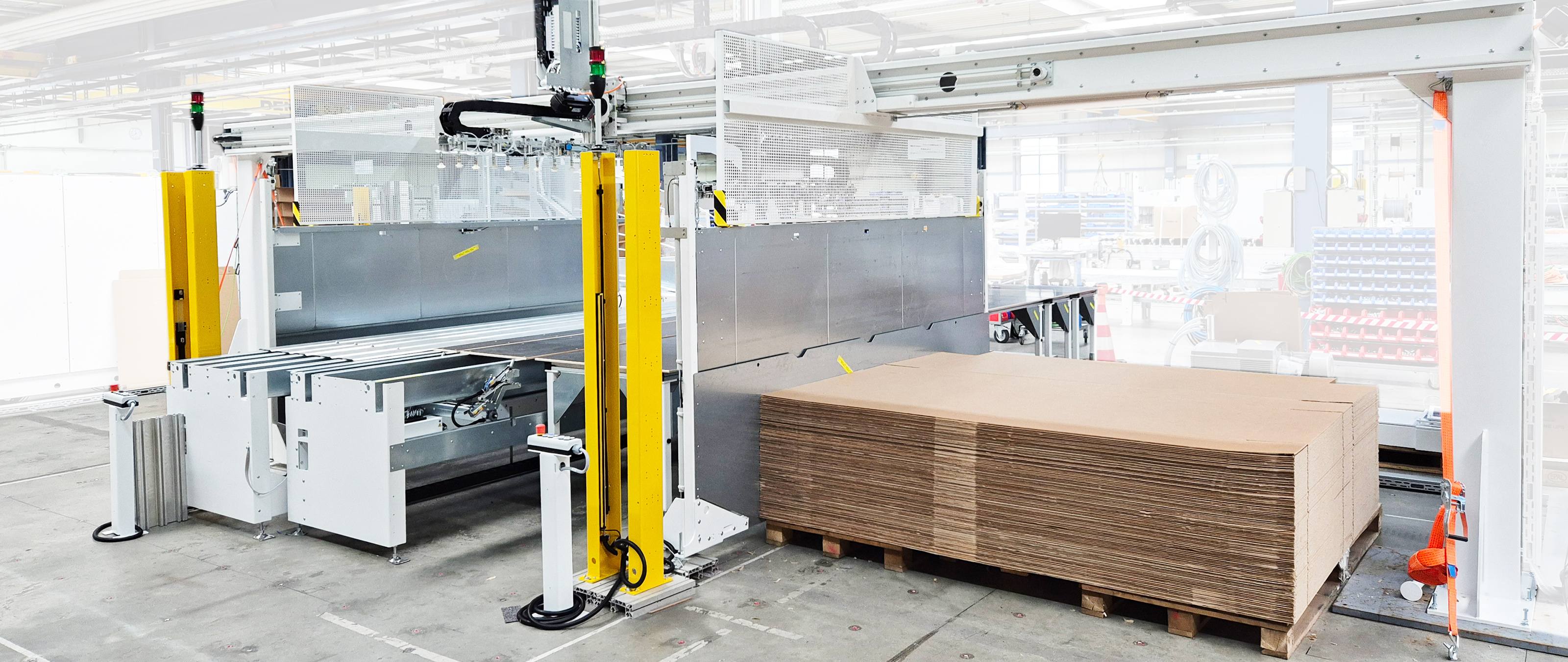

Cardboard-box Cutting and Closing Machines PAQTEQ F-200
Cardboard-box Cutting and Closing Machines PAQTEQ F-200
Precise and automatic – folding cardboard made easy
The PAQTEQ F-200 cardboard folding machine is your efficiency booster for packaging. Your process becomes more economical, faster, and fully automatic. Say goodbye to manual folding—rely on precision and efficiency! The PAQTEQ F-200 is flexible and offers various connection and feed options.
Highlights

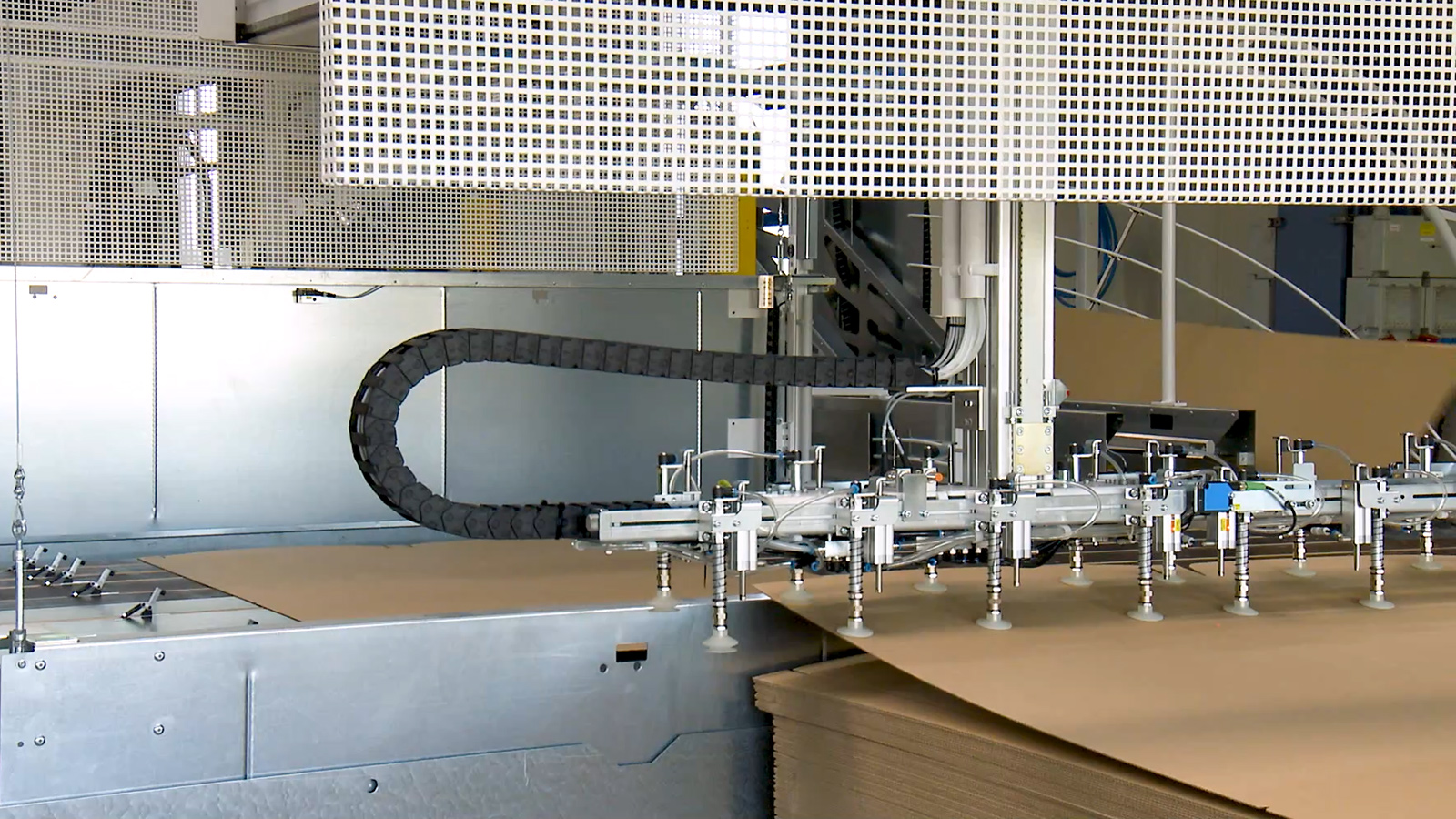

Cardboard separation and feeding is done on a folding bed.

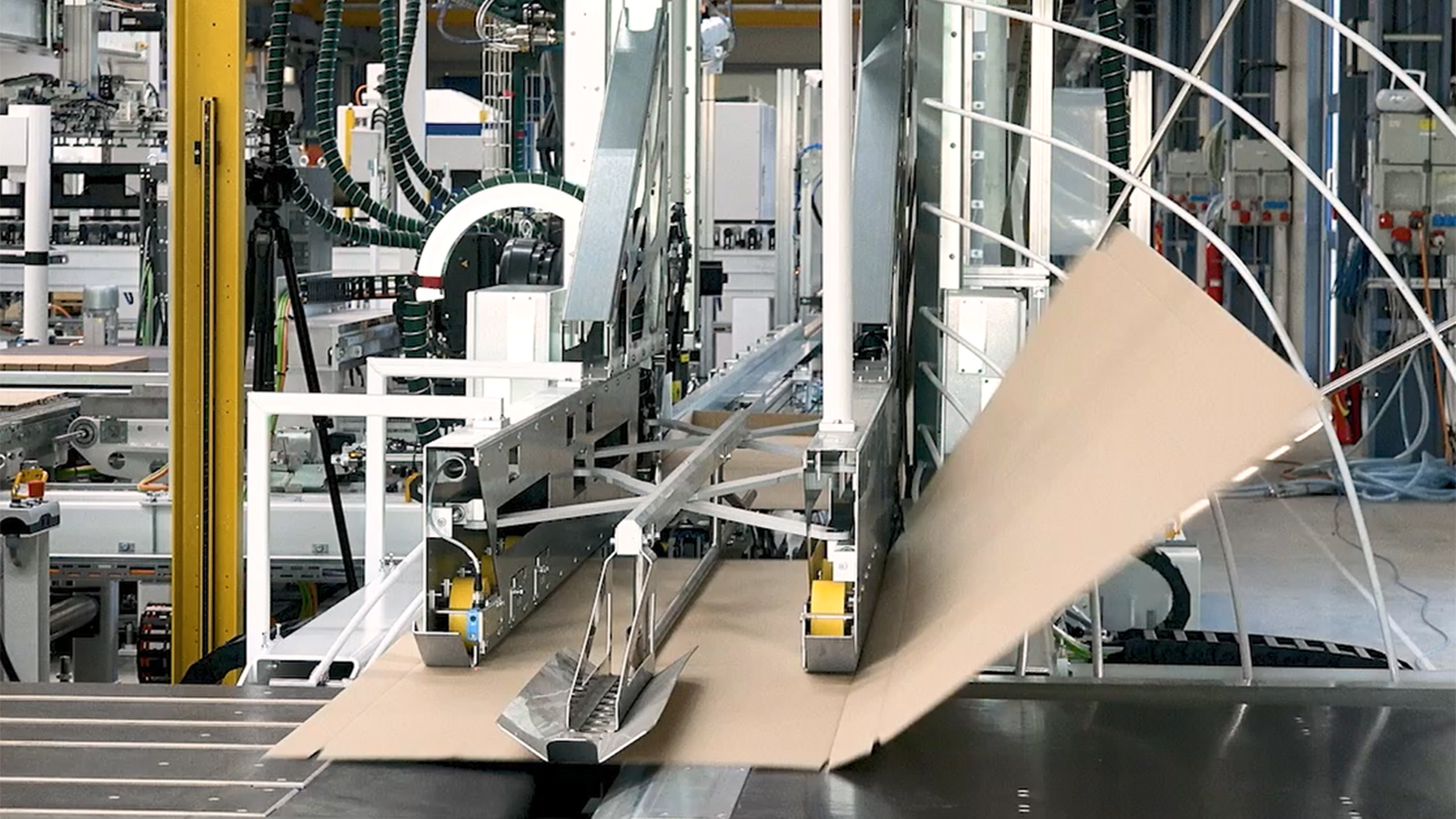

Rising the longitudinal flap and lid when feeding in punched and pre-embossed cardboard boxes. Fixing with vacuum suction cups.

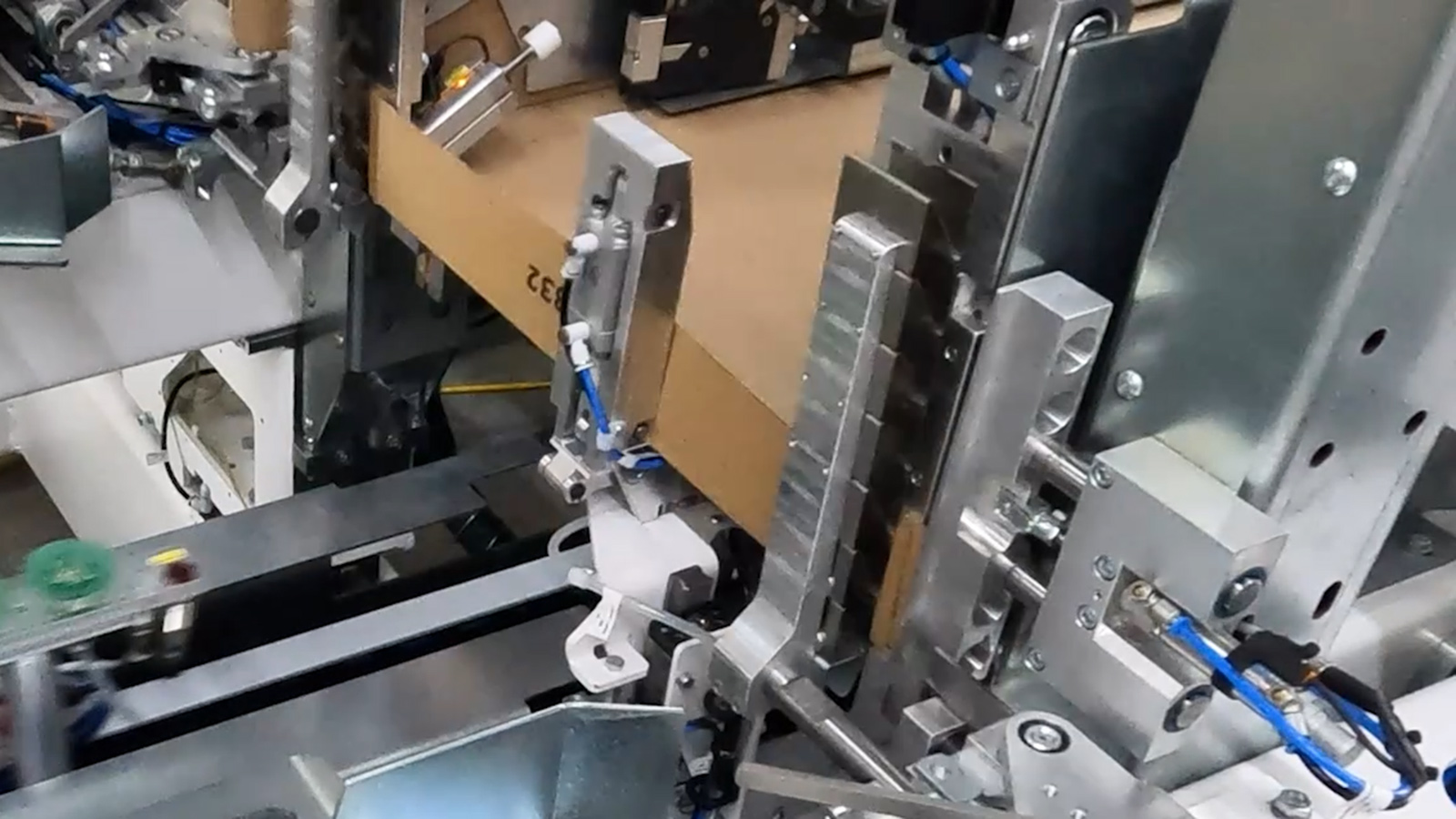

Folding and gluing the cross sides in two steps.
Features
-
Automatic folding and rising of cardboard sheets (Fefco types 0410 and 0453)
-
Processing of punched and pre-cut cardboards is possible
-
Transfer of the finished cardboards with vertical lid to a transport element
-
Perfect carboards – no more manual reworking
-
Ideal for series production
-
The changeover to other carboard sizes motor driven via the control system.
-
Up to 10 packages/minute
Technical Data
| Cardboard sizes (inside dimensions) | |
|---|---|
| Length (mm) | 380 - 2.500 |
| Width (mm) | 200 - 1.100 |
| Height (mm) | 32 - 250 |
| Cardboard quality | |
| Cardboard thickness (mm) | 2,0 – 7,0 +/- 0,2 |
| Cardboard quality according to DIN 55468 (mm) | 1-ply, thickness up to approx. 4.0 (quality 1.10 – 1.40) |
| 2-ply, thickness up to approx. 7.0 (quality 2.10 – 2.30) |
(Previous product name: VKF 120)
