CNC Machining Centers CENTATEQ P-210
CNC Machining Centers CENTATEQ P-210
Flexibility, configuration options and ease of use combined in one machine.
Small to medium-sized carpenters and joiners benefit from the versatility and performance of this series. The machine concept is based on compact technology and a reduced footprint. Solutions for processing kitchen, office and solid wood furniture as well as for staircase, window and door construction pose no challenge for this machine.
Highlights
Convenience package: Program start, pause, clear the work area or confirm after entering the scan area. Simply confirm by pressing a button directly on the portal housing.
Edge banding technology: Interchangeable easyEdge edge banding unit. The smart solution for edgebanding small volumes of veneer, ABS, PP, PVC, melamine and thin edges.
Freely configurable: 3-/4- and 5-axis spindle technology, up to 3 tool changing systems and drilling gear with optional attachment units. Mounted on a heavy-duty machine stand and with a moving gantry driven on both sides. Precise results for a lifetime.
Images
-
![]()
Maximum insight into the machine and at the same time optimal protection of the operators by large windows. Drill changes and service can be carried out easily from the front side of the machine. -
![]()
14-fold tool changer moving in X-direction Also for saw blades with a diameter up to 300 mm. -
![]()
Additional tool change magazine, with 10 slots and integrated tool transfer station, laterally mounted -
![]()
LED system – arguably the fastest and safest positioning system for consoles and clamping elements -
![]()
Automatically at the right place: The A-FLEX table -
![]()

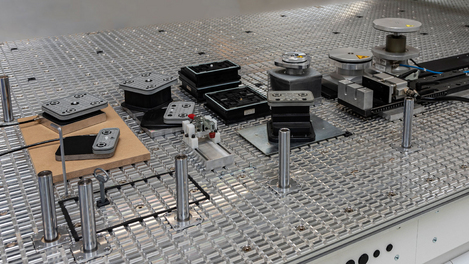

Versatile application: The MATRIX table -
![]()
Switch bar instead of foot switch – no searching and moving the foot switch – stops, output stroke rails and vacuum clamping can be activated easily -
![]()
powerTouch2 PC87 with full touch operation
Features
-
Always in the right position: Effective extraction with low connected load thanks to optimized chip collection and removal. The hood can be adjusted in stages or optionally by motor and automatically adapts to the workpiece thickness.
-
HOMAG drilling technology: High-speed drilling technology, clamping of the spindle and quick-change system for tools. Precise drilling, fast cycles, maintenance-free and durable design. Additional optional attachment units extend the machine's range of applications.
-
Spindle sensor: Milling spindles with hybrid bearings offer a long service life. An additional (optional) vibration sensor detects tool imbalances and protects the spindle from overloading, e.g. due to excessive feed rates.
-
Pneumatic interface: Patented interface with 3-fold support on all C-axes and optionally on the DRIVE5CS enables the use of traced units, e.g. for precise rounding at the top and bottom, regardless of thickness tolerances.
-
The right table for every application: aluminum grid table, console table with optional LED set-up aid or automatically positioning A-Flex table with an extensive modular system of clamping elements. This is what safe, flexible and convenient clamping looks like.
Technical Data
31 | 42 | 60 | |
|---|---|---|---|
| Workpiece length X – Individual processing [mm] (tool length 195 mm / with all aggregates) | 3,100 | 4,200 | 6,000 |
| Workpiece length X – Alternating processing [mm] (tool length 195 mm / with all aggregates) | 1,025 | 1,575 | 2,375 |
| Workpiece width Y [mm] (with tool diameter 25 mm / rear stop) | 1,550 | ||
| Workpiece width Y [mm] (with tool length 195 mm / with all aggregates / rear stop) | 1,345 | ||
| Workpiece width Y [mm] (Drilling / loadable workpiece / rear stop) | 1,600 | ||
| Workpiece thickness Z [mm] (from console) | 280 | ||
| Workpiece thickness Z [mm] (with clamping device H = 100 mm) | 180 | ||
Technical data and photographs are not binding in every detail. We reserve the right to make changes during further development.
Software
-
![]()
materialManager
All material data and stocks managed clearly in just one digital application
Central material management in the company
Integrated use of material data
-
![]()
productionManager
The digital job folder brings transparency to the workshop
Put an end to piles of paperwork
Job progress in real time
Here's how your colleagues produce
Brochures
Product Comparison
CENTATEQ CNC- processing centers
|
|
|
|
| |
|---|---|---|---|---|---|
| CENTATEQ P-100 | CENTATEQ P-110 | CENTATEQ P-210 | CENTATEQ P-310 | E-310 | CENTATEQ P-510|610 + E-510 | |
| Working field (length + width) [mm] | up to 3,250 / 1,600 | up to 6,000 / 1,550 | up to 6,000 / 1,600 | up to 6,000 / 1,900 | up to 7,400 / 3,250 |
| Working height (Z from console / table) [mm] | 65 | 260 | 280 | 300 | 500 |
| Spindle power max. [kw] | 13,2 | 13,2 | 18,5 | 18,5 | 18,5 |
| Maximum tool changing slots | 18 | 34 | 42 | 50 | 126 |
| Table versions | Console table 1-circuit vacuum system | Console table 1-circuit vacuum system Aluminum grid table | Console table 2-circuit vacuum system Aluminum grid table Console table A-Flex | Console table 2-circuit vacuum system Aluminum grid table Console table A-Flex Console table AP | Console table 2-circuit vacuum system Aluminum grid table Console table A-Flex Console table AP |
| Safety technology | Light barrier | Bumper 360° free + comfort scanner | Bumper + comfort scanner + safety scanner speedpack | Bumper + comfort scanner + safety scanner speedpack | Bumper + comfort scanner + safety scanner speedpack |
| Edge banding technology | - | - | easyEdge | powerEdge pro Duo | powerEdge pro Duo powerEdge pro Duo Inclined edge |
