CNC Gantry-Processing Center CENTATEQ N-700
The power pack among our nesting solutions
Our nesting machines enable cutting-optimized processing and dividing of plate-shaped materials. The typical applications of nesting are creation of carcass furniture, dividing and refining of furniture fronts, construction of frame furniture and creation of components for the caravan constructions and for the structural facings sector. Various possibilities for the automation of the material handling ensure a high time saving and an even more effective work.
(CNC Gantry-Processing Center Vantage 200)
Benefits
Panel dividing by nesting procedure
Configuration: 12 HP (9 kW) HSK routing spindle
14-fold tool changer (moving in X-direction)
MATRIX table with vacuum cups for extended processing freedom
2 CNC-controlled Z-axes for more stability and higher processing quality
Program-controlled extraction connection for an optimum extraction behavior and economic use of energy (ecoPlus)

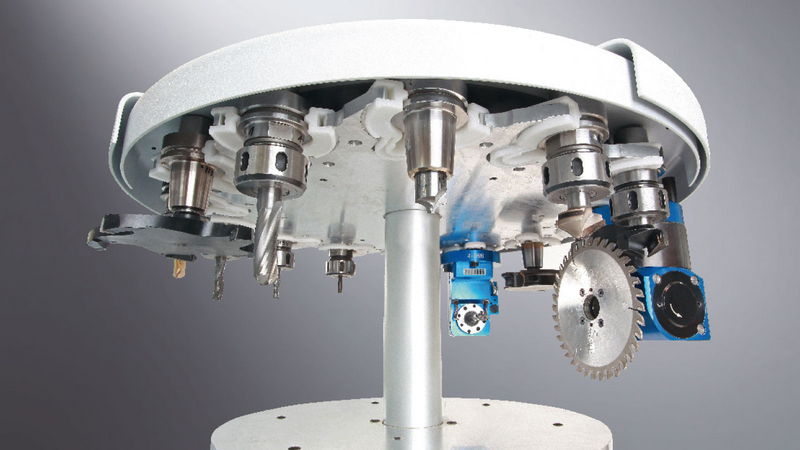

Tool changing system with 14, 28 or 42 places availablle

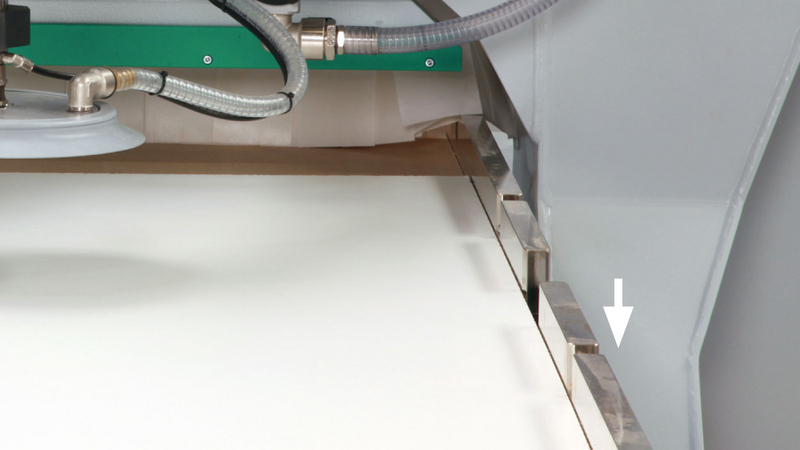

Lowerable fence for safe outfeed of workpieces
Features
Routing spindle selectable from 10 kW air cooled to 16 kW liquid cooled
Unit interface with C-axis and Flex5 unit
Drilling gear with up to 36 vertical and 6 horizontal drilling spindles and swivelling grooving saw
Tool changing system with 14 places (optional 28 or 42)
The whole working field is reachable with all processing tools
Software bundle for machine and PC (optional)
Electronic surveillence of all stops
Energy efficiency by high vacuum capacities with low power consumption
Low noise vacuum pump
Technical Data
| CENTATEQ N-700 | 510 | 512 | 612 | 710 | 714 |
|---|---|---|---|---|---|
| Working field width mm | ft | 1550 | 5 | 1550 | 5 | 1850 | 6 | 2250 | 7 | 2250 | 7 |
| Working field length mm | ft | 3100 | 10 | 3700 | 12 | 3700 | 12 | 3100 | 10 | 4300 | 14 |
| Working field height mm | inch | 100 | 3,94 | 100 | 3,94 | 100 | 3,94 | 100 | 3,94 | 100 | 3,94 |
| Vacuum capacity m³/h [Hz] | 580/690 50/60 | 580/690 50/60 | 580/690 50/60 | 870/1035 50/60 | 870/1035 50/60 |
Technical specifications are subject to change without notice!
