Panel dividing saw SAWTEQ B-300

Individually equipped single saw for trade and industry – for a wide range of cutting applications and ready for networked production.

High performance in a compact space is the strong point of the SAWTEQ B-300. This panel dividing saw is suitable for producing in batch size 1 as well as in smaller series and is ready for connection to automatic horizontal storage systems.

(Panel dividing saw HPP 300)

Benefits

Designed for smooth material flow and precise logistics process
Also suitable for networked production processes
The saw can be expanded to meet increasing requirements: many options can be retrofitted
Compact design, extremely rugged
Operational flexibility thanks to custom configurations

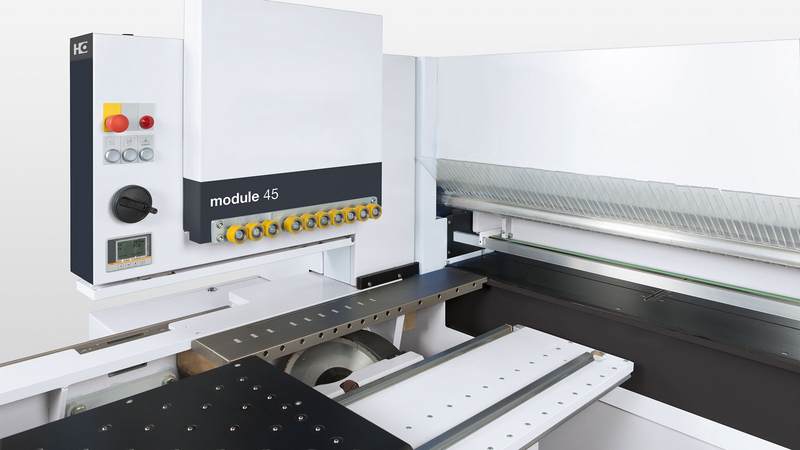

module45 – the cutting-edge option for precise bevel cuts

module45: rip, cross and bevel cuts all on one saw. Quick, simple, stepless adjustment for angles from 1 to 46 degrees (option).

The intuitive Operator Assistance System LED visually guides the operator through the processing steps by means of an LED light strip (option).

Fully automatic angle cuts thanks to automatic calculation and adjustment of the angle – fast, efficient and with maximum care of material (option).

combiTec saves material, time, money and manual work steps: due to automatic recuts during the regular cutting process (option).

Cut-out option for simple creation of cut-outs, much easier handling than on a slidingtable saw (option).

dustEx air jets transport dust and chips towards the right-angled fence: improves extraction and prevents scratches.

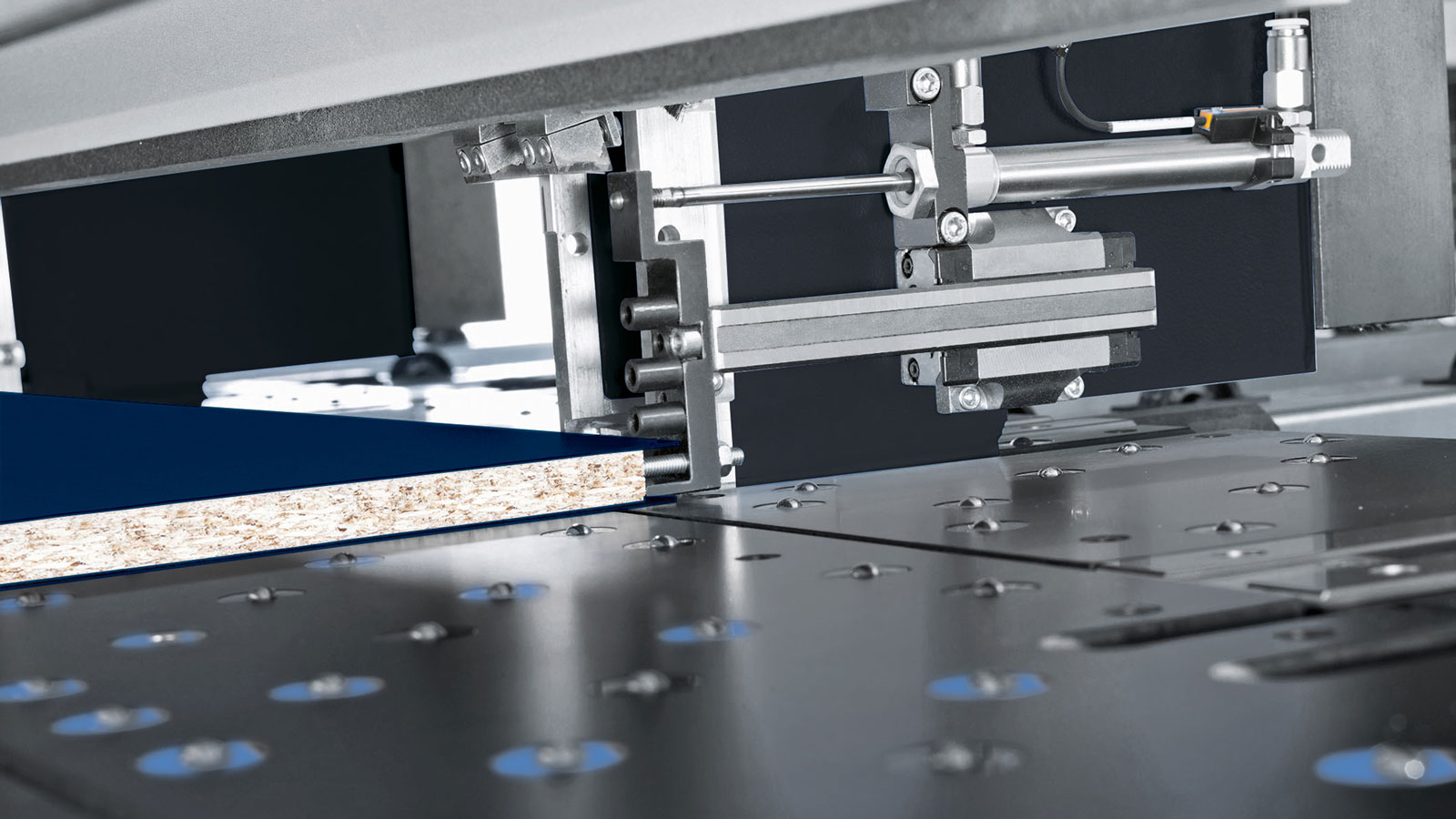

Pneumatically operated trim stops: for precise positioning and safe processing of sensitive materials (option).

The Power Concept PRACTIVE boosts output by up to 40 %, significantly shortens work cycles and reduces unit costs (option).

Turning device for headcuts: significantly increases performance with suiTable cutting patterns and reduces the amount of handling required (option).

The Power Concept PROFESSIONAL boosts output by up to 40 %, significantly shortens work cycles and reduces unit costs (option).

Any questions?
We are at your service!

Stiles Machinery, Inc.

+1 616 698 75 00 info[at]stilesmachinery.com Contact form

Technology Highlights

Dimensionally accurate program fence
Rugged pressure beam for first-class cut quality
Central side pressure device: integrated directly in the saw carriage, which shortens cycle times
Control software CADmatic 5
– Intuitively understandable
– Full HD widescreen multi-touch monitor
– Harmonized user interface powerTouch
– The new 3D assistance graphic supports the operator and is intuitive to operate
– Ready for connection to tapio
– Graphically supported diagnostics
Ergonomic table height of 920 mm

Technical Data

Saw blade projection	80 [mm] (95 [mm] as option)
Cutting length	3,200/3,800/4,300/5,600 [mm]
Program fence speed	90 [m/min]
Saw carriage speed	up to 130 [m/min] (150 [m/min] as option)
Main saw motor	11 [kW] (13.5 or 18 [kW] as option)
Operating software	CADmatic 5
