woodWOP CAM Plugin

Process 3D surfaces with woodWOP

This software module enhances woodWOP, creating a CAD/CAM system that lets you pro-cess 3D surfaces with 3, 4 and 5-axis interpolation depending on the machine equipment.

Benefits

WOP programming, CAD design and a CAM system combined in one software system
Simple, entry-level 3D programming solution
Can be used for 3-axis machines and up

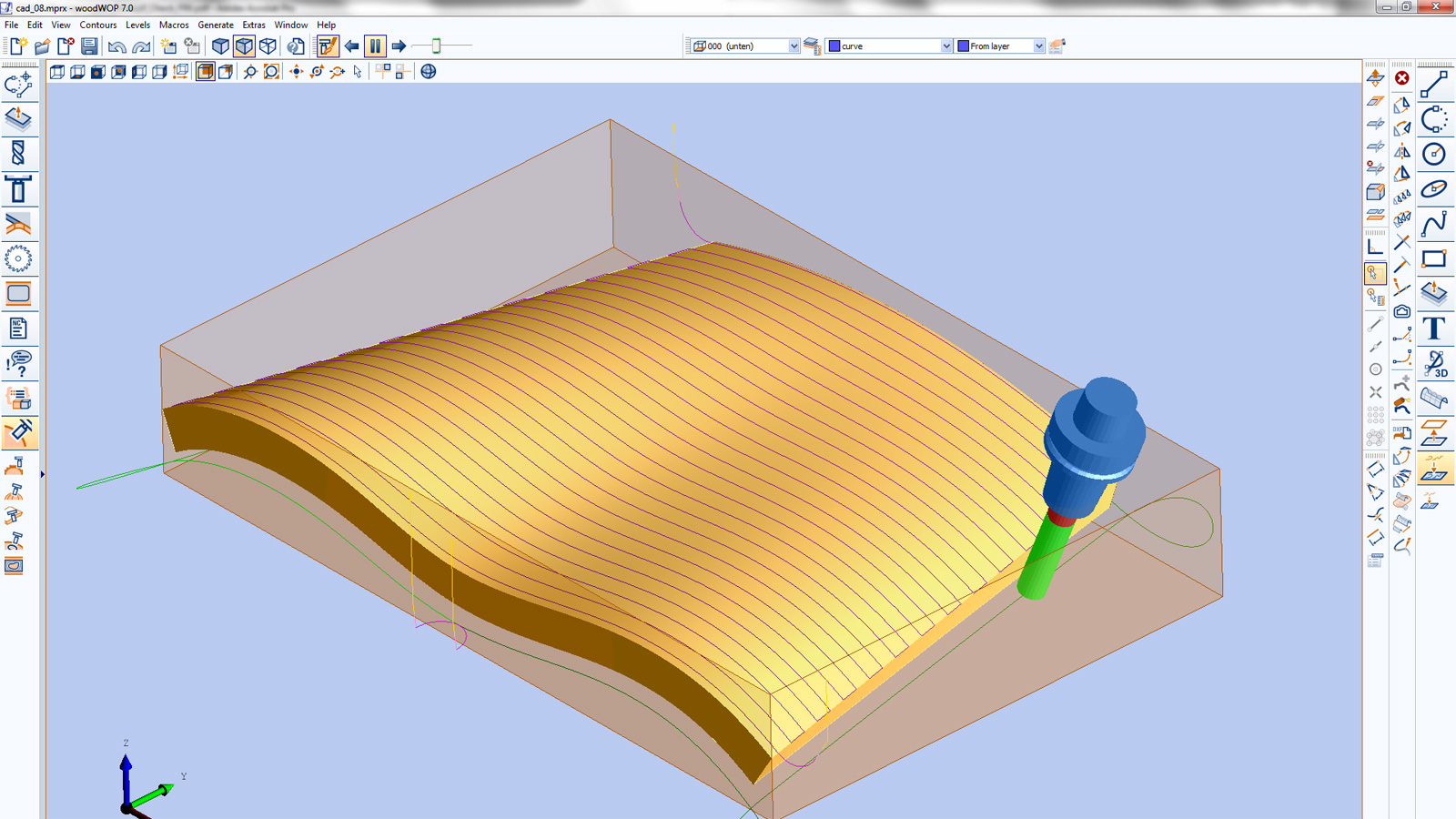

Automatic generation of milling path with woodWOP CAM-Plugin

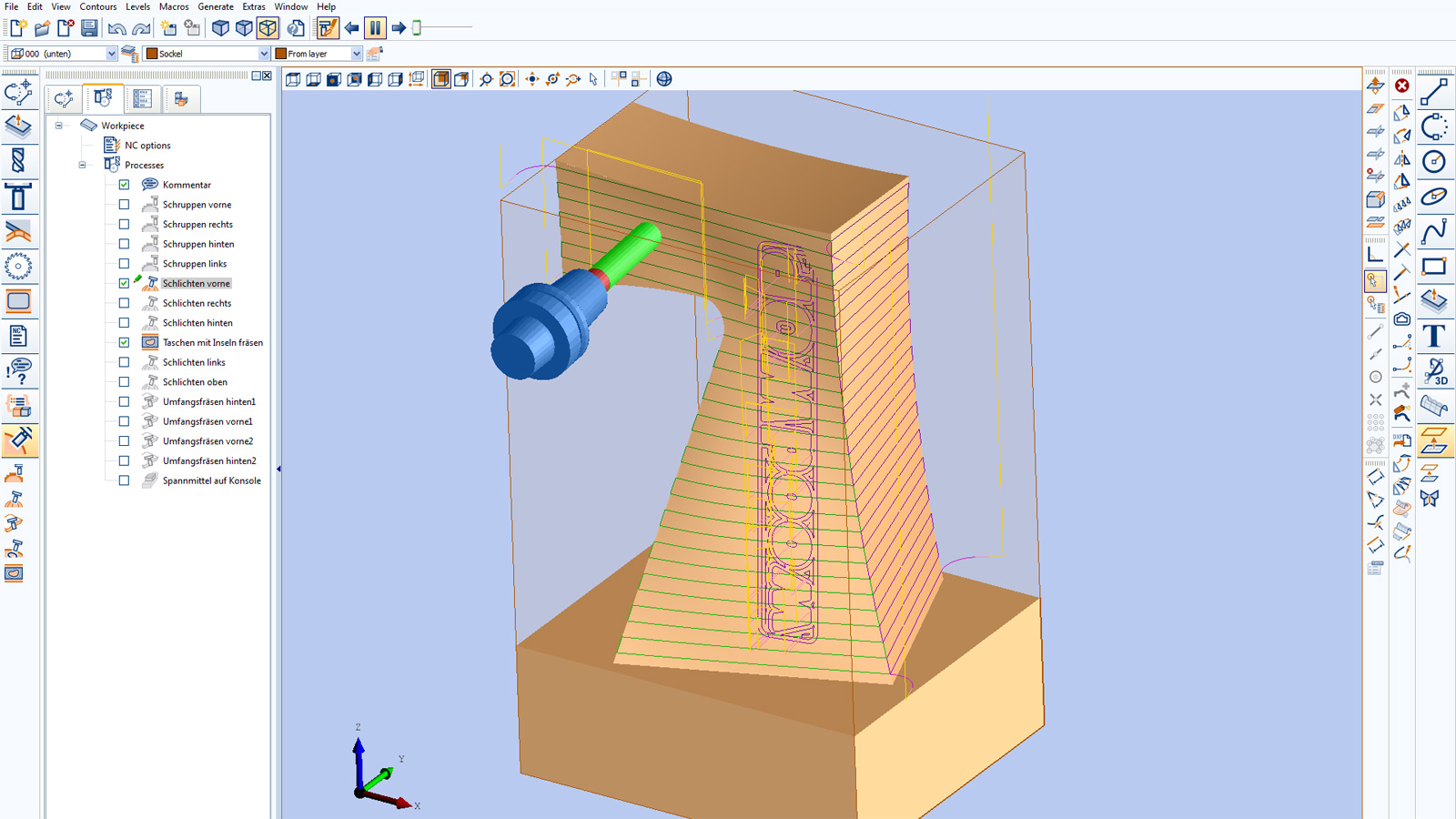

Roughing, finishing and pocket island milling

Automatic generation of milling path with the CAM-Plugin

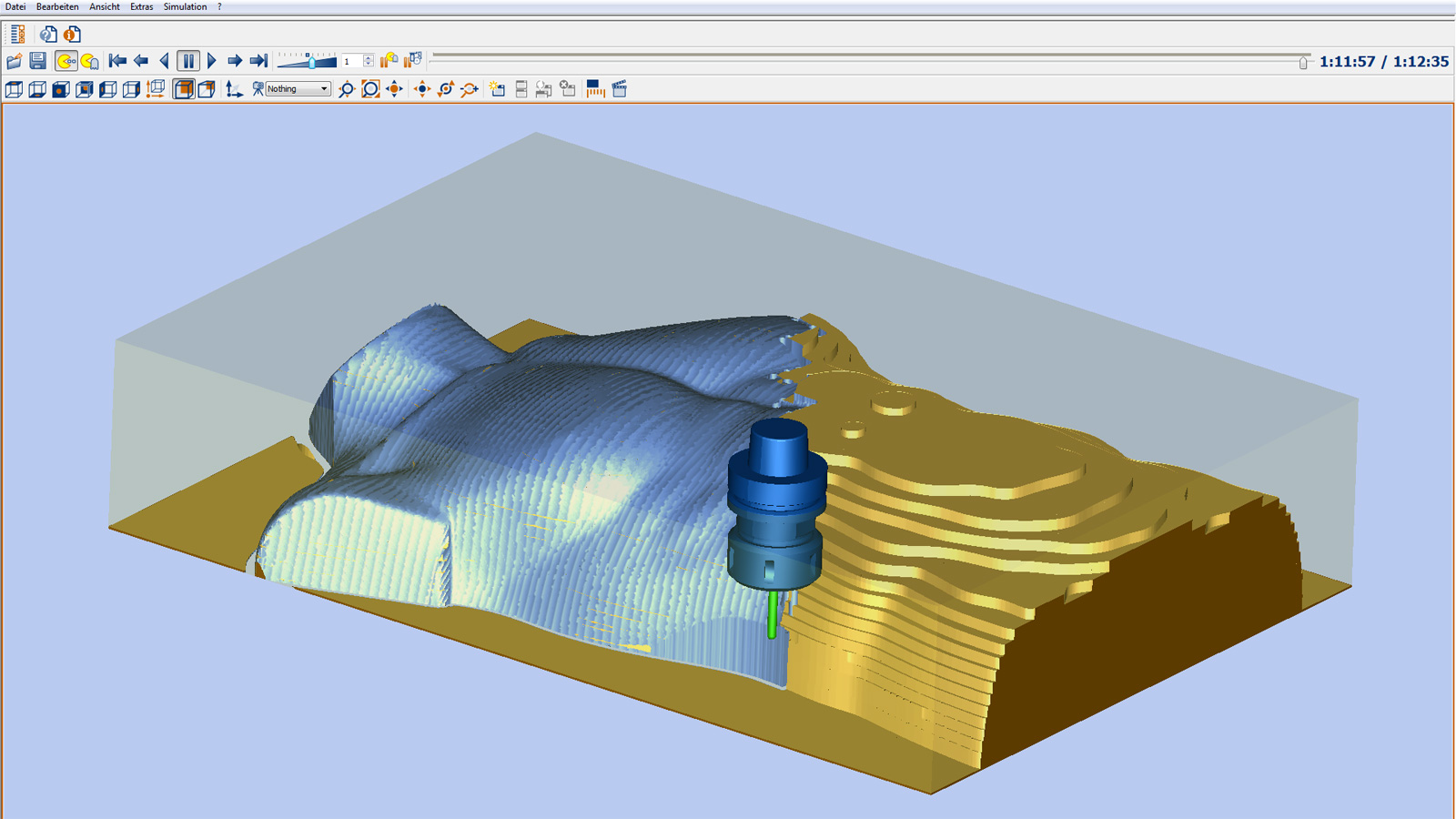

3-axis processing of a 3D workpiece

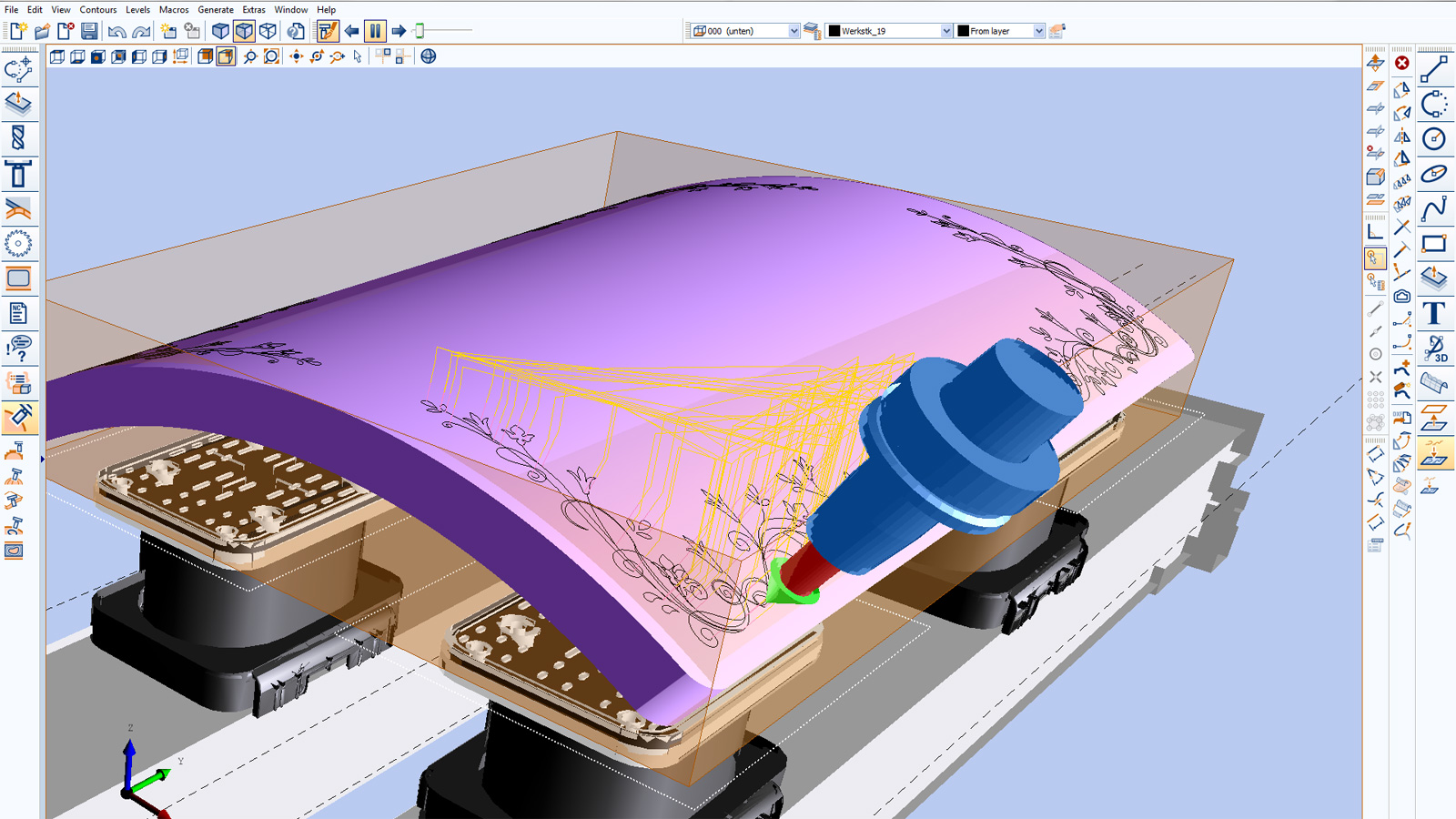

DXF engraving on a curved front

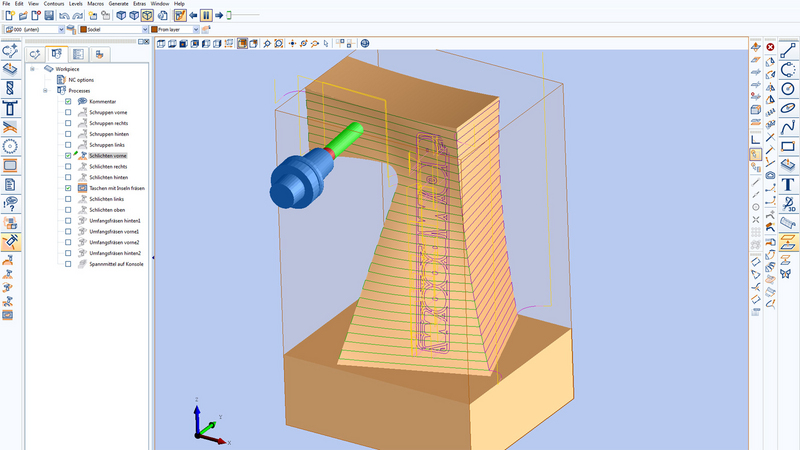

Roughing, finishing and pocket island milling

Features

Design 3D surfaces and import 3D models from external CAD systems
Automatically generate milling paths from 3-axis processing right through to interpolating 5-axis processing
Optimal work preparation when used in conjunction with woodMotion through processing simulations, including material removal, collision detection and time calculation
