Edge banding machines EDGETEQ S-300: 14 m/min feed speed
The high-performance mid-range solution
Is your entry-level machine stretched to its limits? Then it is time to take the next step with these machines. They feature multi-level technology for automated processing of different profiles, as well as a grooving unit or the latest zero joint technology offered by the airTec unit. The high level of automation of the units ensures short setup times and optimum ease of use.
(Edge banding machines Ambition 1400: 14 m/min feed speed)
Benefits

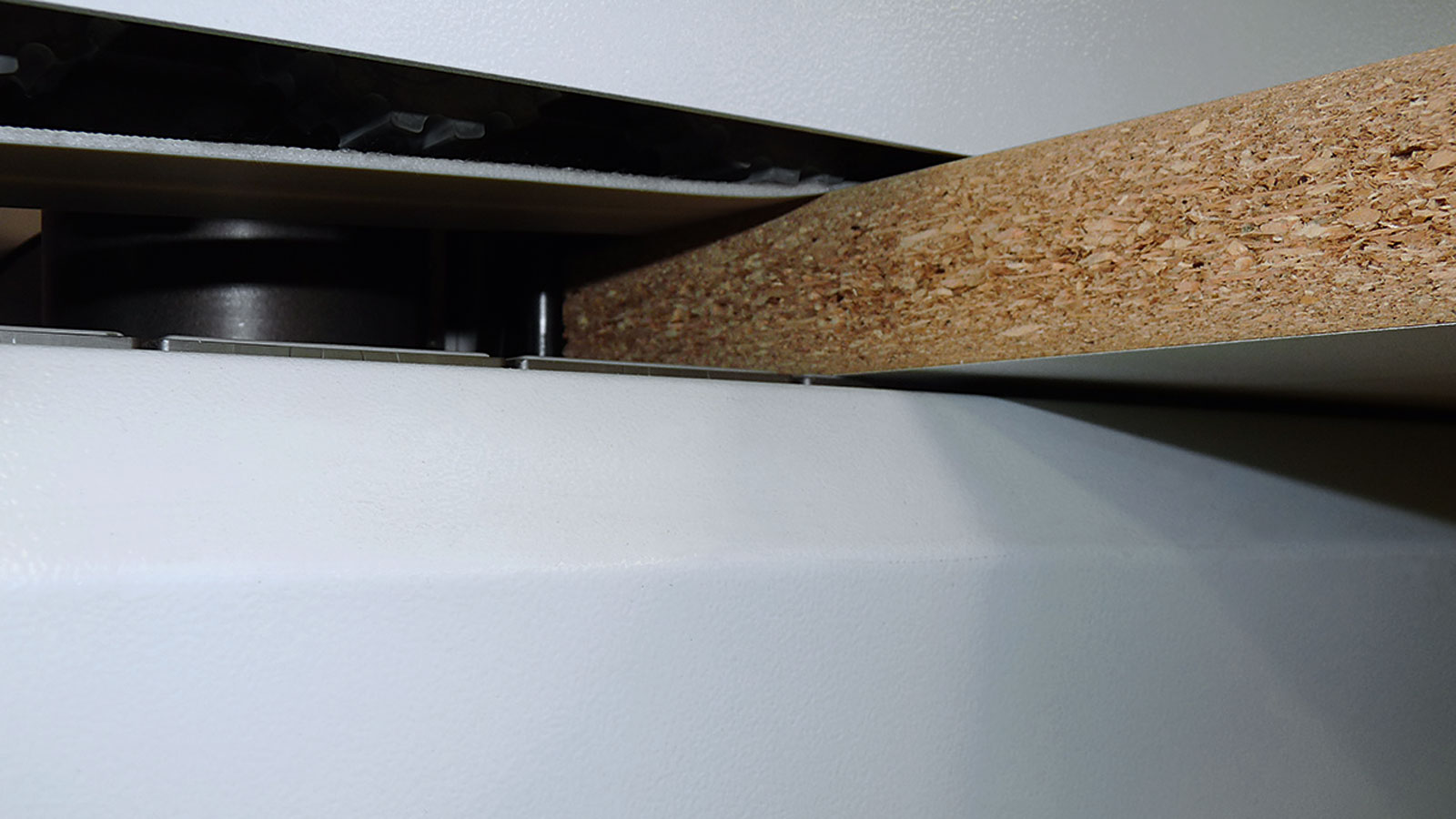

V-belt top pressure for outstanding quality, as it ensures that workpieces are ideally clamped for processing

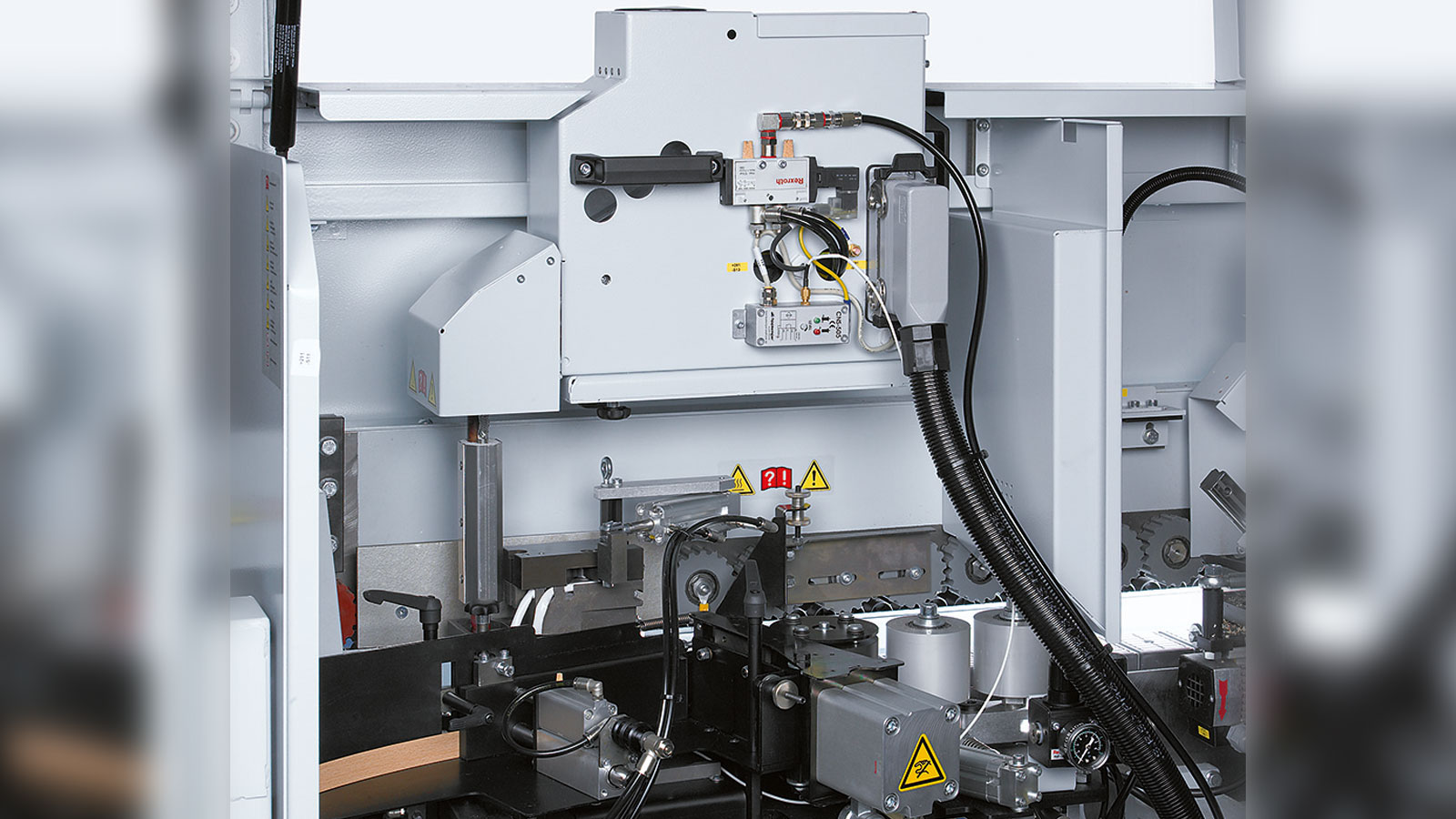

On-demand availability and perfect glue quality with Quickmelt

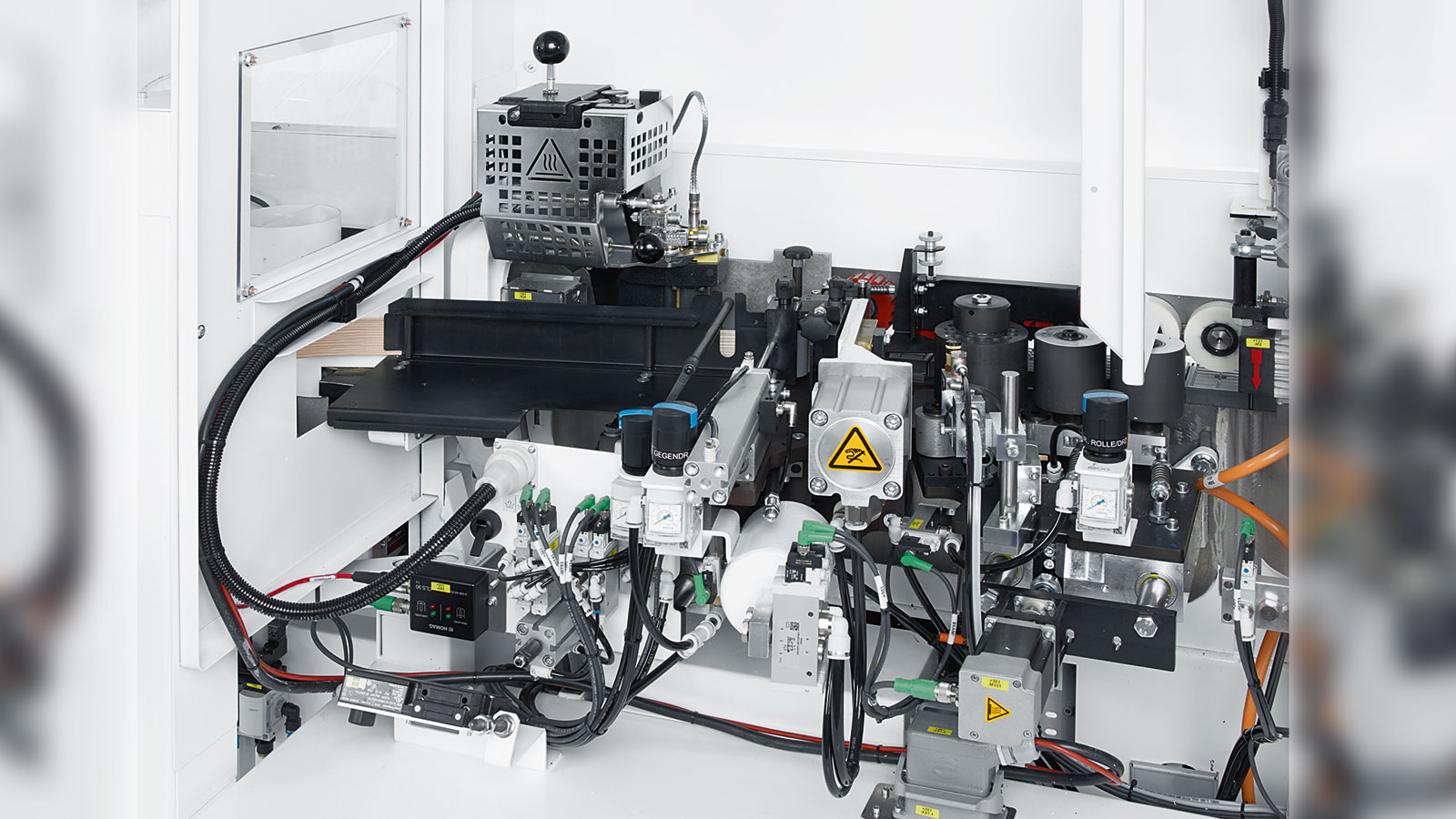

Glue application with glue roller and use of all types of glue, including PUR glue, for high flexibility.

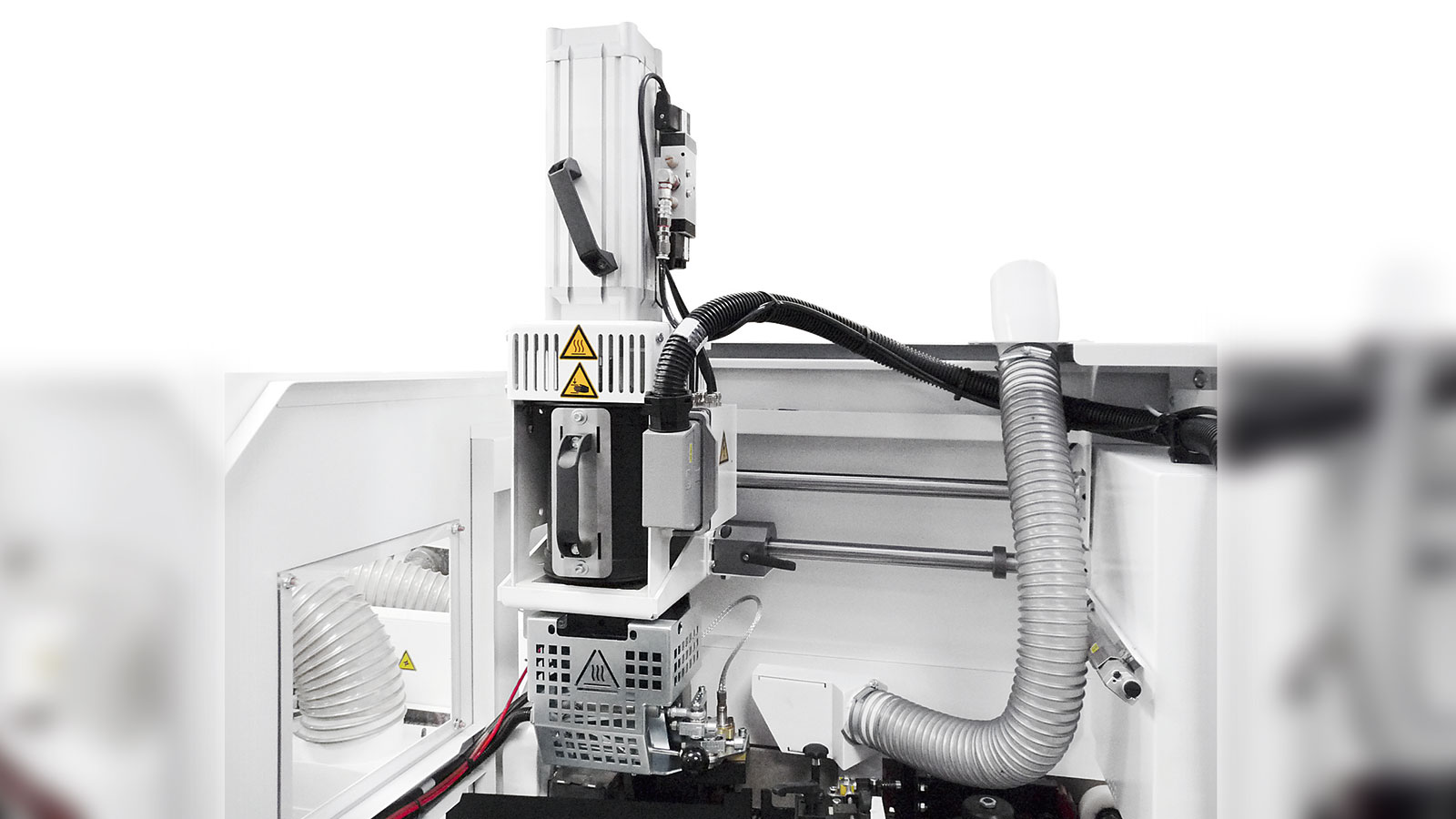

High availability and optimum glue quality thanks to PUR premelter
Precise end-trimming unit, equipped with THK guides. Chamfer/straight adjustment by easily tilting

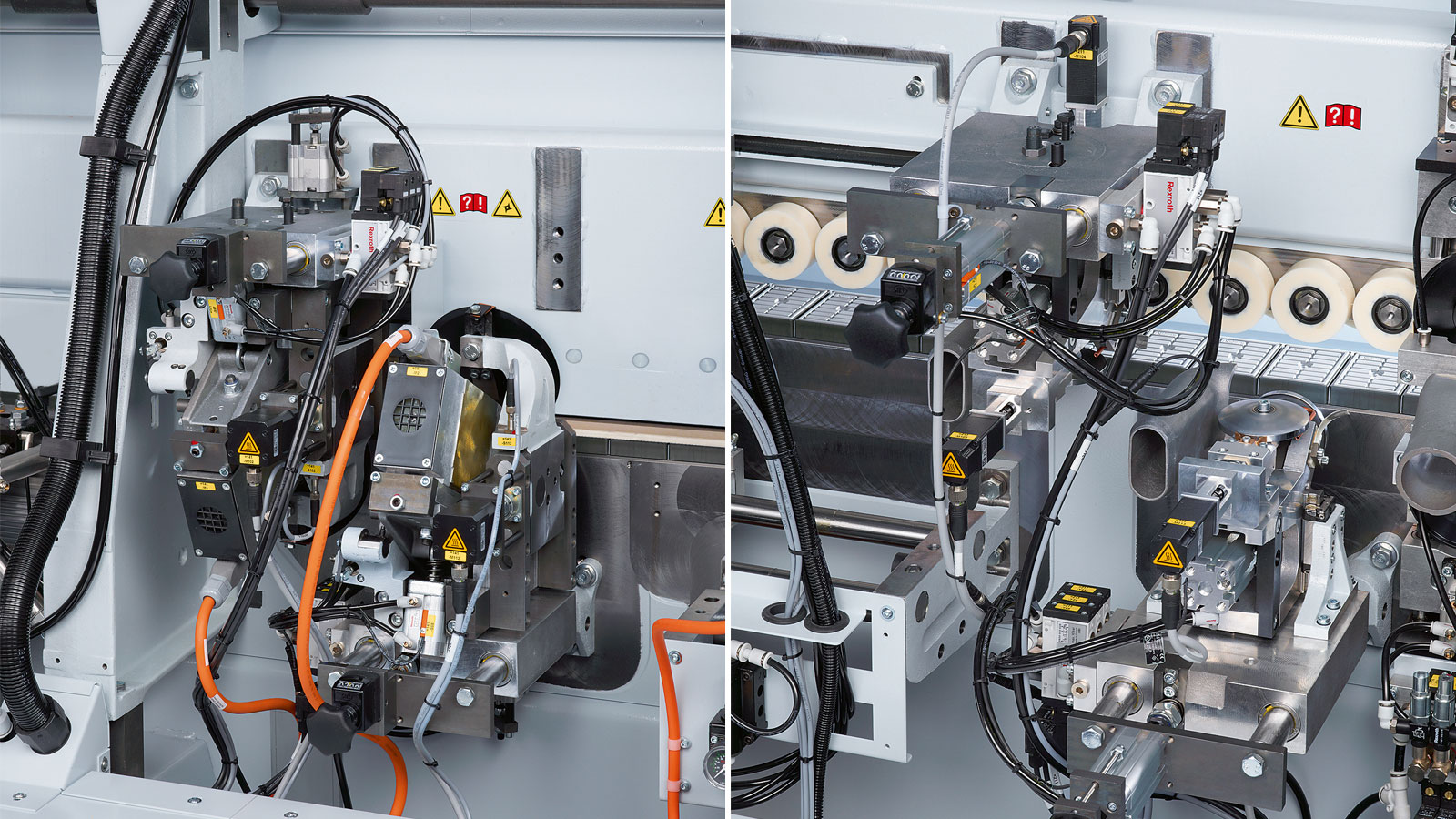

The multistage trimming and scraping units always offer the ideal radius and the best results

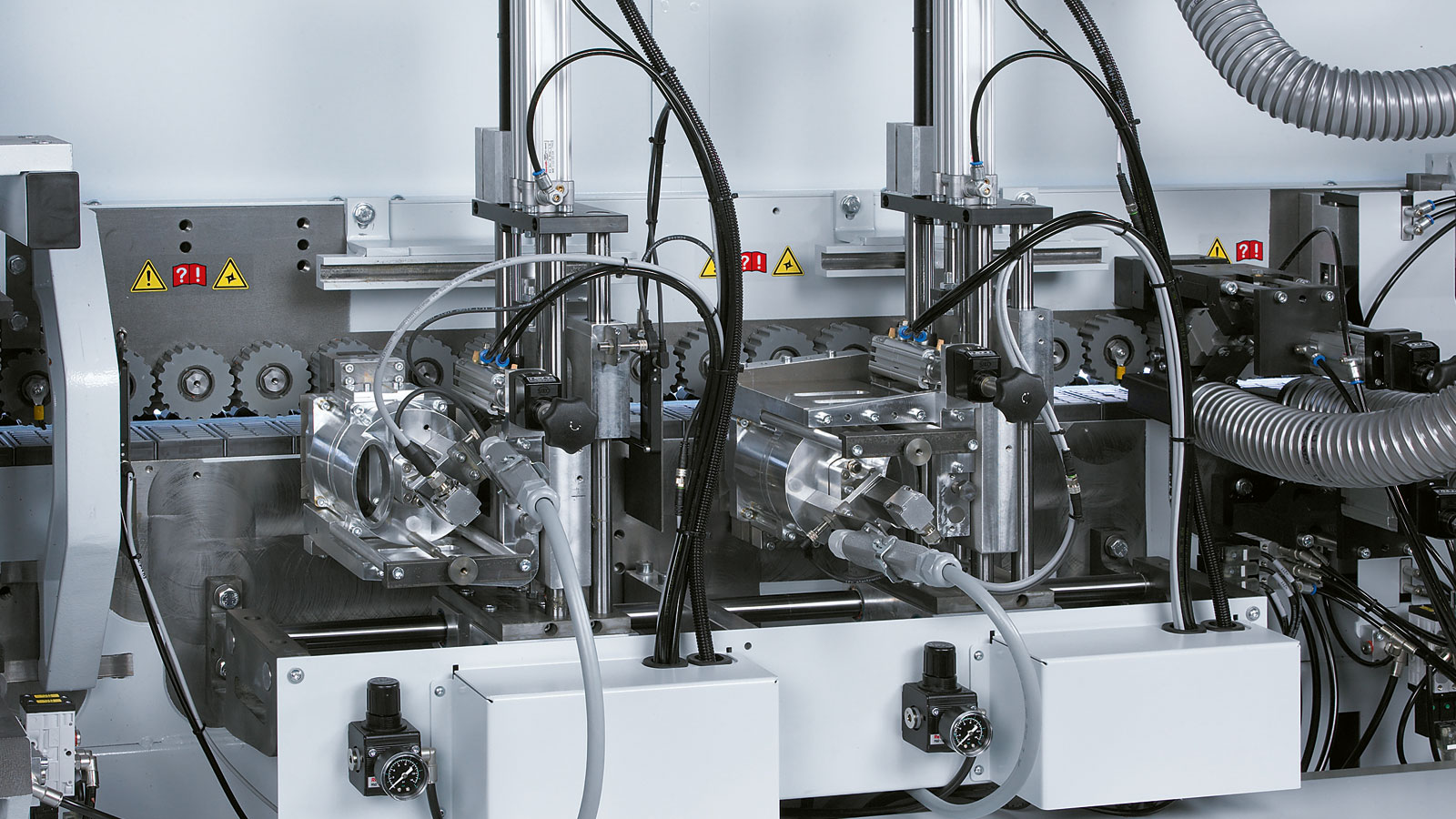

Trimming of the overhang on top and bottom side as well as contour trimming. Equipped with autom. adjustment to switch between thick and thin edges

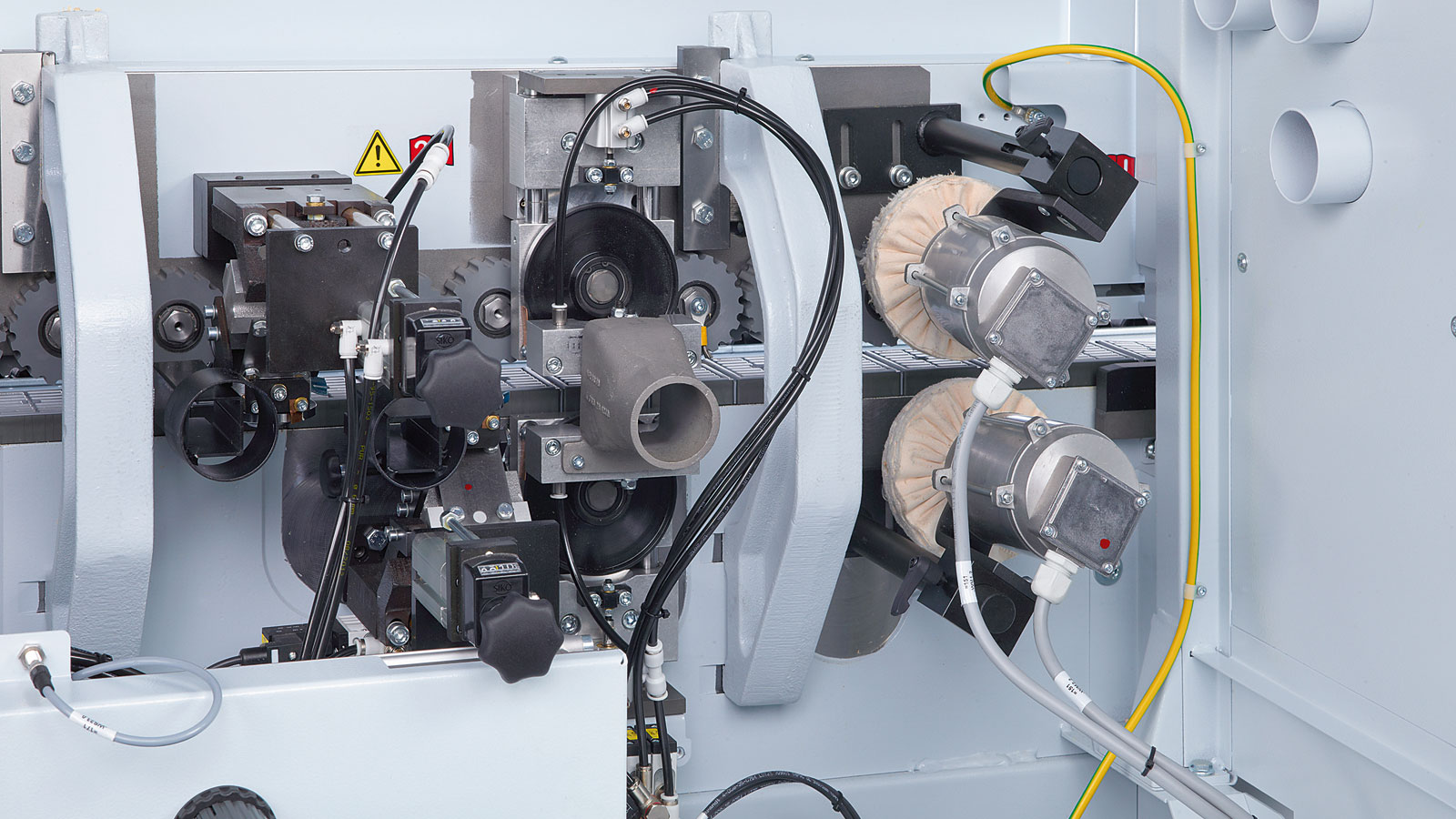

The quality of your products is increased by the use of perfectly coordinated finishing units
Features
Flexible glue application system for easy changing of the color and glue type (EVA, PUR)
Multifunctional profile trimming unit for corner rounding and flush trimming
Short setup times thanks to pneumatic adjustment of the units
Multi-stage technology for highly flexible use with changing materials
(As standard available at the edition-model)Zero joints with airTec for optimum joint-free finish
(As standard available at the airTec-model)
Technical Data
| model 1430 FC - 1450 FC | model 1440 AT | |
|---|---|---|
| Machine length [mm] | 4.773 - 6.062 | 5.573 |
| Workpiece width [mm] | ||
| in case of thickness 8 - 22 mm | 70 | 70 |
| Workpiece thickness [mm] | 8 - 60 | 8 - 60 8 - 40 (with airTec) |
| Edge thickness [mm] | 0,3 - 8 | 0,3 - 8 |
| Feed speed [m/min] | 8 - 14 | 8 - 14 |
| model 1440 E | model 1430 - 1440 HF | |
|---|---|---|
| Machine length [mm] | 5.573 | 4.773 - 5.273 |
| Workpiece width [mm] | ||
| in case of thickness 8 - 22 mm | 70 | 70 |
| Workpiece thickness [mm] | 8 - 60 | 8 - 60 |
| Edge thickness [mm] | 0,3 - 8 | 0,3 - 8 |
| Feed speed [m/min] | 8 - 14 | 8 - 14 |
