Panel saw SAWTEQ B-400 flexTec

Robot performance and operating

The innovation: SAWTEQ B-400 flexTec is equipped with an integrated robot and are technically capable of fully automated batch size 1 production over longer distances. Alternatively, the saw can be operated manually as usual – totally flexibly and as needed: for cutting books, for example.

(-)

Benefits

  • In robot operation: Highly efficient batch size 1 production with up to 800 parts per shift
  • Low unit costs per part
  • Partially unmanned operation
  • Extremely low error rates
  • In operator operation: Complete operating freedom in the cutting process
  • Maximum flexibility for cutting books of panels
HOMAG panel saw: SAWTEQ B-300-400 flexTec Parts buffer

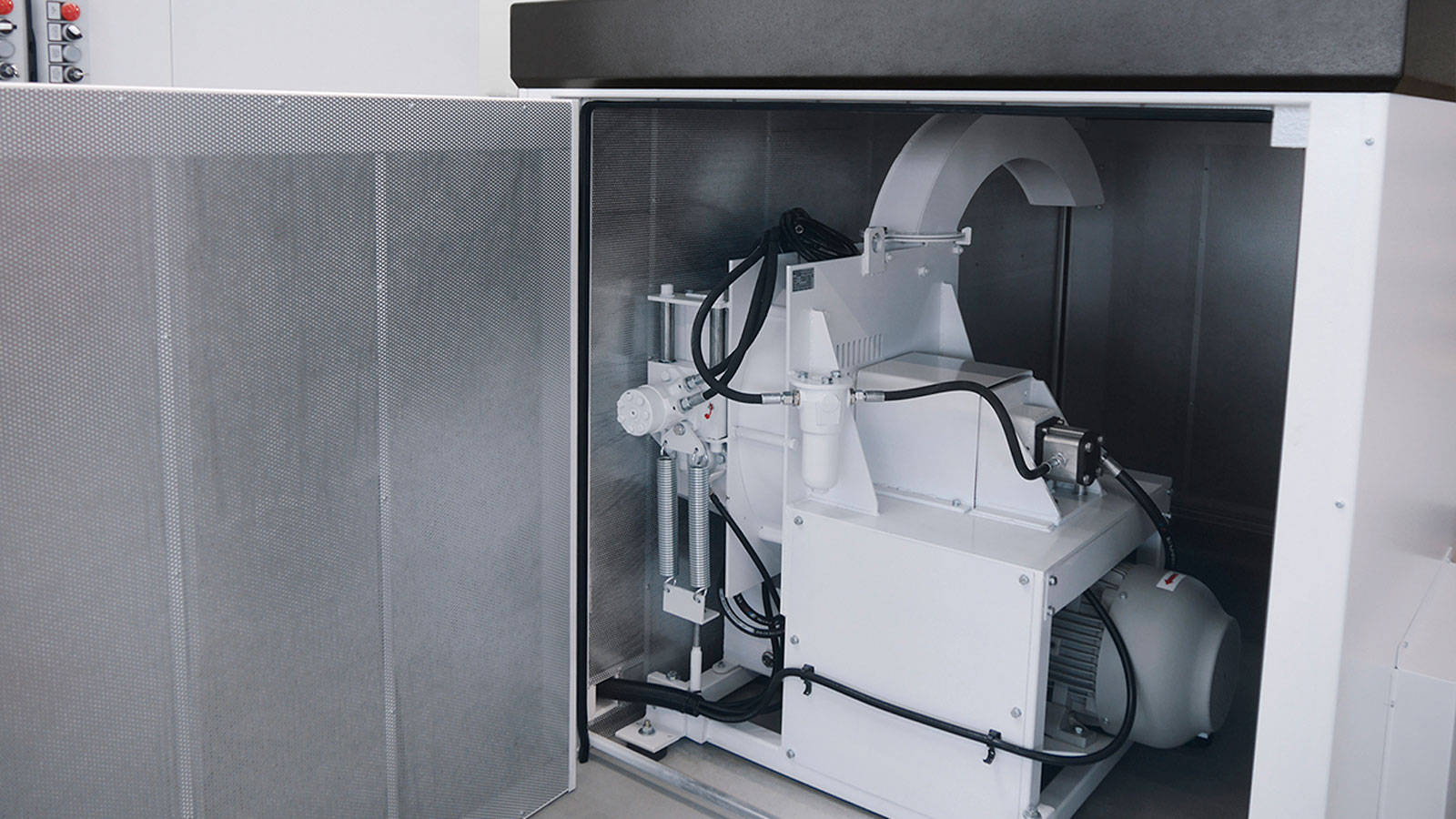

Compact, practical and quiet: a robust disk chipper connected to a waste container is at the heart of the automatic waste removal system. The system is completely encapsulated and housed in a soundproof cabinet.
HOMAG panel saw: SAWTEQ B-300-400 flexTec Automatic outfeed fence

Parts buffer – The system has a parts buffer directly above the pressure beam. This is where the robot temporarily deposits parts that are to be either destacked or fed to the saw again later.

Compact, practical and quiet: a robust disk chipper connected to a waste container is at the heart of the automatic waste removal system. The system is completely encapsulated and housed in a soundproof cabinet.

The Automatic outfeed fence pushes panel remnants from the rear machine table to the front. Included as a standard feature as it is essential for robot operation.

  • Robot with suction traverse – At the heart of these saws is a tried-and tested industrial robot with a specially developed suction traverse. The robot is responsible for all the handling of the panels, strips and parts. This is fully automatic, highly flexible, error-free and efficient.

  • Parts buffer

  • Fully automatic labeling

  • Fold-down air cushion tables – The gaps between the air cushion tables are each equipped with two fold-down tables

  • Automatic outfeed fence – Pushes panel remnants from the rear machine table to the front

  • Patented: central side pressure device

Saw blade projection

110 (125 as option) [mm]

Cutting length

3.800/4.300 [mm]

Processing height

920 [mm]

Saw carriage speed

up tp 130 (150 [m/min] as option)

Program fence speed

up to 90 [m/min]

Main saw motor

18 (24 as option) [kW]
Operating softwareCADmatic 5
