Carpentry Machine BEAMTEQ B-560

A range of processing applications at a high performance level

Featuring a 12-slot tool changer, the BEAMTEQ B-560 from WEINMANN supports a wide range of processing applications – from beam processing for timber frame and half-timber constructions, to roof beam processing. This machine processes beams at a high speed, giving you a throughput time that is up to 30% faster in comparison to the industry standard (depending on the product range).

(Carpentry Machine WBZ 160)

Benefits

Increased beam processing performance thanks to the high speed level
Opportunity to optimize your applications since enhanced usage options are available
Rapid installation on-site: The uniformly precise design of all machine components facilitates
Space-saving setup thanks to the compact design
Amortization within a short period of time

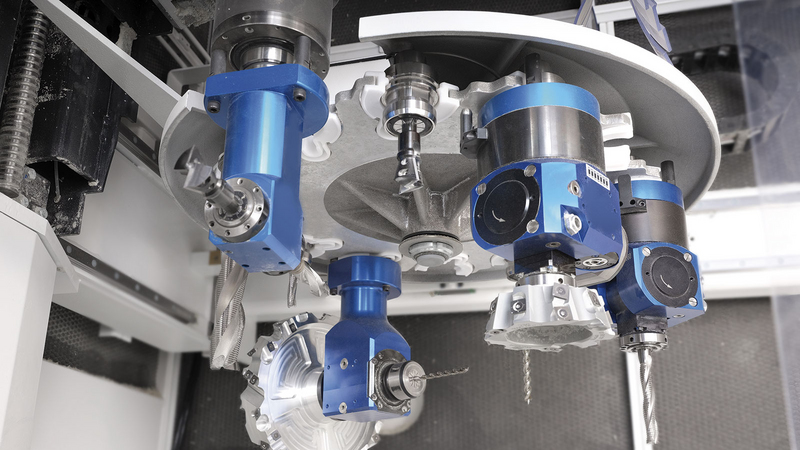

WEINMANN Carpentry Machine BEAMTEQ B-560 with tool changer

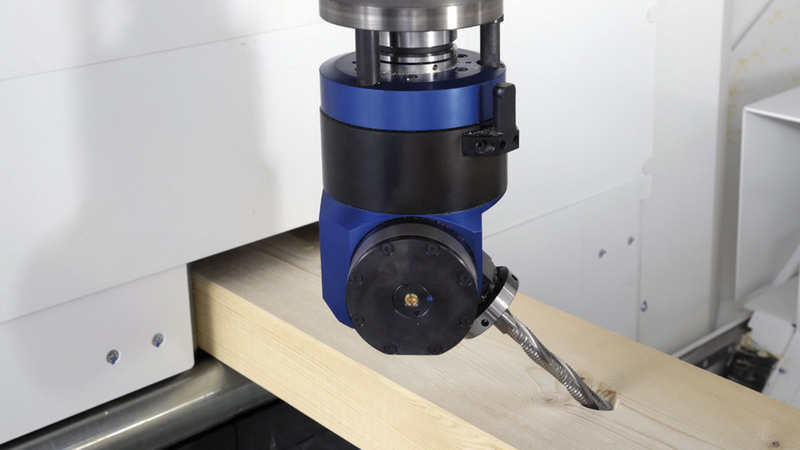

WEINMANN Carpentry Machine BEAMTEQ for hip rafter notch

WEINMANN carpentry machine BEAMTEQ with marking unit type ball point

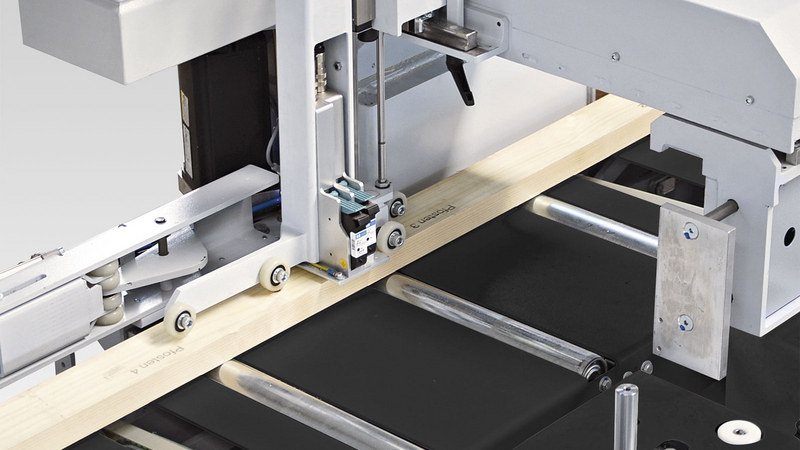

WEINMANN Carpentry Machine BEAMTEQ with Inkjet printer

Second integrated main spindle WEINMANN carpentry machine BEAMTEQ

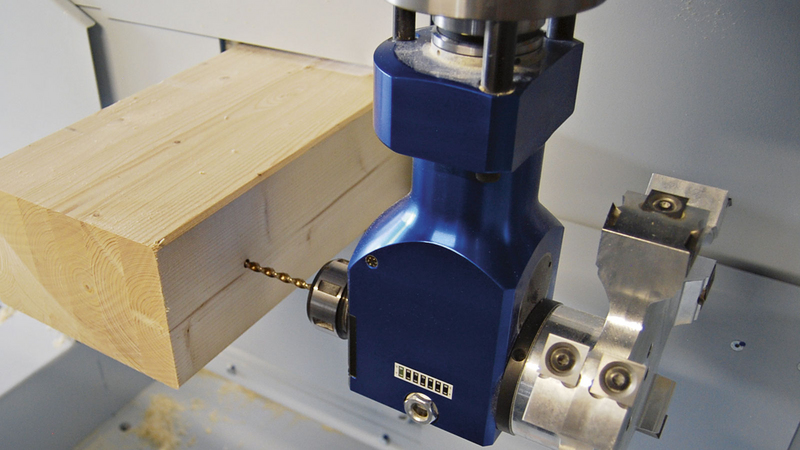

Horizontal drilling WEINMANN carpentry machine BEAMTEQ B-560

12-fold tool changer can be individually equipped

Production of hip rafter notch

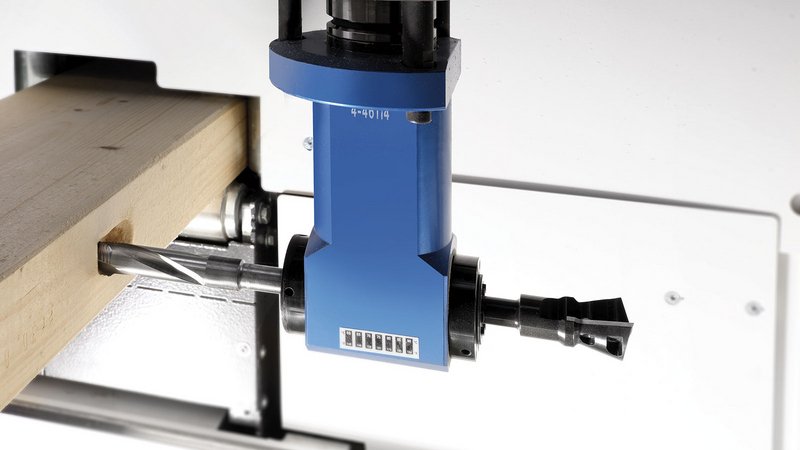

Also processings like drilling can be produced fully automated with the carpentry machine

Labelling and marking with the ballpoint pen

Inkjet printer for the labelling of the components

High processing speed thanks to the second integrated main spindle.

Horizontal drilling with the carpentry machine.

Features

5-axis technology for trimming, sawing and drilling
Higher performance levels available as standard: main spindle performance of up to 20 kW
12-slot tool changer and two integrated main spindles
FLEX5 sawing unit: A rotation angle of 0–360° in conjunction with a swivel angle of 0–90° allow you to process angled cuts, notches, rafter assembly cuts and rip cuts
High level of processing accuracy thanks to the NC gripper system combined with vertical and horizontal clamps
Reduced noise and dust emissions thanks to the fully enclosed machine housing

Technical Data

Min. cross-section	20 x 50 [mm]
Max. cross-section	200 x 455 [mm]
Min. unprocessed timber length	1,400 [mm]
Max. unprocessed timber length with intervention	16.5 [m]

All technical data are without engagement!
