Advantage through size is the motto of the SAWTEQ S-500 – an innovative, robust high-performance saw for mass producers.

The SAWTEQ S-500 boasts innovative technologies and a uniquely rugged design. The high saw blade projection of 150 mm, or even 170 mm, in itself ensures the tremendous panel cutting performance.

Benefits

  • Future-proof due to the use of state-of-the-art technologies
  • Easy to maintain, due to, for example, just small number of centrally located, easily accessible lubrication points
  • Minimum dust emission as a result of innovative extraction geometry
  • New saw carriage guide with self-adjusting running wheels – patent pending

Images

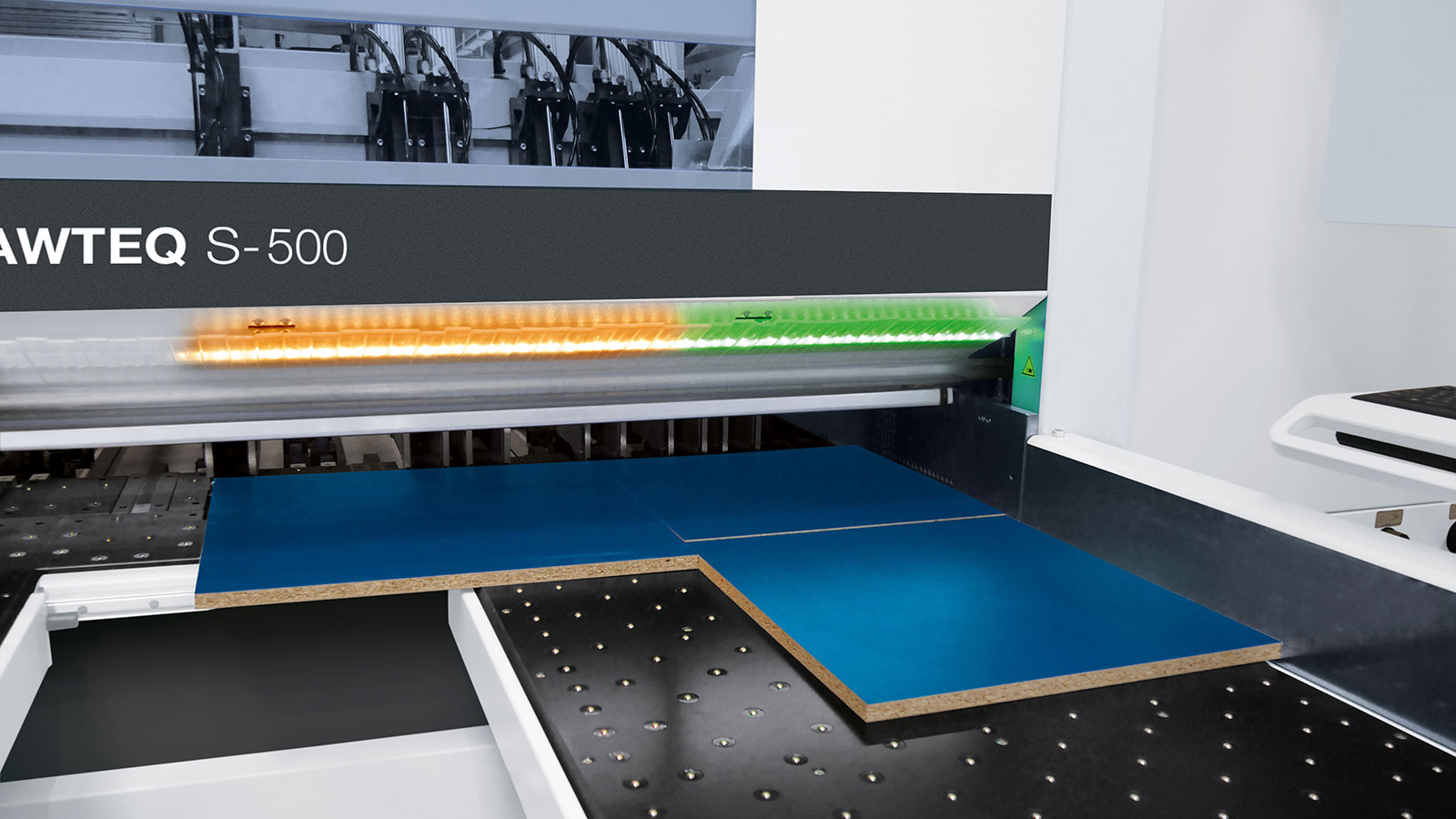

  • The intuitive Operator Assistance System LED visually guides the operator through the processing steps by means of an LED light strip (option).
  • Fully automatic angle cuts thanks to automatic calculation and adjustment of the angle – fast, efficient and with maximum care of material (option).
  • dustEx air jets transport dust and chips towards the right-angled fence: improves extraction and prevents scratches.
  • Pneumatically operated trim stops: for precise positioning and safe processing of sensitive materials (option).
  • The postforming unit ensures a chip-free cut for softforming and postforming panels (option).
  • The Power Concept Premium boosts output by up to 40 %, significantly shortens work cycles and reduces unit costs (option).
  • Turning device for headcuts: significantly increases performance with suiTable cutting patterns and reduces the amount of handling required (option).
  • Micro-feed units for thin panels work very precisely thanks to a non-contact measuring system and shorten the cycle times (option).
  • Camera-controlled scoring saw adjustment: adjusts the scoring saw fully automatically (option).
  • The panel labeling system saves time and guides the operator (option).

Features

  • Innovative pressure beam guide principle for long service life and lasting precision

  • Saw body made of SORB TECH – advantages over steel girder designs:

    – 10 times better vibration dampening
    – 20% higher sound absorption
    – 30% longer saw blade life
    – 40% lower consumption of primary energy during its production

  • Control software CADmatic 5
    – Intuitively understandable
    – Full HD widescreen multi-touch monitor
    – Harmonized user interface powerTouch
    – The new 3D assistance graphic supports the operator and is intuitive to operate
    – Ready for connection to tapio
    – Graphically supported diagnostics

  • Energy-saving positioning of the main saw blade by means of linear guide system with rocker

Technical Data

Saw blade projection [mm]150 (170 as option)
Cutting length [mm]3,200 / 3,800 / 4,300 / 5,600 / 6,500
Program fence speed [m/min]up to 90
Saw carriage speed [m/min]up to 130 (150 as option)
Main saw motor [kW]50 Hz: 30 (47 as option)
60 Hz: 35 (54 as option)
Monitor24" full-HD multi-touch display
Operating softwareCADmatic 5

(Previous product name: Panel dividing saw SAWTEQ B-500 | HPP 500)

Software

  • CADmatic 5

    • Simple, intuitive and ergonomic machine operation thanks to the 3D assistance graphic

    • quickTip—the assistance function for optimal machine settings—proactively makes setting recommendations

    • Reproduce parts easily, reliably and using a transparent process with the reproduction of parts option in CADmatic

    Read more

Here's how your colleagues produce

Show more

Videos

Please confirm that when you use YouTube, data such as your IP address, browser identifier and similar may be transmitted to Google.


» Privacy Policy

Material in Bewegung – Lager, digitale Assistenzen und weitere Features

Die Gesamtlösung von der Beschickung bis hin zur Abstapelung

Brochures

Product Comparison

Single saws for cutting


  SAWTEQ S-100 SAWTEQ S-200 SAWTEQ S-300 SAWTEQ S-400 SAWTEQ S-500
Cutting length [mm]3,200 | 3,800 | 4,3003,200 | 3,800 | 4,3003,200 | 3,800 | 4,300 |  5,6003,200 | 3,800 | 4,300 | 5,6003,200 | 3,800 | 4,300 | 5,600 | 6,500
Saw blade projection [mm]6565 (optional 80 or 95)80 (optional 95)110 (optional 125)150 (optional 170)
Program fence speed [m/min]up to 60 up to 80up to 90up to 90up to 90
Saw carriage speed [m/min]up to 60 up to 80 (optional up to 120)up to 150 (optional 170)150 (optional up to170)up to 130 (optional 150)
Left handed machine possible--
