CNC-Processing Center DRILLTEQ H-308 | H-310

Two in one. 6-sided processing.

By feeding two work fields at the same time, the DRILLTEQ H-308 offers virtually two machines in one. While production is running on one work field, the workpiece can already be prepared for seamless further processing on the second. This guarantees high availability and highly flexible production. The machine running time can be extended up to almost 75%. Work interruptions such as breaks or downtimes are reduced to a minimum. Whether flexibility for high variant diversity through batch size 1 production or efficiency through series production – the DRILLTEQ H-308 offers the right solution for you.

Product available only in Bangladesh, Bhutan, Brunei, Cambodia, China, Hong Kong SAR of China, India, Indonesia, Japan, Malaysia, Myanmar, Pakistan, Philippines, Russia, Singapore, Sri Lanka, Thailand, Vietnam.

Benefits

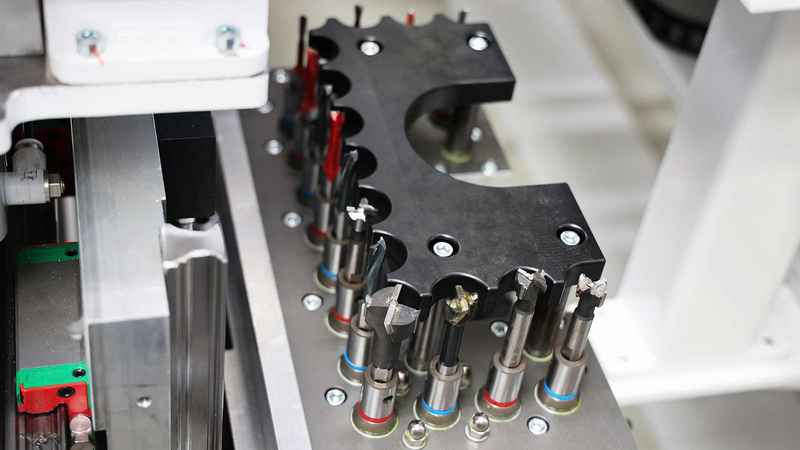

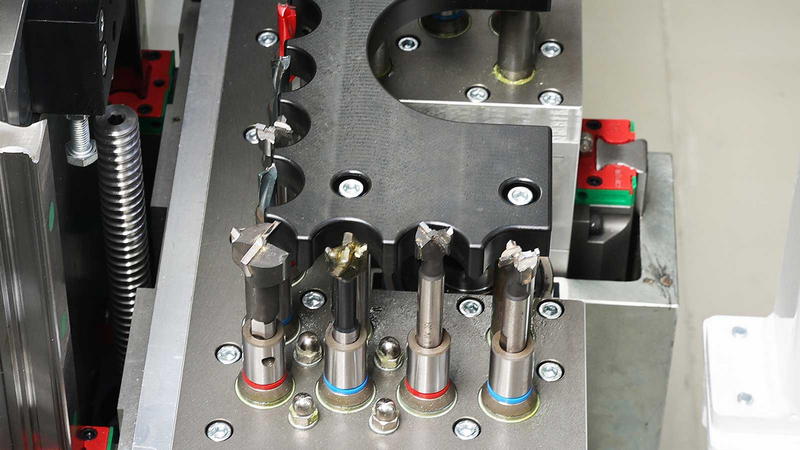

  • Routing and Drilling units perform in highspeed. 6 sided-processing along 2 working fields

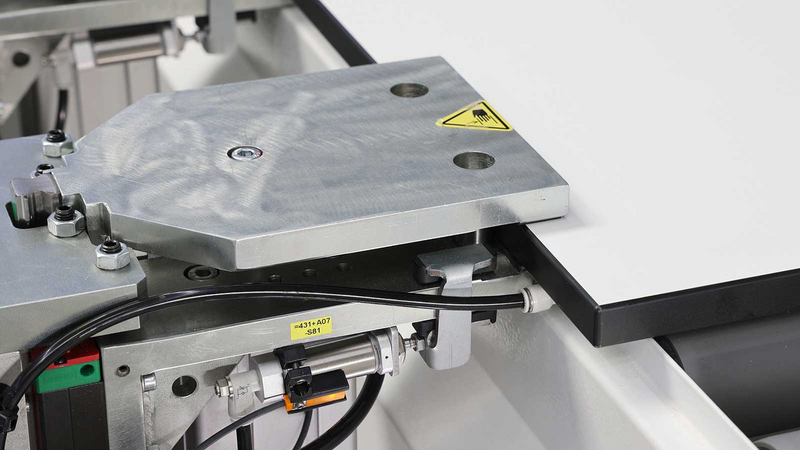

  • 4 CNC-controlled clamping devices ensure permanently firm and precise positioning of the workpieces – regardless of the speed
  • Even workpiece dimensions of length 250-2500 and width 60-1250 mm (2 x 620 mm) are easy to handle
  • The patented spindle clamp ensures an always accurate drilling depth for all drilling
  • The closed straight guiding system is protected against dust and dirt and thus very durable

Footprint without Switch Cabinet
Lmm5.910
Wmm3.900
Hmm2.530
Workpiece dimension
Lengthmm250 – 2.500 (3.050)
Width (single part)mm60 – 1.250
Width (double parts)mm2 x 620
Heightmm8 – 40

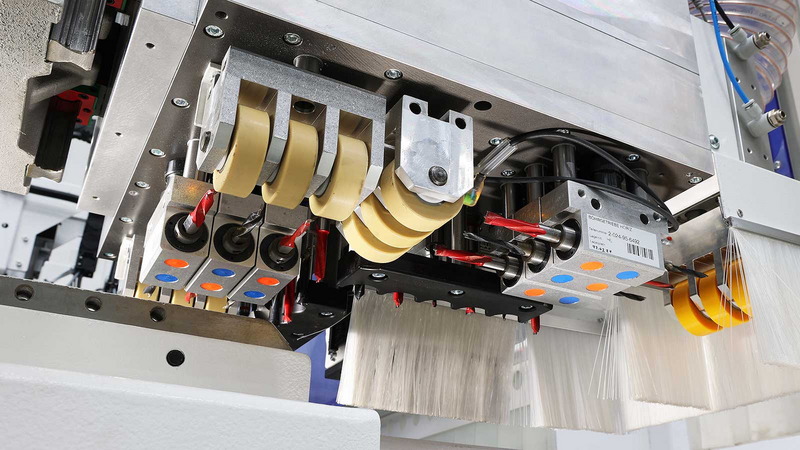

Drilling Head TOP 1 & 2
Vertical spindlesNo.2 x 13
Vertical spindle clampingpatentedYes
Horizontal spindles in X+/X-No.2 x  (3X+/3X-)
Horizontal spindles in Y+/Y-No.2 x  (3Y+/3Y-)
Frequency controlledRPM1.250 – 7.500
Drilling Head Bottom 1
Vertical spindlesNo.14
Vertical spindle clampingpatentedYes
Frequency controlledRPM1.250 – 7.500
