Robot insert station PAQBOT I-300 | HOMAG

Robot Solutions for the Furniture Industry PAQBOT I-300

Robot Solutions for the Furniture Industry PAQBOT I-300

Insert station with robot for automatic filling of cardboard-boxes

The safe robot handling works with a very high repeatability on continuous speed - and that space saving. Where elsewhere employees lay workpieces into passing cardboards at a transport distance in monotonous movements, here, the insert station PAQBOT I-300 plays its full strength. The perfect solution for anyone who packs furniture parts.

Benefits

  • Fast, dynamic, and easy to integrate into the running operation
  • Perfectly between cardboard folding machine and carton closure machine
  • Can be integrated into almost every packaging concept
  • Availabilities of nearly 100%
  • Personnel will be released from monotonous work

Images

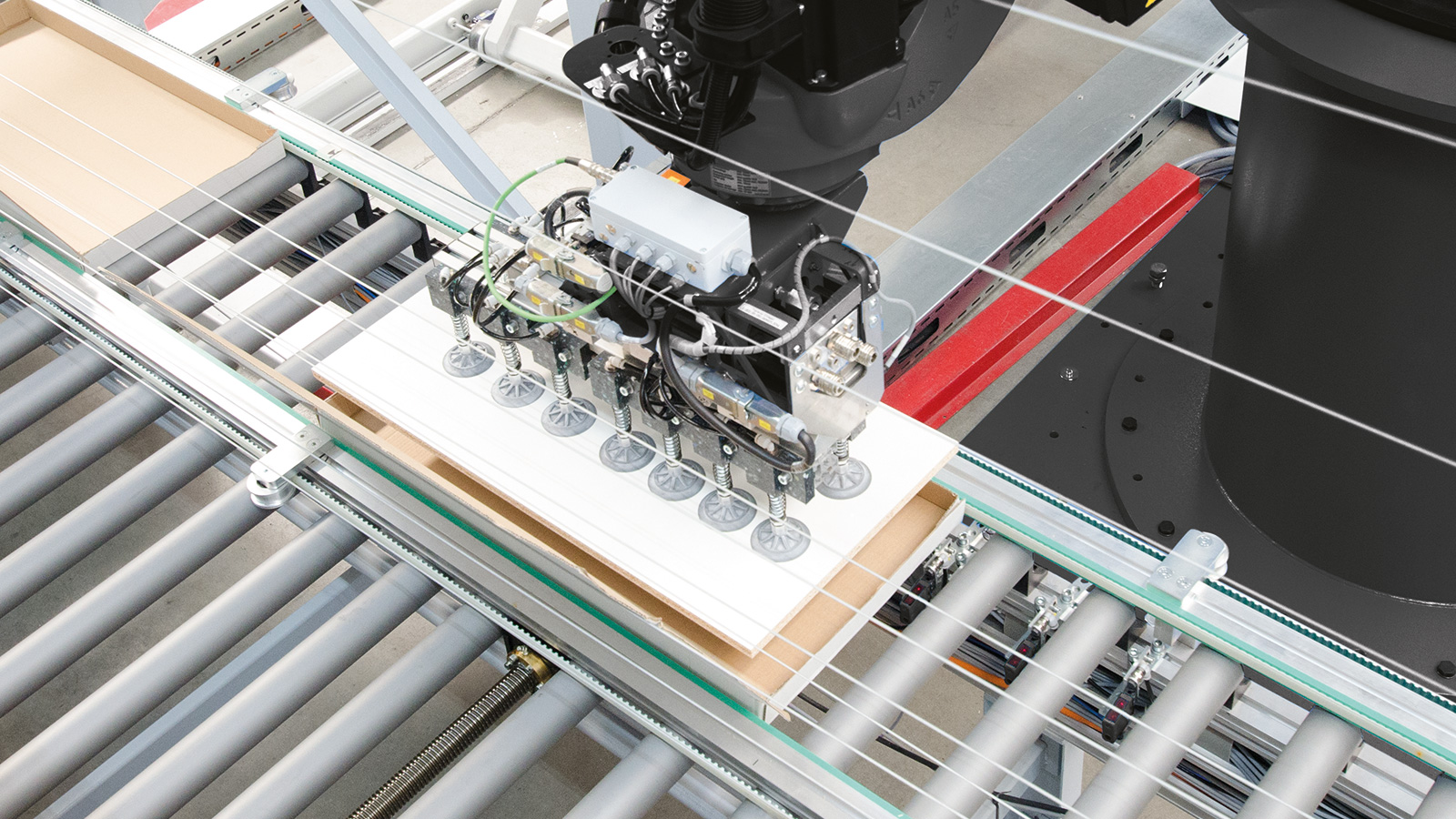

  • Automatic insertion of individual parts into cardboard-boxes.

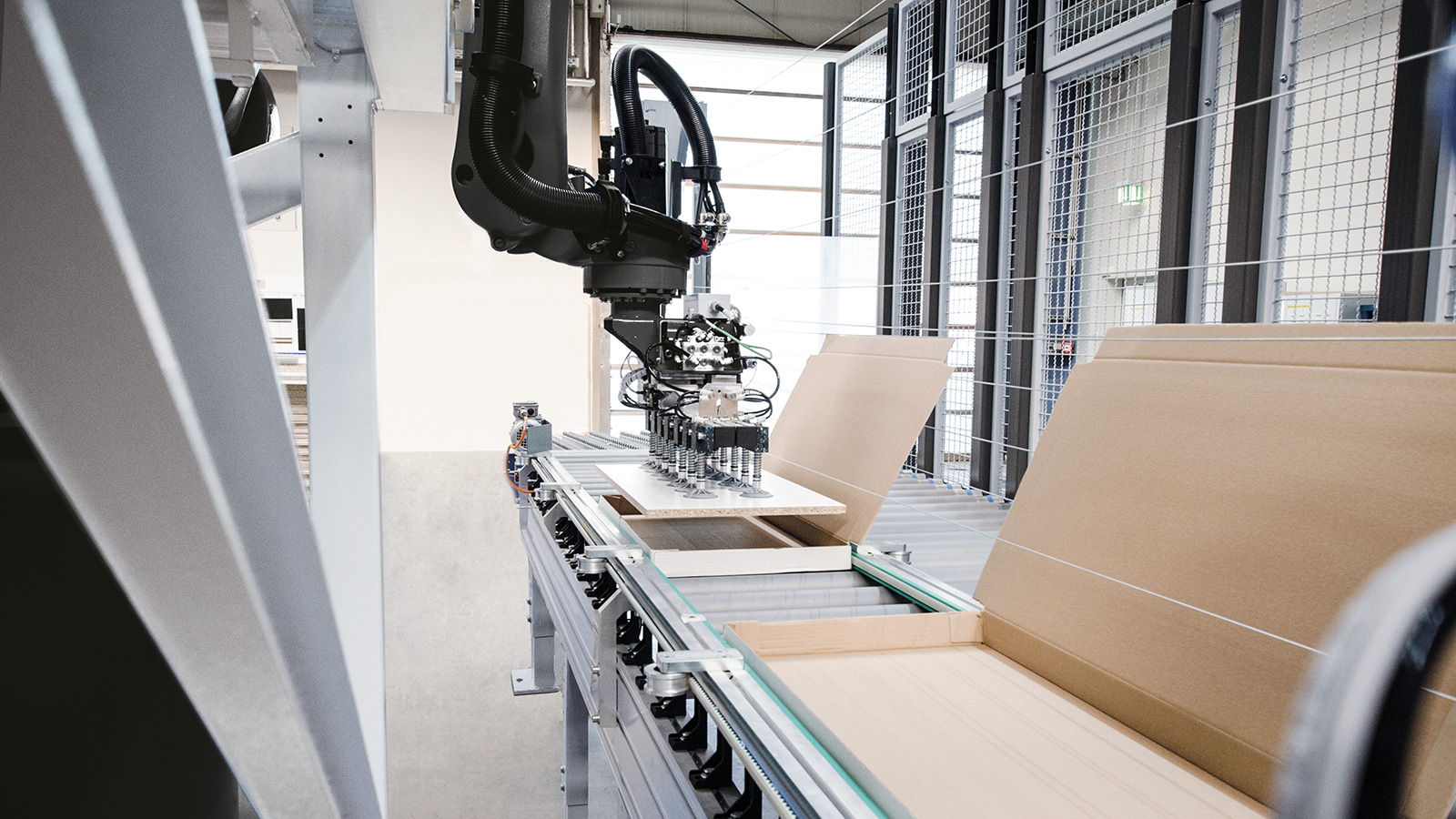

  • The insert station adapts to the speed with which the cardboards pass the insert area of
    the robot.

Features

  • Insertion of individual parts into carton with up to 10 cycles

  • Almost identical repeating accuracy

  • Sensor system reports exact position of the carton to the robot

  • No pit needed

Technical Data

Box dimensions (inside)Workpiece dimensionsStack dimensions
Length [mm]400 - 2,500390 - 2,490780 - 2,490
Width [mm]210 - 1,100200 - 1,090400 - 1,100
Hight [mm]32 - 250-600 - 1,600 incl. fundament
Thickness [mm]-16 - 60-
Weight [kg]-max. 25-

(Previous product name: Robotic Insert Station VRE 200)
