Throughfeed Drilling Machine DRILLTEQ C-500
The high-performance drilling machine from a batch size of more than 250 pieces – enormous repeat accuracy with the same high quality standards.
Our throughfeed drilling machines are mainly used in linked machine lines. An extremely high output of parts per minute while maintaining the highest quality are the standards by which we measure ourselves.
(Throughfeed drilling machines DRILLTEQ C-500)
Benefits

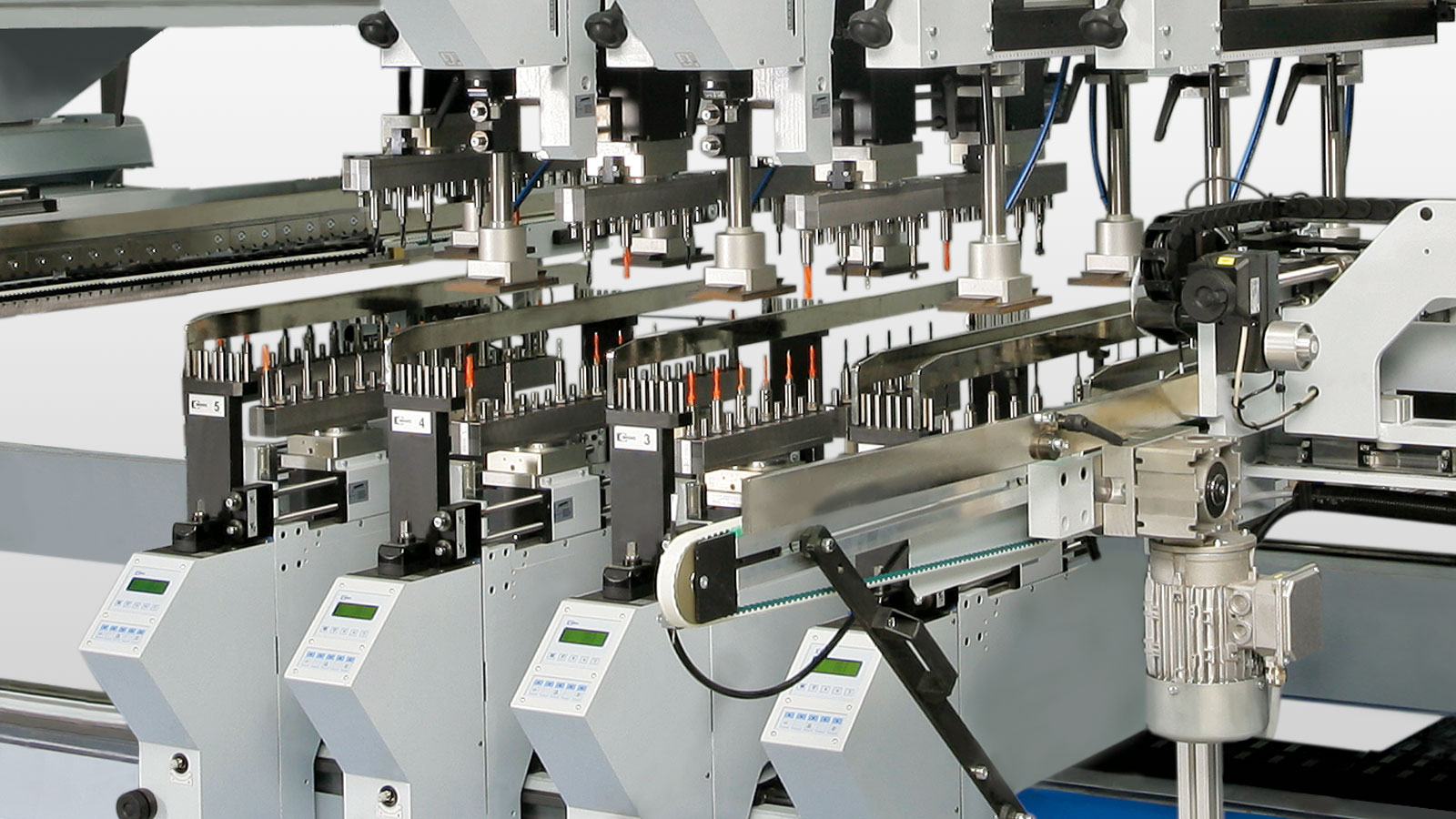

Vertical drilling from bottom

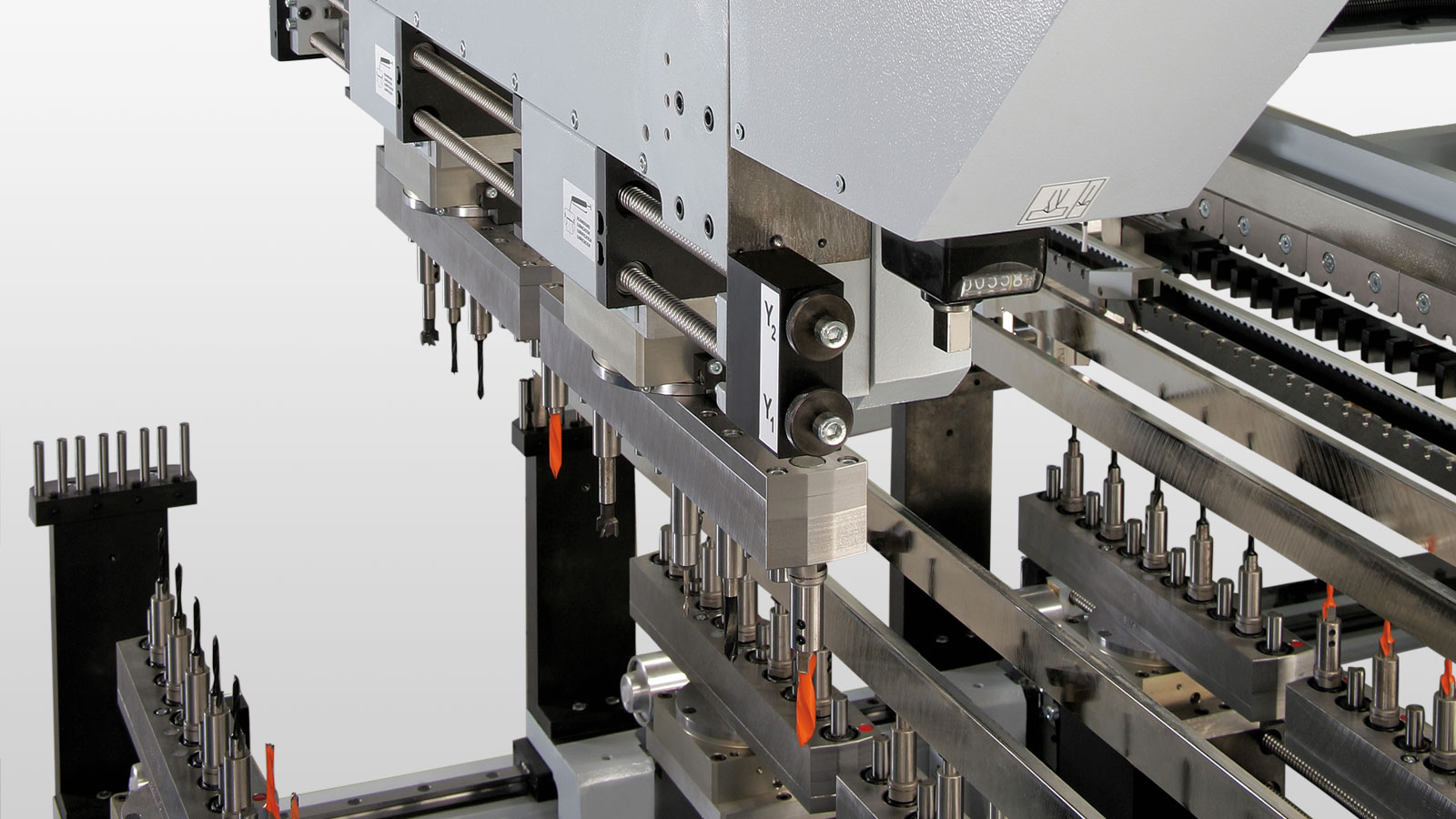

Vertical drilling from top

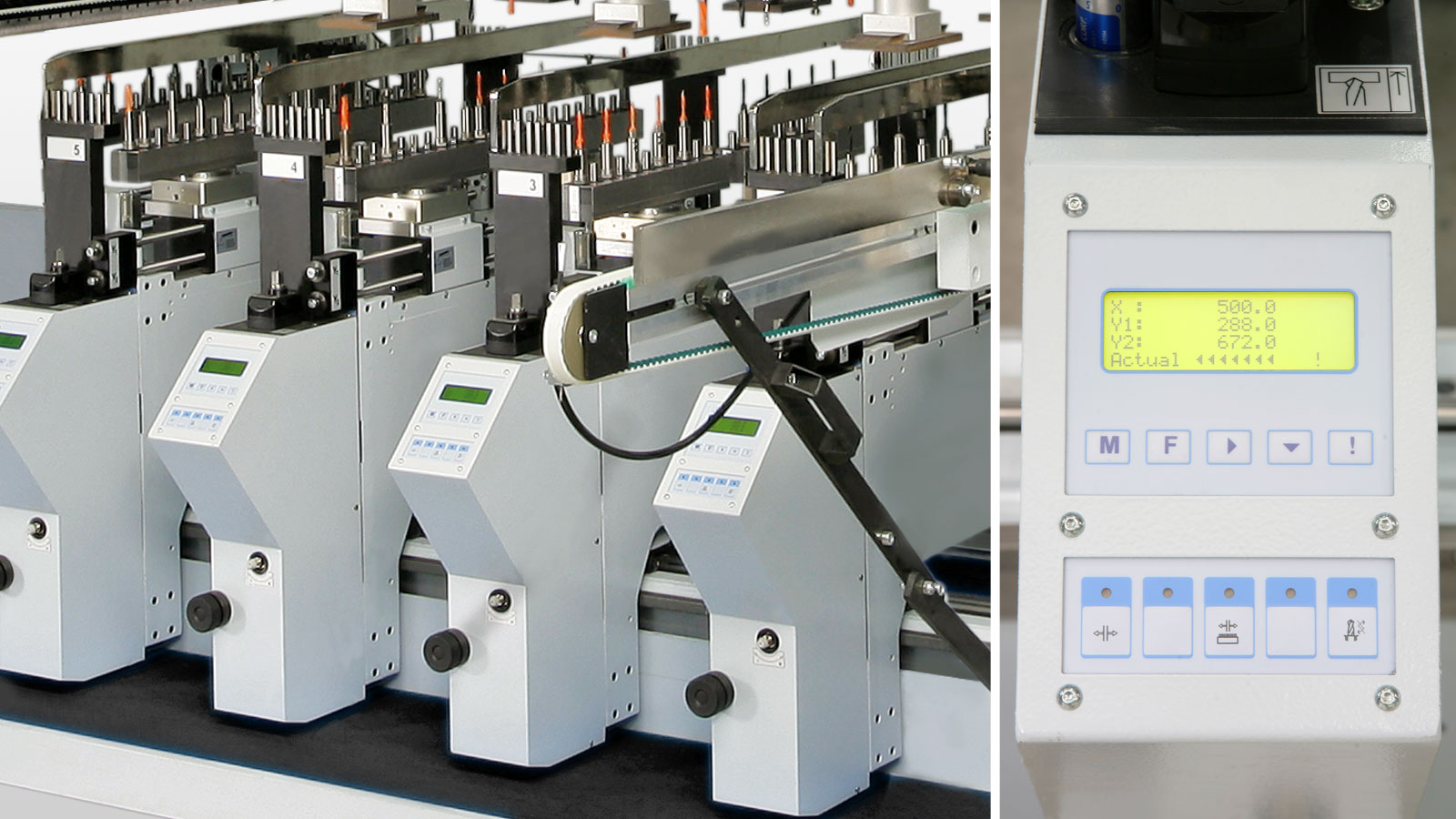

LCD positioning aid and control system

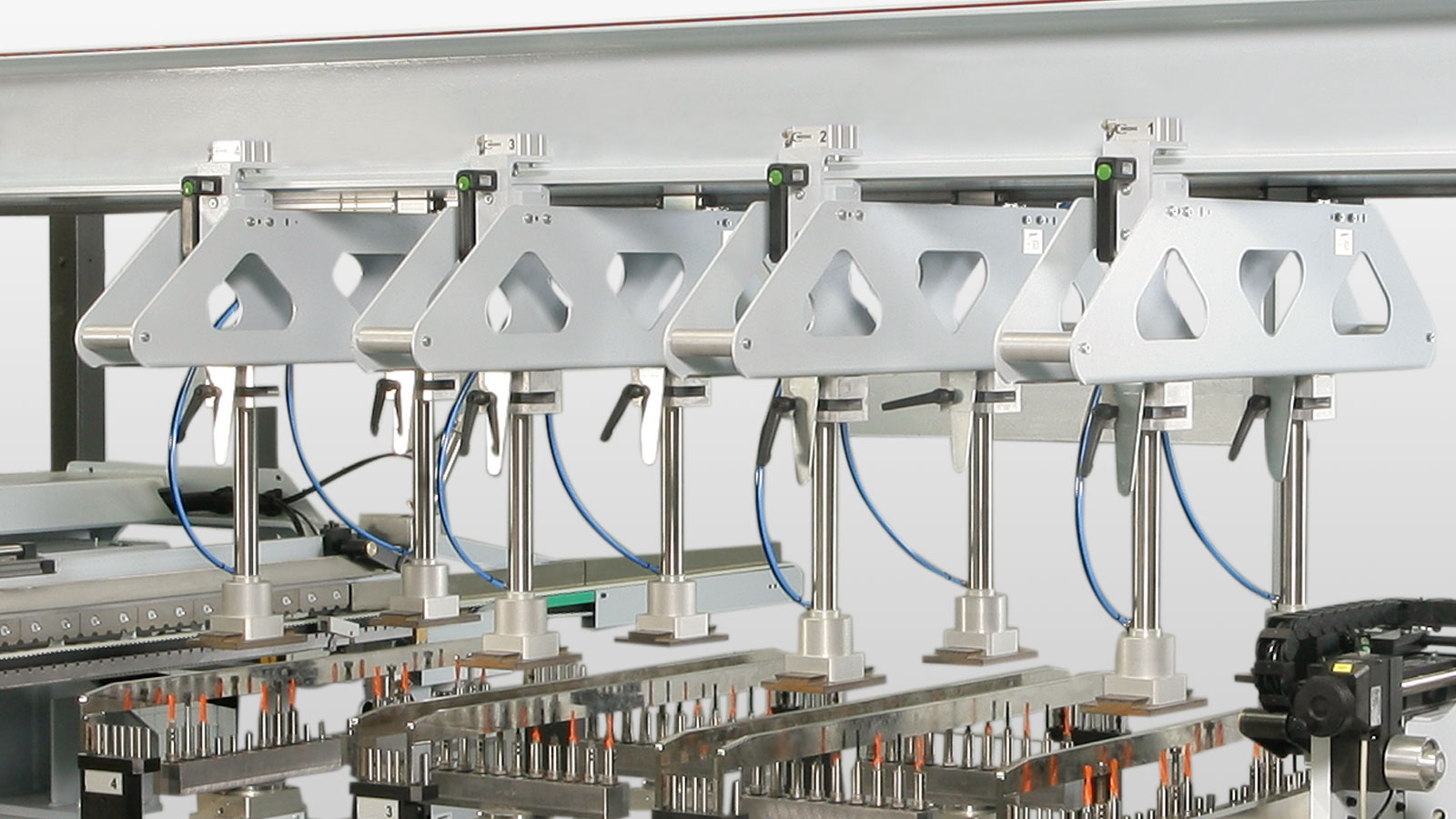

Clamping bridges (not swivelablle)

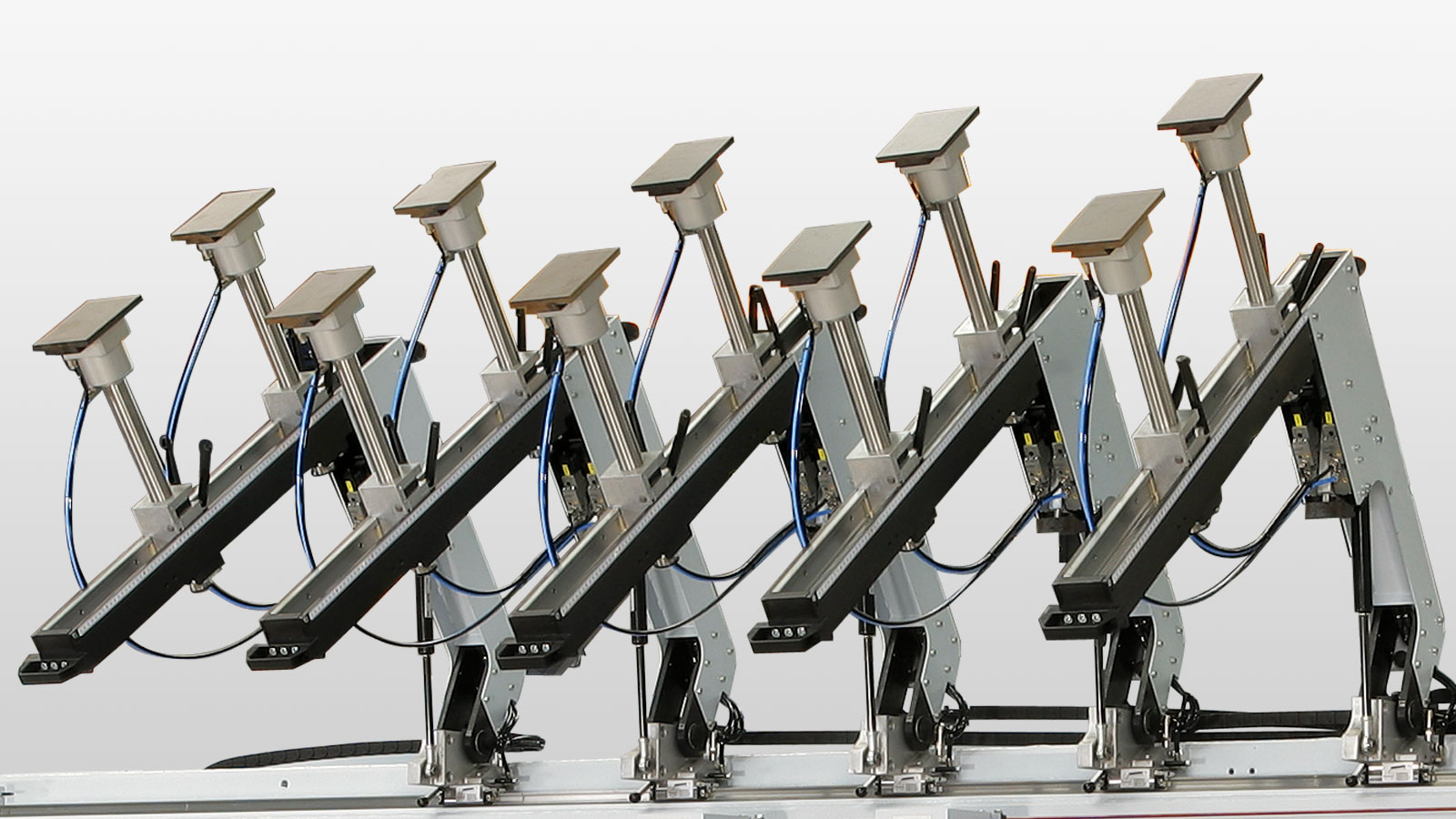

Clamping bridges (swivelablle)

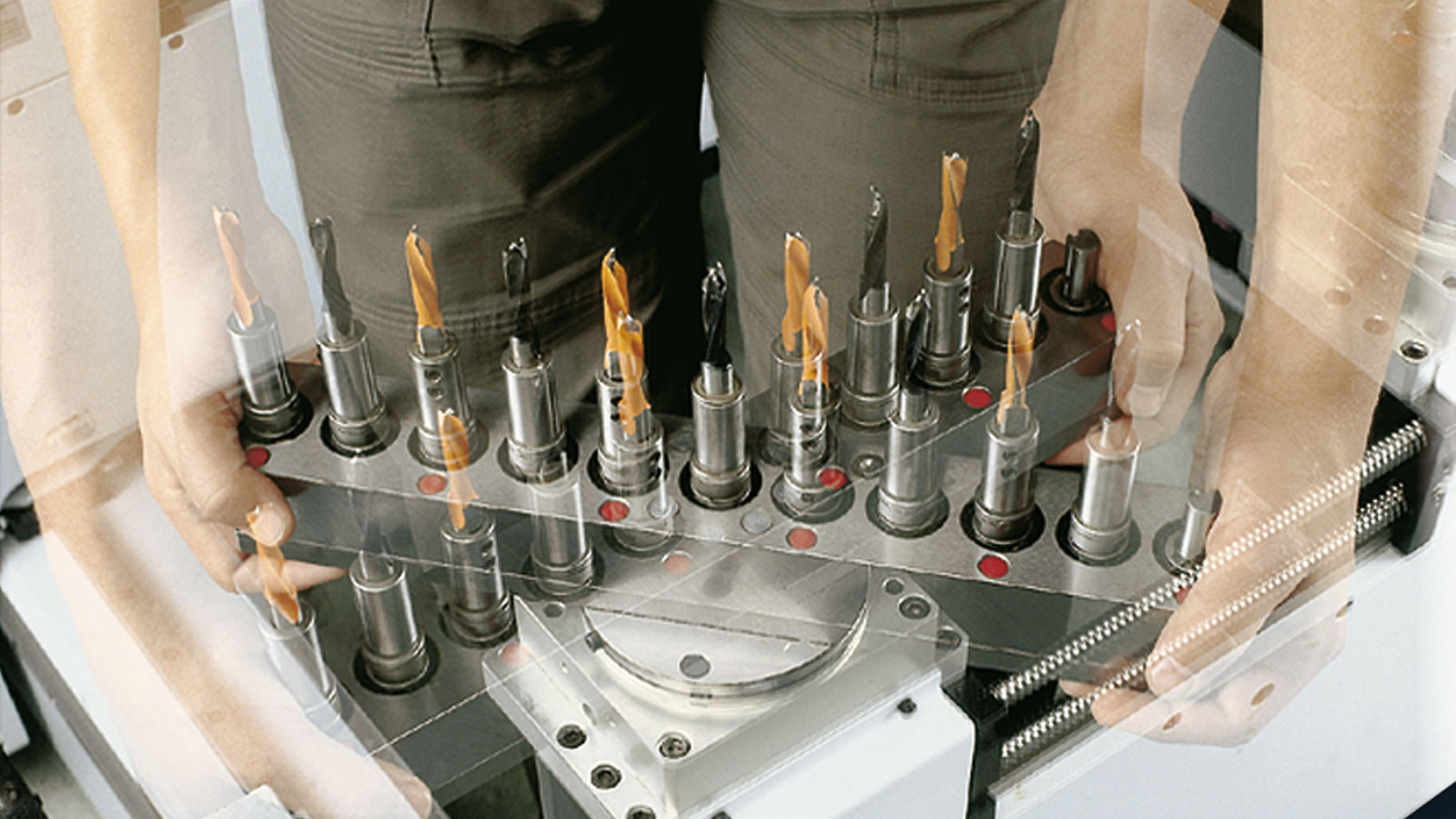

Swiveling drilling block

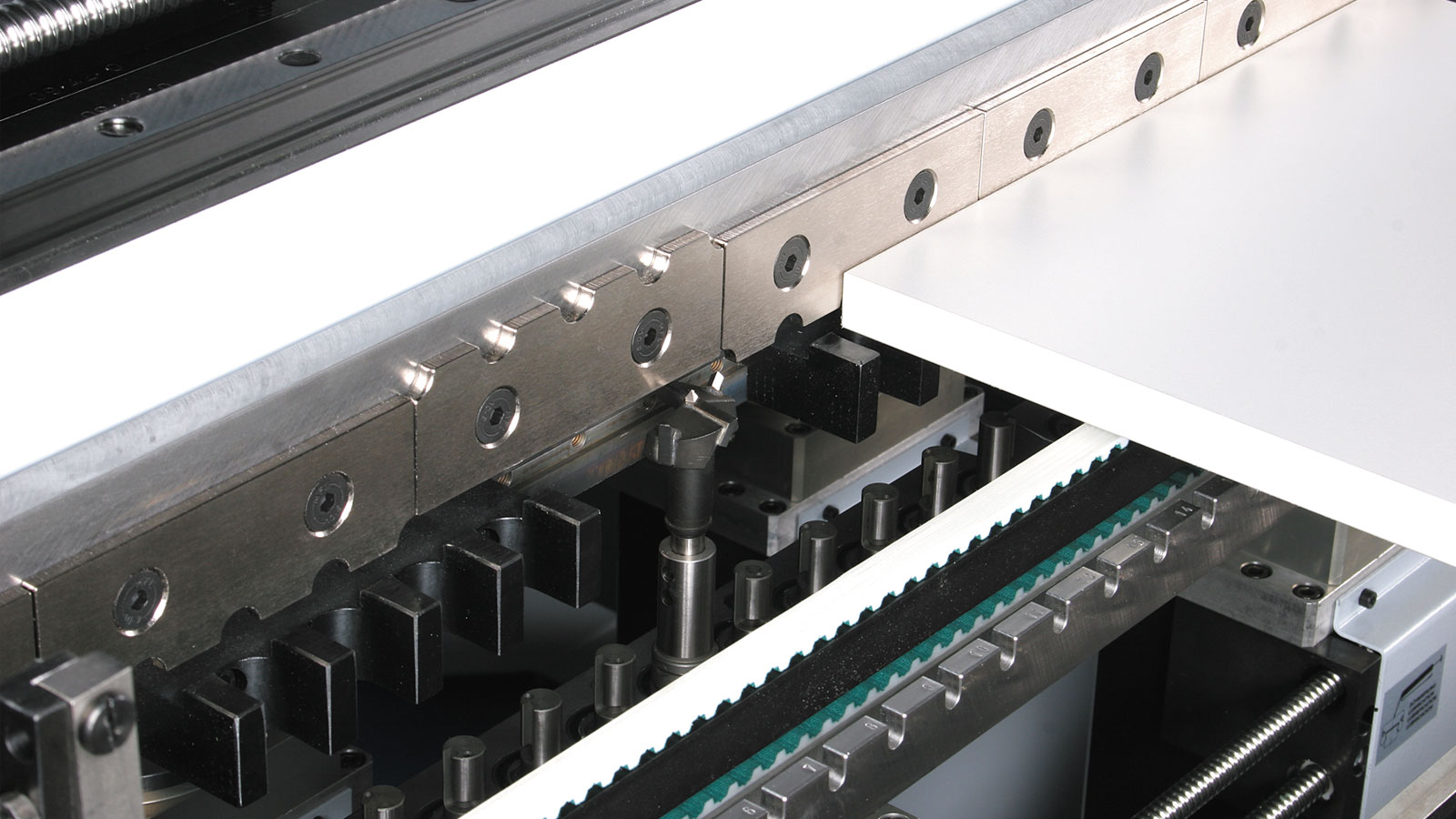

Exchangeable segments on side guide

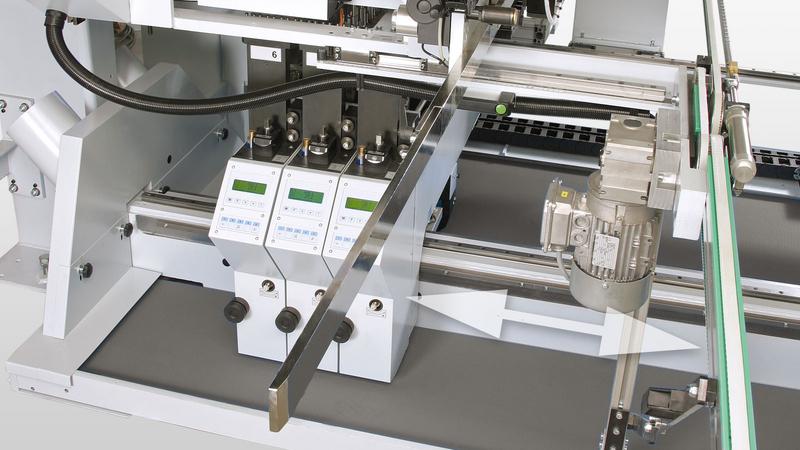

AdjusTable transport unit

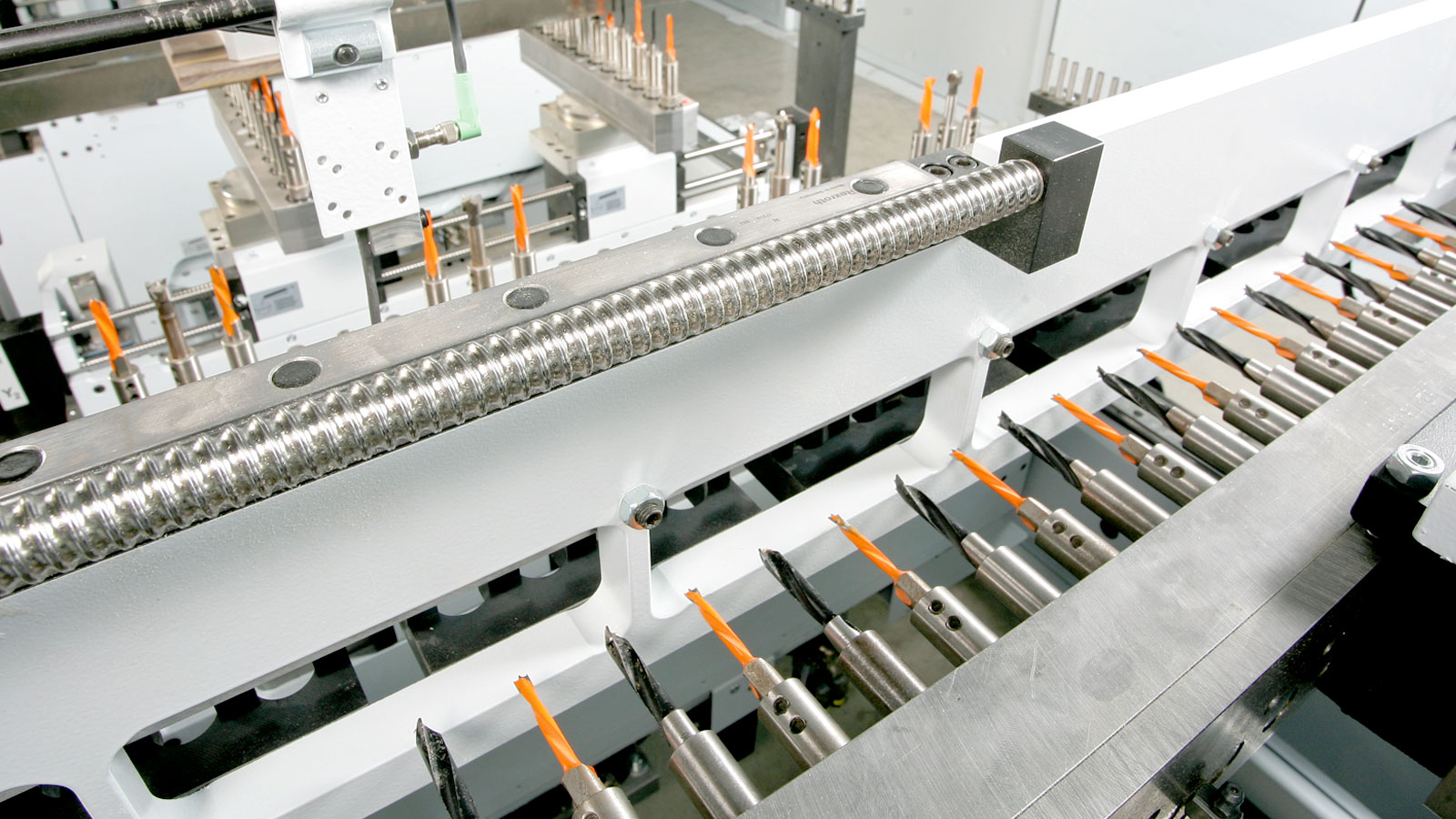

Horizontal drilling gear 2 x 21 spindles

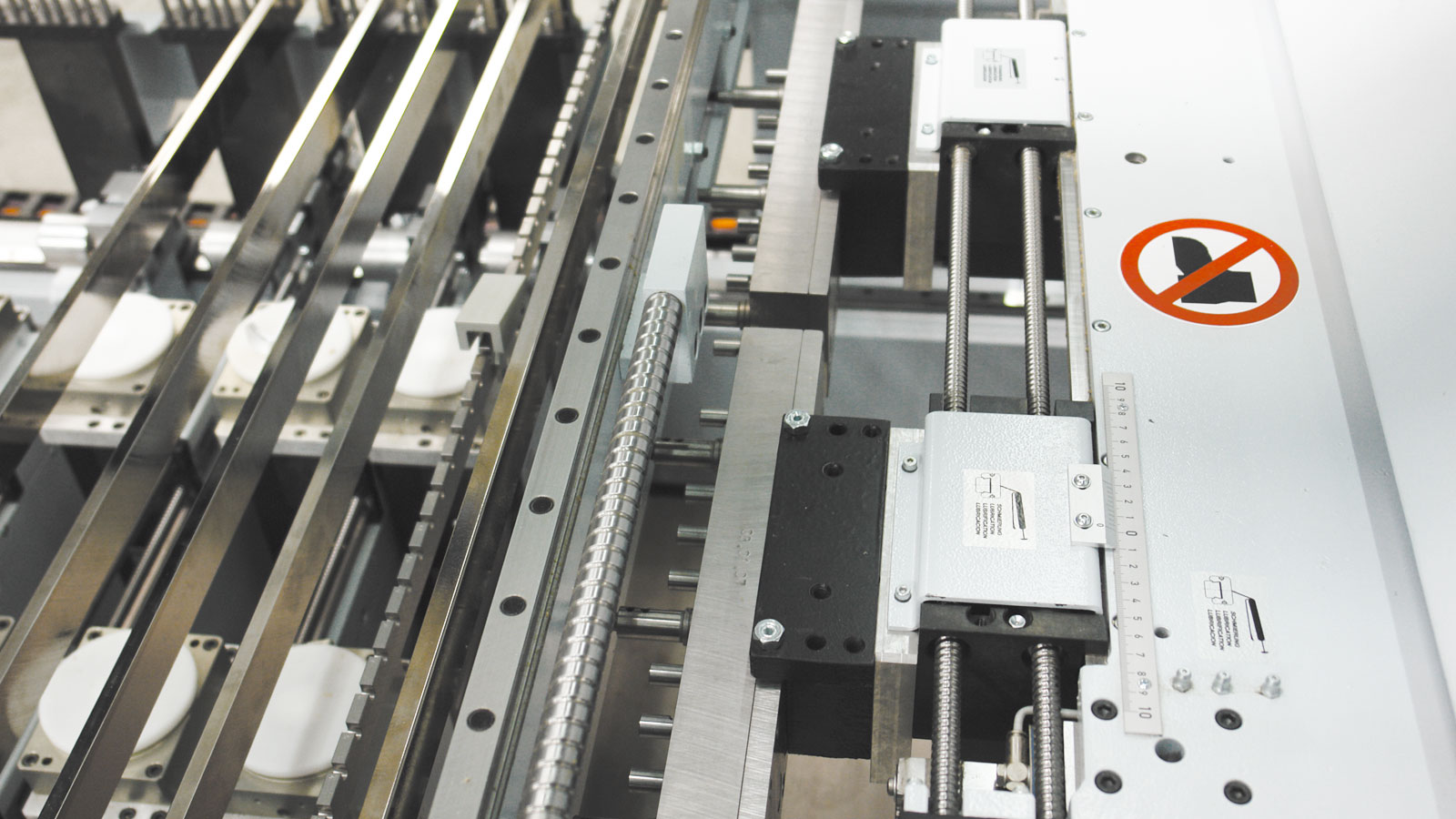

Horizontal drilling gear 4 x 11 spindles
Technical Data
DRILLTEQ C-500 | Min. | Max. |
---|---|---|
Workpiece length | 200 mm | 3.000 mm |
Workpiece width | 70 mm | 1.250 mm |
Workpiece thickness | 12 mm | 60 mm |
Further dimensions on request
