Panel dividing saw SAWTEQ S-400 plastics

This panel dividing saw is every bit as versatile as your demands are varied and can handle nearly all types of plastic panels – also when dealing with larger quantities and cutting in books.

With the SAWTEQ S-400 plastics, you benefit from a saw designed for cutting plastic materials that, in its standard version, already offers you all the technical features you expect in this performance category.

(Panel dividing saw SAWTEQ B-400 | HPP 400 Plastics)

Benefits

Flexible and versatile thanks to the wide choice of optional features
Fast single saw due to high feed speed and 125 mm saw blade projection
Precise due to virtually chip-free cuts, even when processing very thin material

Saw carriage with integrated minimal spray device for the main saw blade

Automatic labeling near the pressure beam

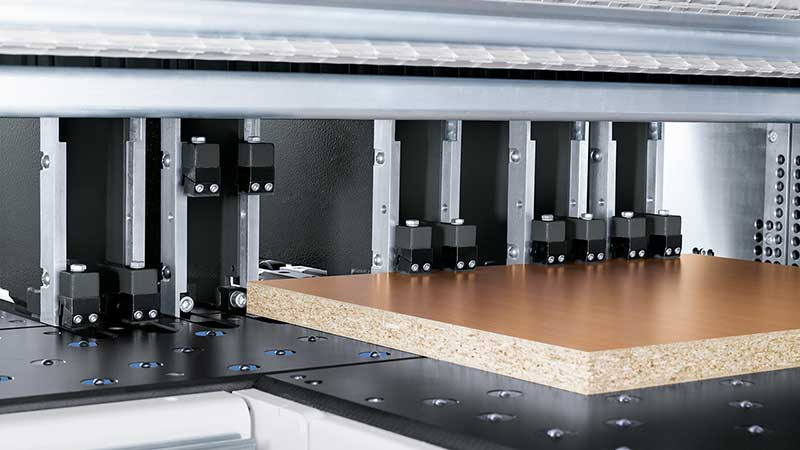

Clamps for narrow parts make it possible to clamp narrow strips (option).

Kerf workpieces directly on the panel saw – that saves time and costs (option).

Manual angle cuts: fast, efficient and gentle on material thanks to automatic calculation and adjustment of the angle (option).

Saw carriage with integrated minimal spray device for the main saw blade (option).

Multi-directional rollers: for less frictional resistance, significantly easier handling and improved ergonomics (option).

Automatic labeling during the ongoing cutting process – for error-free labeling and detailed parts identification (option).

Special rollers for processing scratch-sensitive surfaces (option).

Automatic outfeed fence: pushes panel remnants from the rear machinetable across the cutting line to the front (option).

Destacking concept: guides the operator from depositing the first part to forming the perfect stacked pallet (option).

Custom-designed labels for parts identification: for automatic program selection on downstream machines (option).

Features

Available in two cutting lengths – 3,200 mm or 4,300 mm
Reverse cutting for precise cutting of thin materials such as PETG
CADmatic machine control with the “material-dependent parameters” module for short setup times
Technologies developed specifically for plastic materials, such as the frequency-controlled main saw motor, special saw blades, narrow-finger clamps and optimized extraction system

Technical Data

Saw blade projection	125 [mm]
Cutting length	3,200/4,300 [mm]
Program fence speed	90 [m/min]
Saw carriage speed	0.1-130 [m/min] (150 [m/min] as option)
Main saw motor (frequency controlled)	18 [kW]
Operating software	CADmatic 5
