Panel dividing saw SAWTEQ B-180
Our powerful SAWTEQ B-180.
Anyone wanting to have the edge over their competitors needs an efficient panel dividing saw: reliable, with technologies “made in Germany”, built locally in China and with an unbeatable price / performance ratio.
(Panel dividing saw HPP 180)
Benefits
The Power Concept Advanced boosts output by up to 40 %, significantly shortens work cycles and reduces unit costs (option).
Cutting pattern optimization in the office: optimized project control, efficient cutting processes, full cost-control, faster calculations (option).

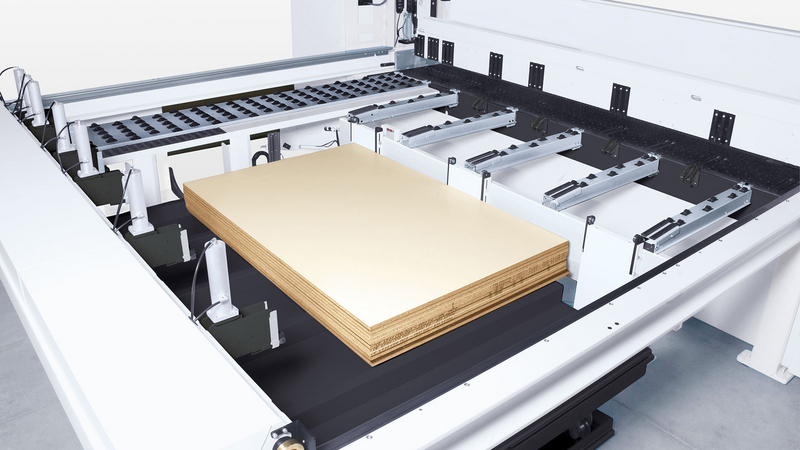

Easy2Feed is a low-cost automatic feeding solution that saves time and space, is ergonomic and can be retrofitted (option).
Custom-designed labels for parts identification: for automatic program selection on downstream machines (option).
Features
Central side pressure device: integrated directly in the saw carriage for short cycle times
CADmatic PRACTIVE
– Easy to understand
– Graphically supported diagnostics
– 17" TFT flat screen monitorMotor-powered scoring saw adjustment
Ready for connection to storage systems
Quick-release system Power-Loc for easier and faster saw blade change for both main saw and scoring saw
Technical Data
| SAWTEQ B-180 | SAWTEQ B-180 profiLine | |
|---|---|---|
| Saw blade projection [mm] | 95 | 95 |
| Cutting length [mm] | 3,200 | 3,200 |
| Program fence speed [m/min] | 70 | 70 |
| Saw carriage speed [m/min] | up to 80 | up to 120 |
| Main saw motor [kW] | 13.5 | 13.5 / 15 as option |
| Operating software | CADmatic PRACTIVE | CADmatic PRACTIVE |
| Monitor | 17" TFT flat screen monitor | 17" TFT flat screen monitor |
Product available only in Bangladesh, Bhutan, Brunei, China, Hong Kong SAR of China, India, Indonesia, Japan, Malaysia, Myanmar, Philippines, Russia, Singapore, South Korea, Sri Lanka, Thailand, Vietnam.
