Multi rip saw SAWTEQ C-720 HOMAG

Multi Rip Saws SAWTEQ C-720

Multi Rip Saws SAWTEQ C-720

A throughfeed saw for cost-effective production of furniture workpieces

This cross saw economically produces multiple widths at high batch sizes and enables a continuous flow of material. Thanks to the disc motor technology, you can implement minimum cutting widths of 310 mm.

Benefits

  • Maximum production precision thanks to the rolling block link chains with special stop cams
  • Automatic cam adjustment enables a high productivity level to be achieved from minimal workpiece gaps
  • Saw units with disc motors allow processing tolerances to be minimized
  • High-quality processing without tearing because the servo scoring unit can be preselected
  • Short setup times due to automatic positioning of the top roll pressure devices when the transport units are adjusted

Images

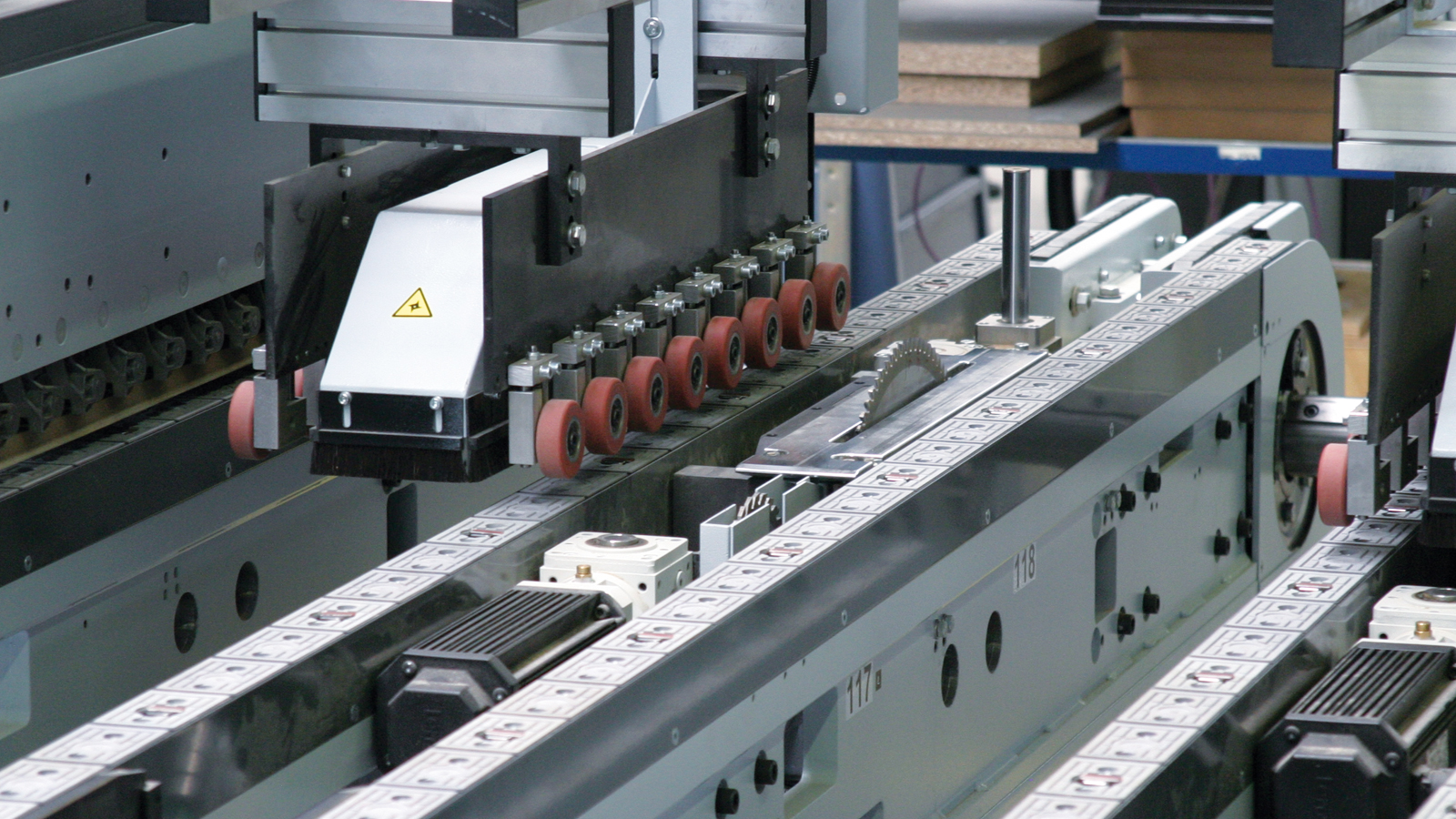

  • Sawing unit multi rip saw SAWTEQ C-720

Features

  • Modular configuration allows the number of transport systems and saw units to be varied

  • Stable, low-vibration machine stands

  • Workpiece feed device at one level for workpieces with a delicate surface layer

  • Individual suction devices for processing units

Technical Data

 SAWTEQ C-700
Feed speed10–40 [m/min]
Raw workpiece widthmax. 5,500 [mm]
Workpiece thickness10–40 [mm]
Raw workpiece length130–1,700 [mm]

(Previous product name: Multi rip saws FSQ 382: Flexible crosswise division designed especially for the furniture industry)
