Multi rip saw SAWTEQ M-500: Throughfeed sawing that saves materials

A division technique offering material savings of up to 6%

This longitudinal saw conserves resources when producing laminated floor boards by dividing the panels using an offset saw cut. State-of-the art disc motor technology offers maximum flexibility for the workpiece width.

(Multi rip saw FSL 324: Throughfeed sawing that saves materials)

Benefits

Material savings of up to 6% can be achieved thanks to the arrangement of units on the top and bottom
Flexible, automatic dimension settings for the individual units – adjustments during machine operation are also possible
High performance level of up to 12.5 raw panels per minute
Sawing of even very narrow workpieces is possible thanks to the disc motors
Transport systems based on the proven HOMAG multi-blade saw modules

Sawing unit with disc motor for SAWTEQ M-500

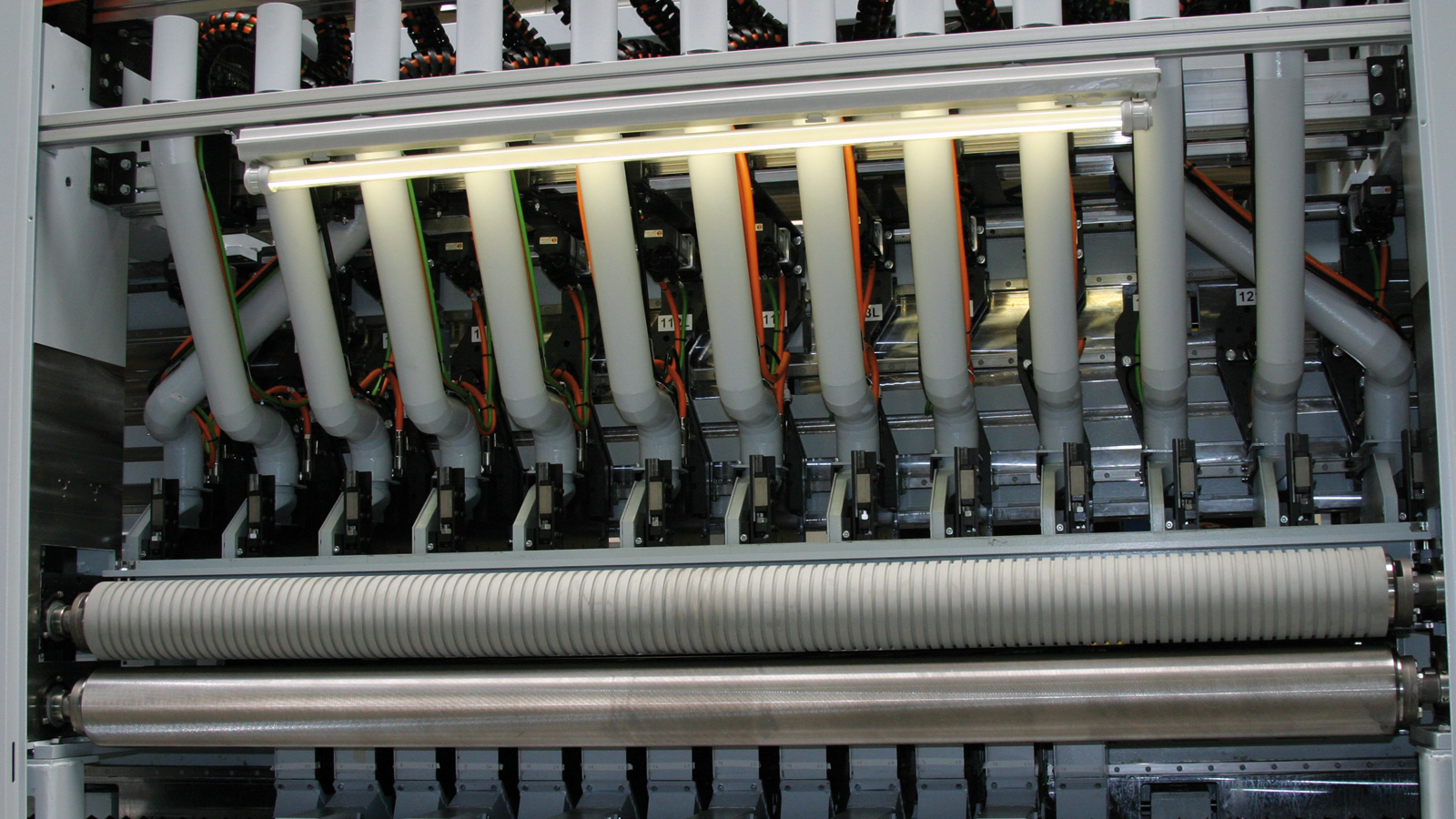

Sawing units

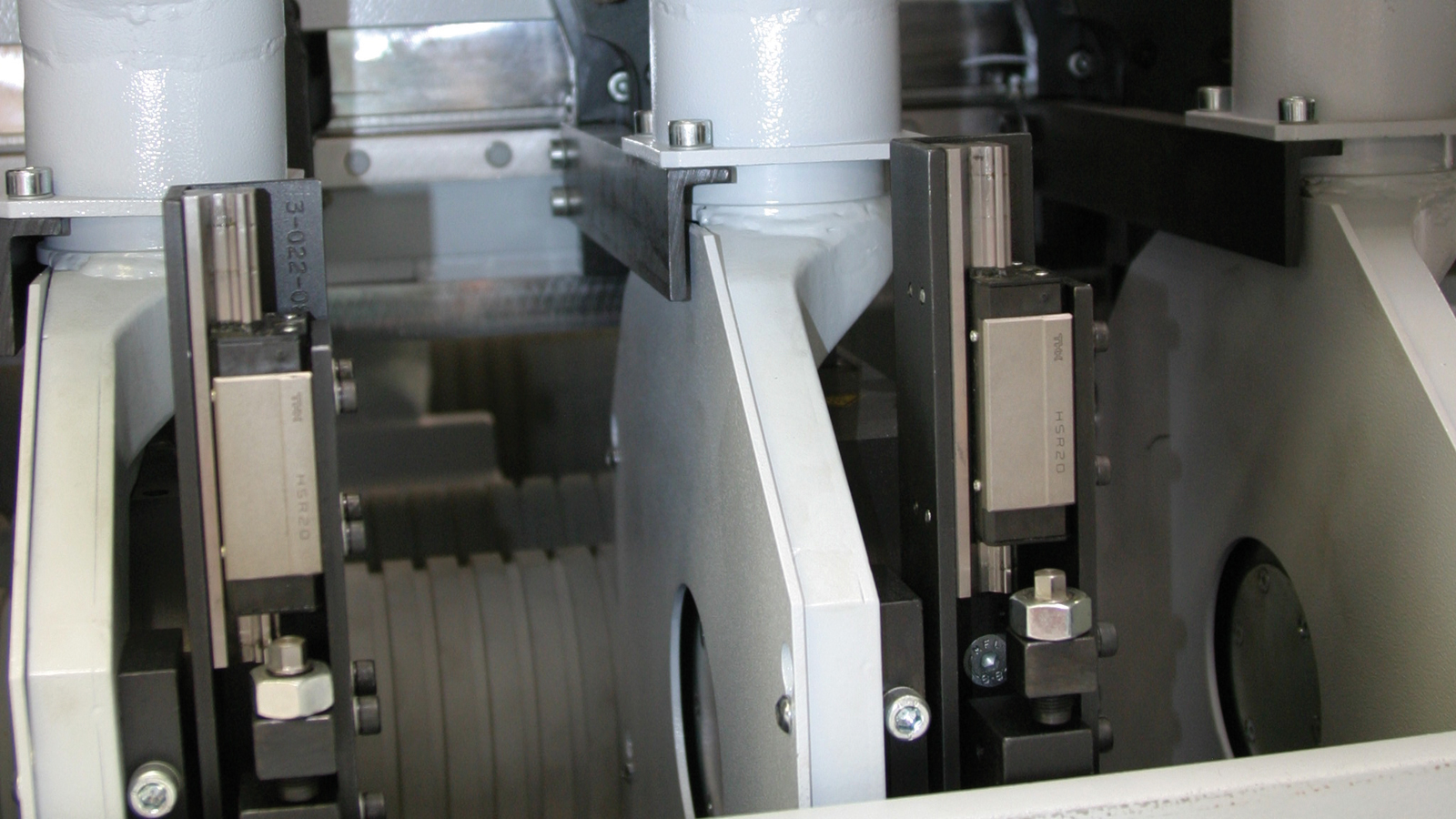

Sawing unit with disc motor

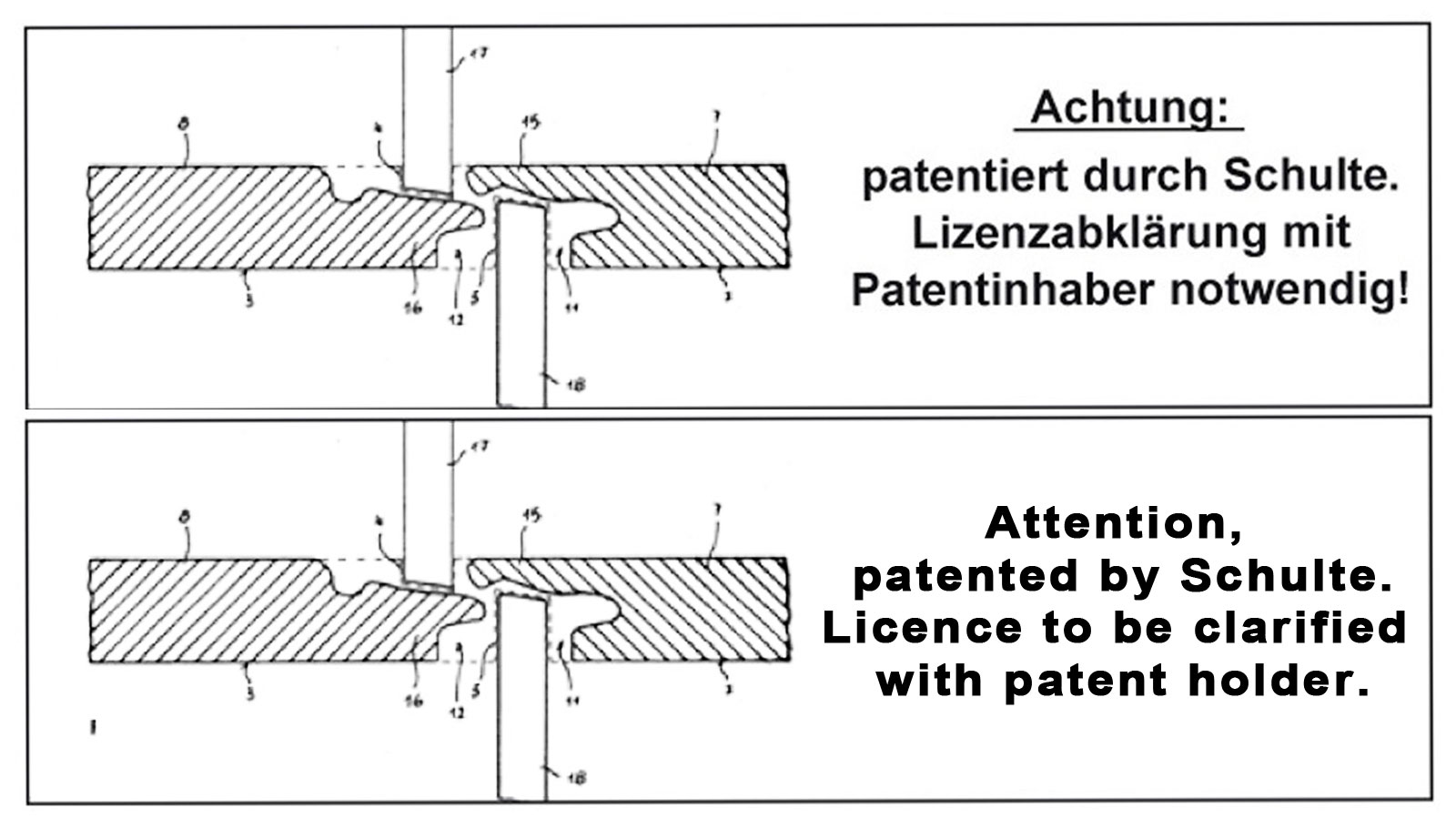

Offset sawing (Schulte patent)

Features

Stable, low-vibration machine stand design
Precise roller transport system with a roller diameter of 140 mm
Automatic setup
Individually motorized saw units driven by disc motors
Rapid tool changes without a saw carriage
Automatic decoration adjustments are possible using the visual alignment station
Noise protection hood with an appealing design

Technical Data

	SAWTEQ M-500
Feed speed	15–60 [m/min]
	110 [m/min] (on request)
Raw workpiece width	max. 2,500 [mm]
Workpiece thickness	6–25 [mm]
Raw workpiece length	min. 760 [mm]
