Multi rip saw SAWTEQ M-500 / 320 / 330: Longitudinal division in line with requirements

Single-row or double-row configurations

Select the right solution for your specific requirements from our range of single-row standard saws and automated double-row variants. You can also decide whether combining chipper units or scoring units would be useful for your application. The cost-effective nature and flexibility of these throughfeed saws are guaranteed to impress every time.

(Multi rip saw FSL 310 / 320 / 330: Longitudinal division in line with requirements)

Benefits

High level of flexibility provided by the individually adjustable saw units
The addition of scoring units enables processing without tearing
Good suction performance directly on the saw units using a central suction channel
Thick extraction hoods on the individual units offer protection against the abrasive stream of chips
Robust extraction hoods also minimize noise
Extra noise protection is provided via the booth that surrounds the entire machine
Secure workpiece transport via precisely sanded rollers or optional knurled steel rollers

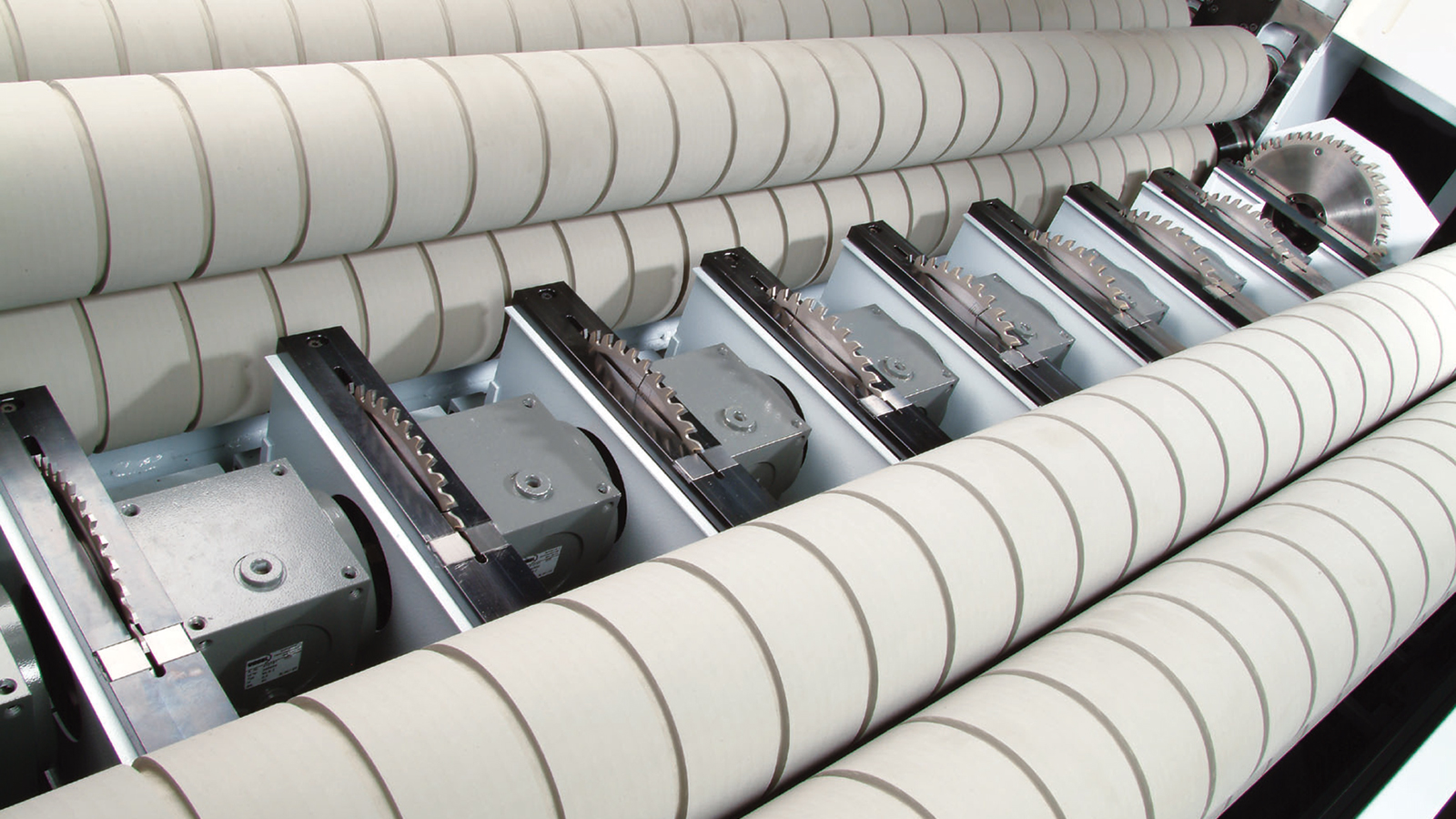

Sawing units multi rip saw HOMAG SAWTEQ M-500

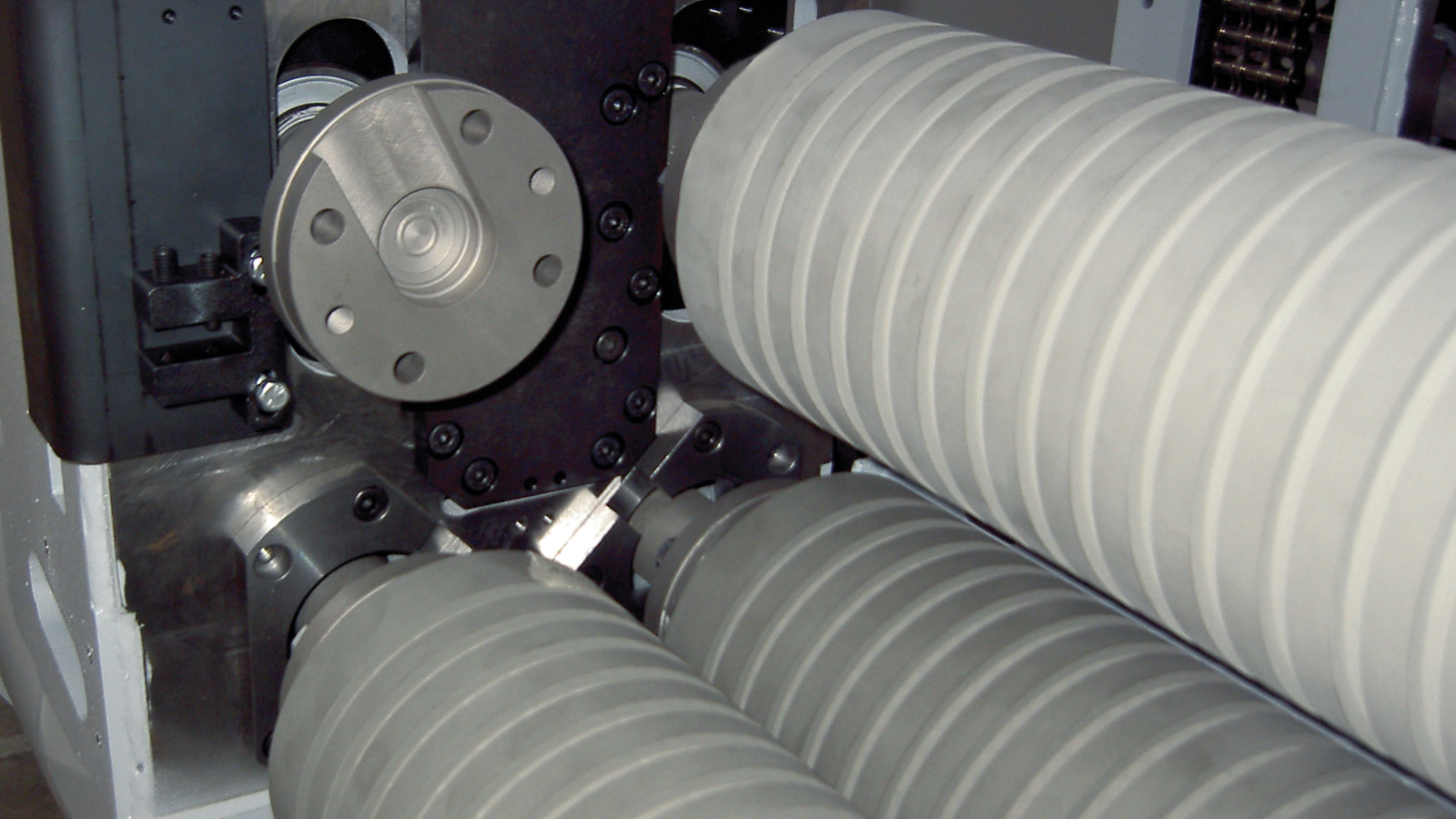

Transport rollers multi rip saw HOMAG SAWTEQ M-500

Sawing units multi rip saw SAWTEQ M-500

Transport rollers multi rip saw SAWTEQ M-500

Features

Manual or automatic setup
Simple tool changes without a saw carriage
Can be configured in two rows — saw units can be combined with chipper units (e.g. for narrow raw panel dimensions)
Stable, low-vibration machine stand design
Precise roller transport system with a roller diameter of 140 mm
Motorized saw units

Technical Data

	SAWTEQ M-500
Feed speed	15–60 [m/min]
	110 [m/min] (on request)
Raw workpiece width	max. 2,500 [mm]
	3,800 [mm] (on request)
Workpiece thickness	6–40 [mm]
	60 mm (on request)
Raw workpiece length	660–900 [mm]
