Edge banding machines EDGETEQ S-360
Complete edge processing with our EDGETEQ S-360.
The EDGETEQ S-360 offers complete edge processing thanks to its comprehensive equipment. The powerful motors on all units provide the unrestricted power which is needed to process a broad spectrum of different parts. The series can be used for formatting panels with the joint trimming unit, gluing edges in high quality, precise snipping and perfect finish processing. The profile trimming unit with four motors, for chamfering and rounding the edges on panel front and rear side, offers a premium standard of processing quality.
(Edge banding machine NKL 210)
Product available only in Bangladesh, Bhutan, Brunei, Cambodia, China, Hong Kong SAR of China, India, Indonesia, Japan, Laos, Malaysia, Myanmar, Pakistan, Philippines, Russia, Singapore, Sri Lanka, Thailand, Vietnam.
Benefits

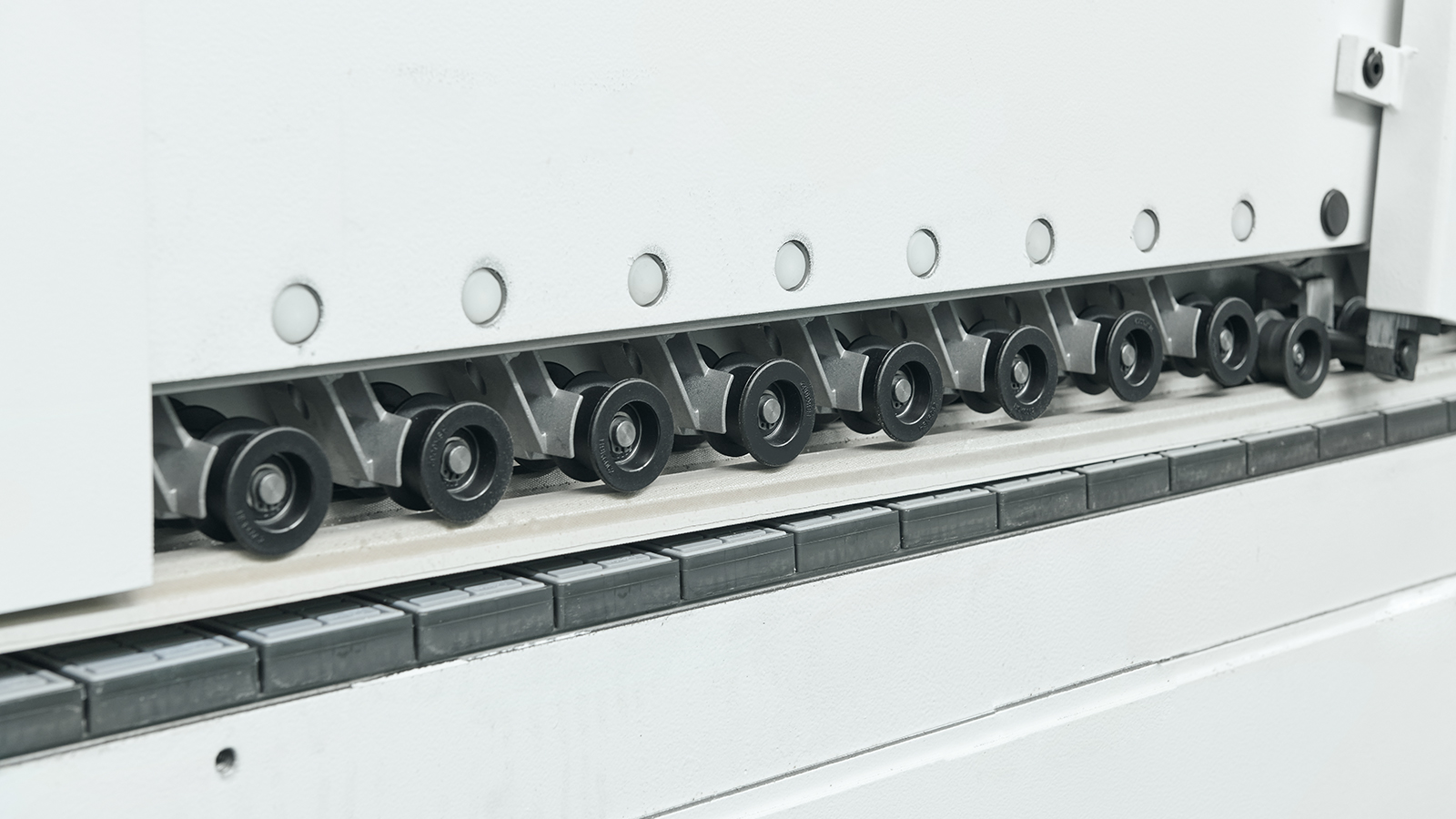

Belt-type top pressure: top pressure beam made of steel ensures that workpieces are ideally clamped for processing.
Chamfer/radius trimming unit: This 2-point adjustment trimming unit is ideal for rapid changes between thin and thick edges.
By dividing the cut over four motors, each corner can be processed in synchronous rotation.
With exact cuts the face side can be snipped either straight or with chamfer.

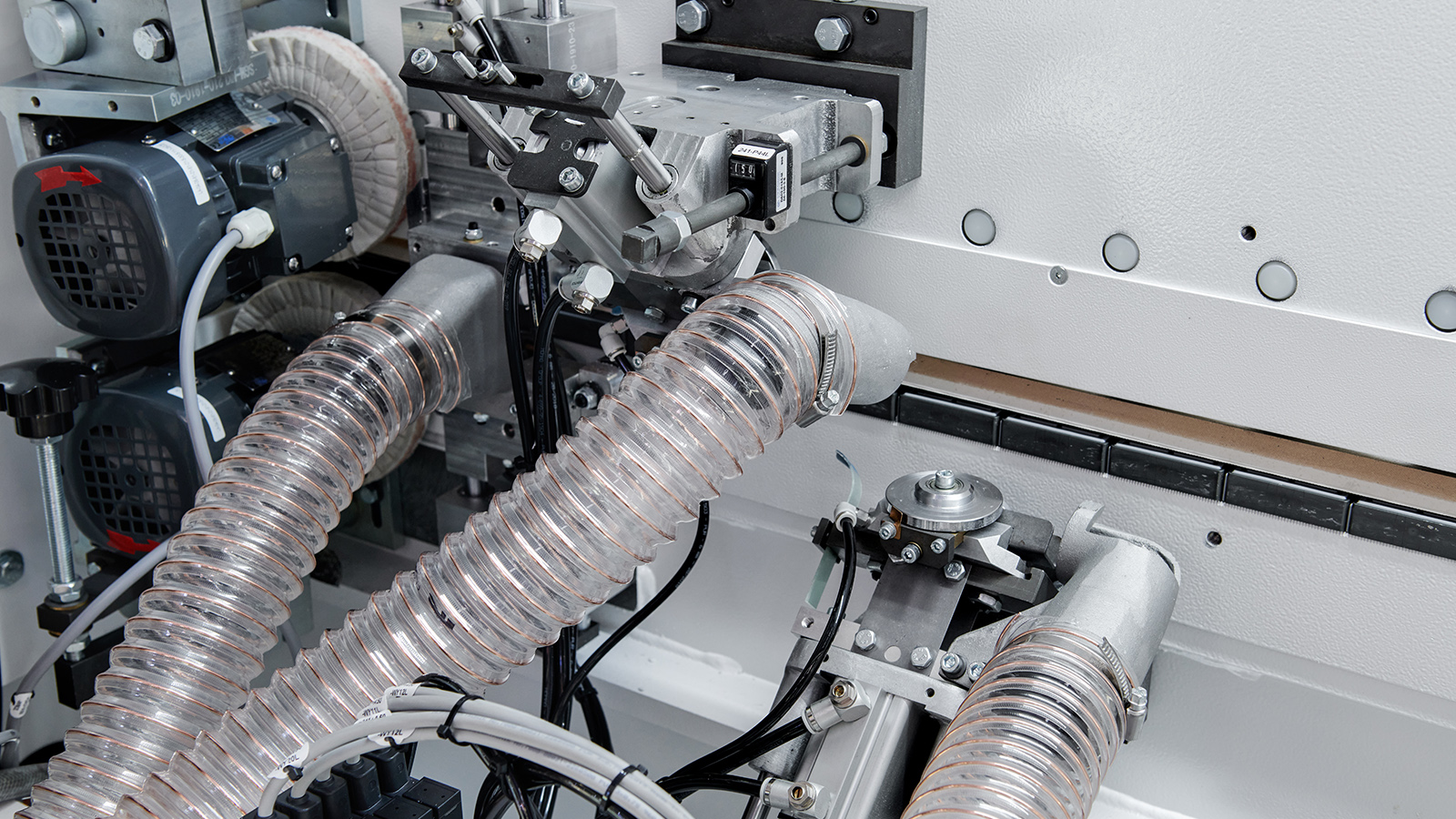

The quality of the workpieces is increased by the profile scraper, the glue joint scraper, and the buffing unit.
Technical Data
5/A3/N | 5/A20 | 5/A20/PT | 7/A20 | |
---|---|---|---|---|
Machine length [mm] | 6.970 | 6.970 | 6.970 | 8.635 |
Feed speed [m/min] | 18–28 | 18–28 | 18–28 | 18–28 |
Workpiece thickness [mm] | 12–60 | 12–60 | 12–60 | 12–60 |
Edge thickness [mm] | 0,3–3 | 0,3–3 | 0,3–3 | 0,3–3 |
Strip thickness [mm] | – | 0.4–20 | 0.4–20 | 0.4–20 |
