Double-End Tenoner TENONTEQ D-600: Medium performance range for flooring production
Compact and flexible solutions for longitudinal and crosswise profiling
The TENONTEQ D-600 series covers all areas of application for the profiling of flooring elements. The double-sided machines can be used to produce your floor elements with maximum profile accuracy for every profile type.
(Double-End Tenoner FPR 520: Medium performance range for flooring production)
Benefits

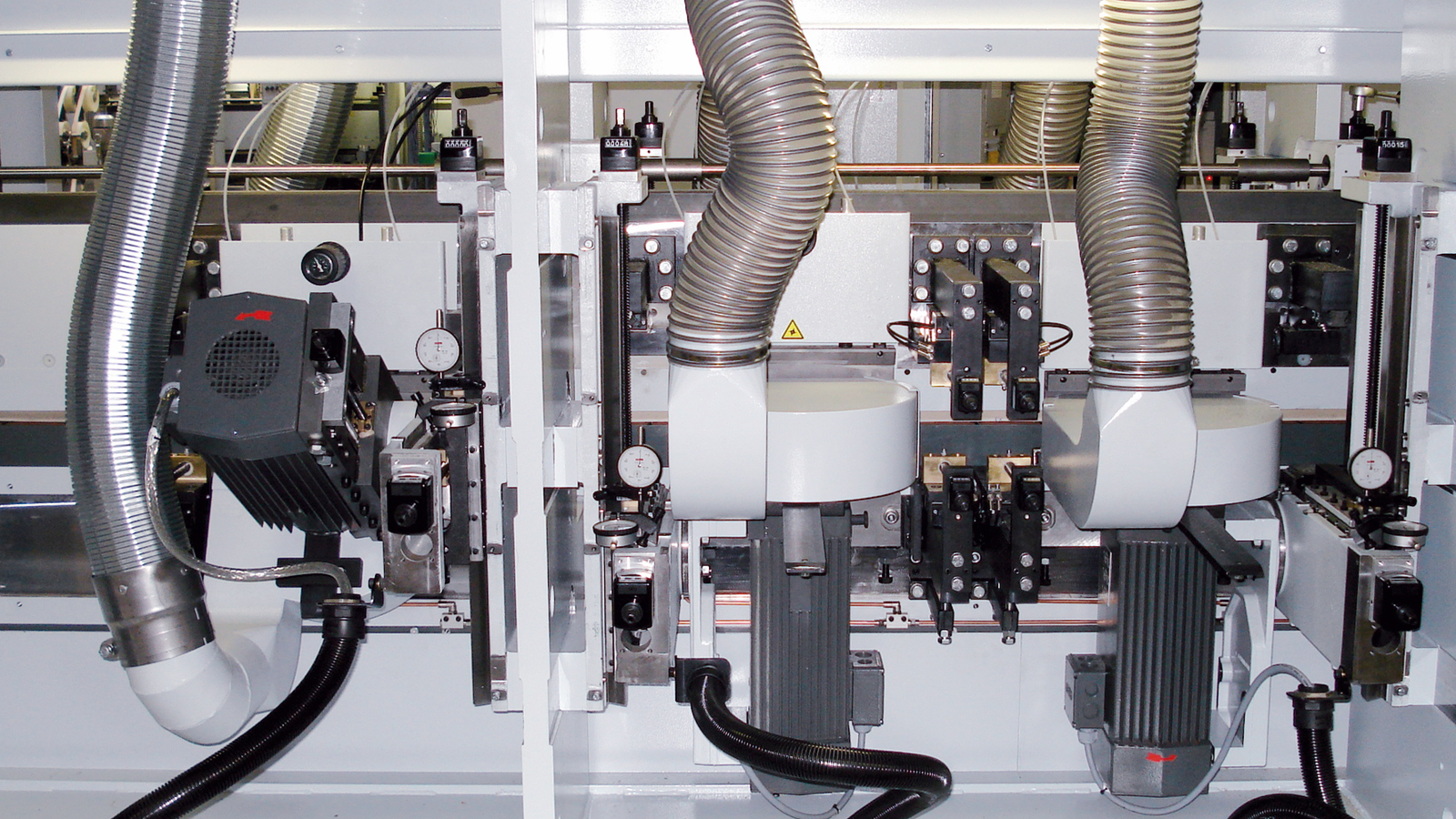

Unit guidance system with high-precision setting devices

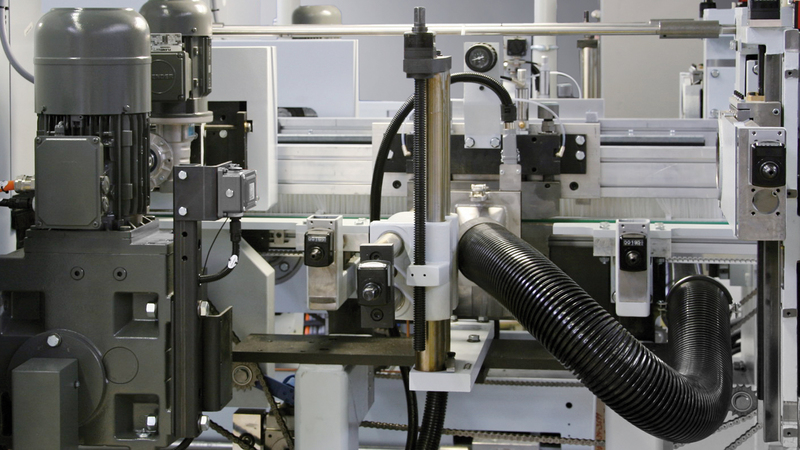

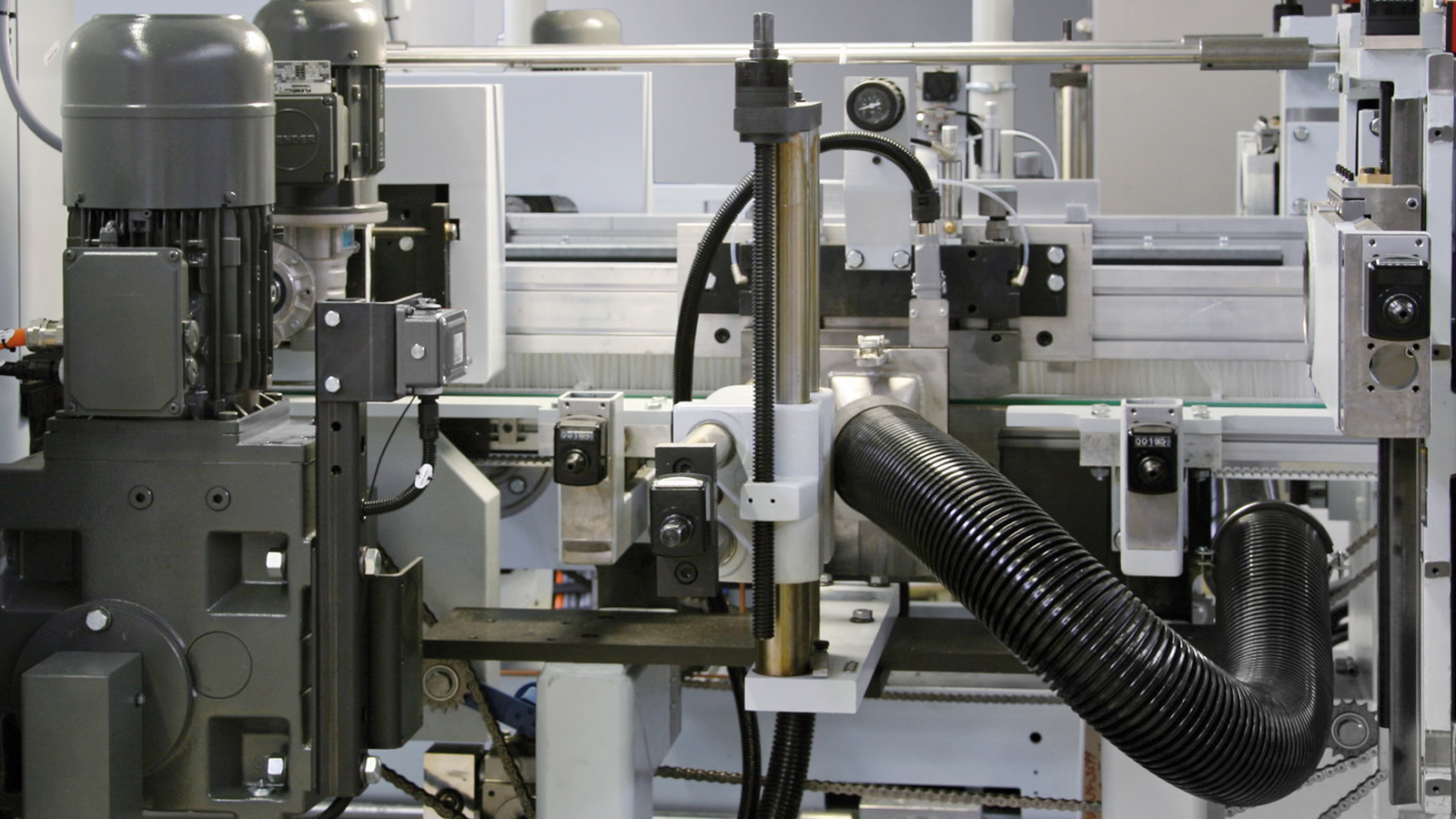

Extension for the application of edge sealing

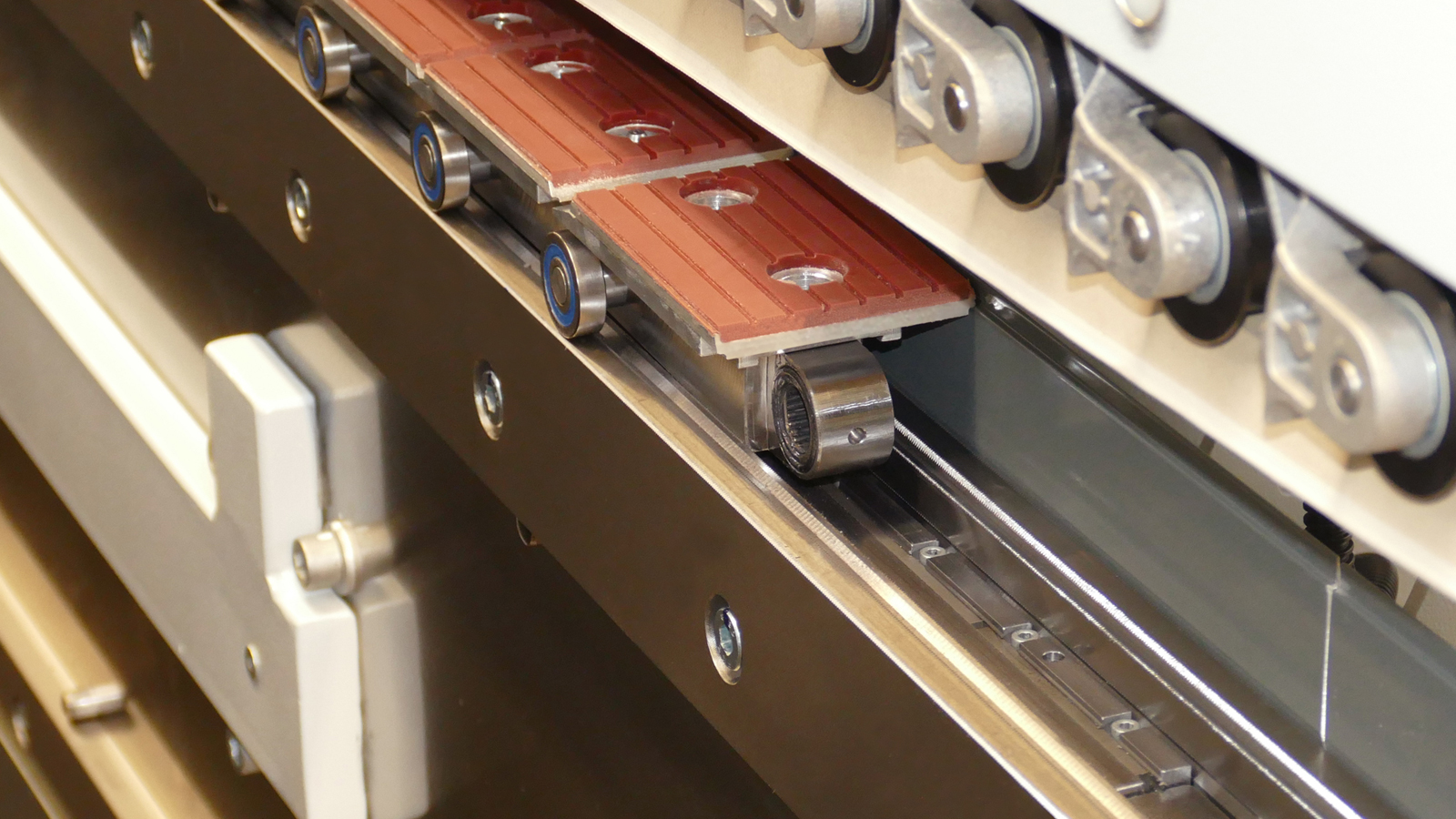

Magnetic chain

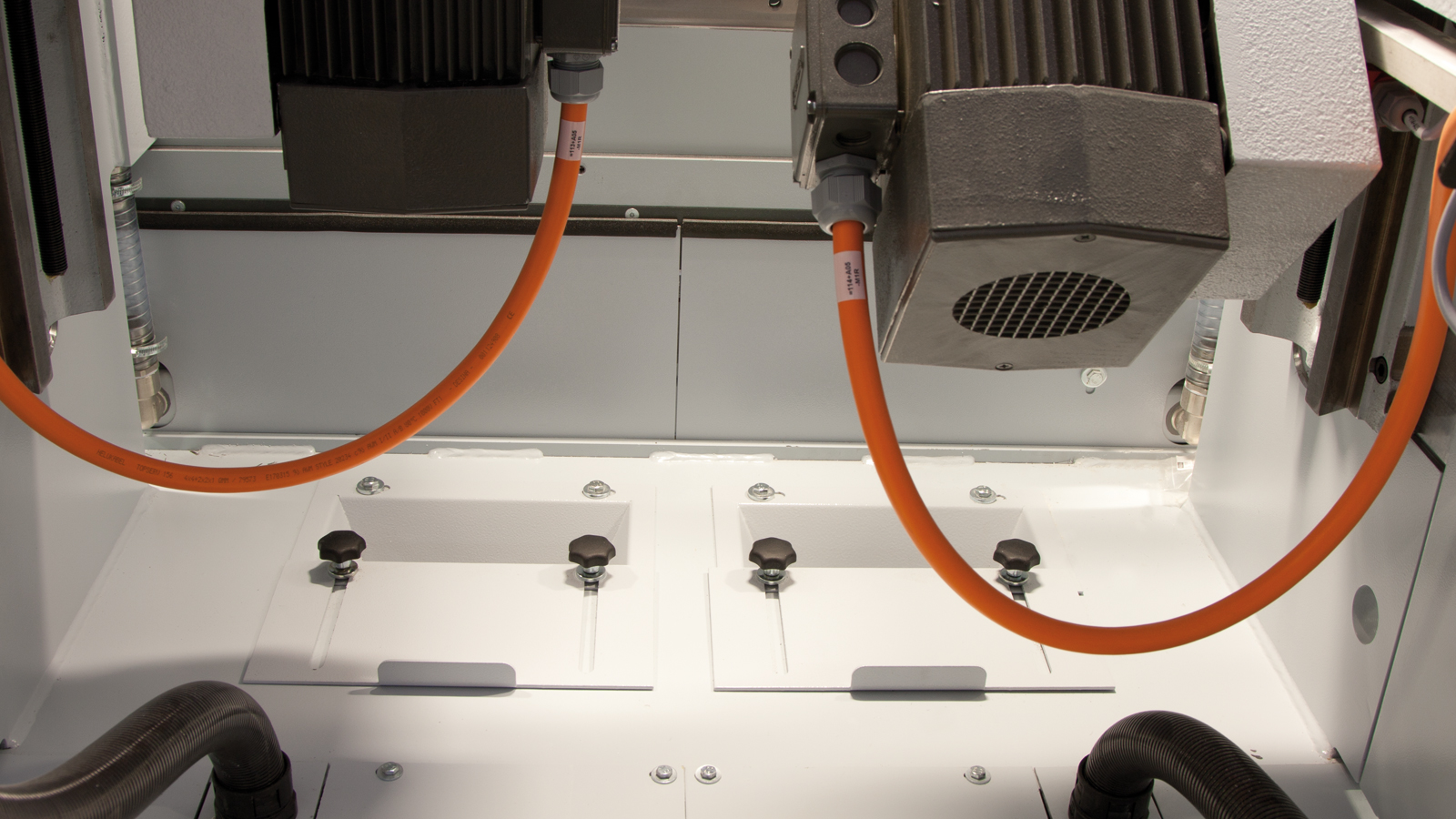

Supportive room extraction

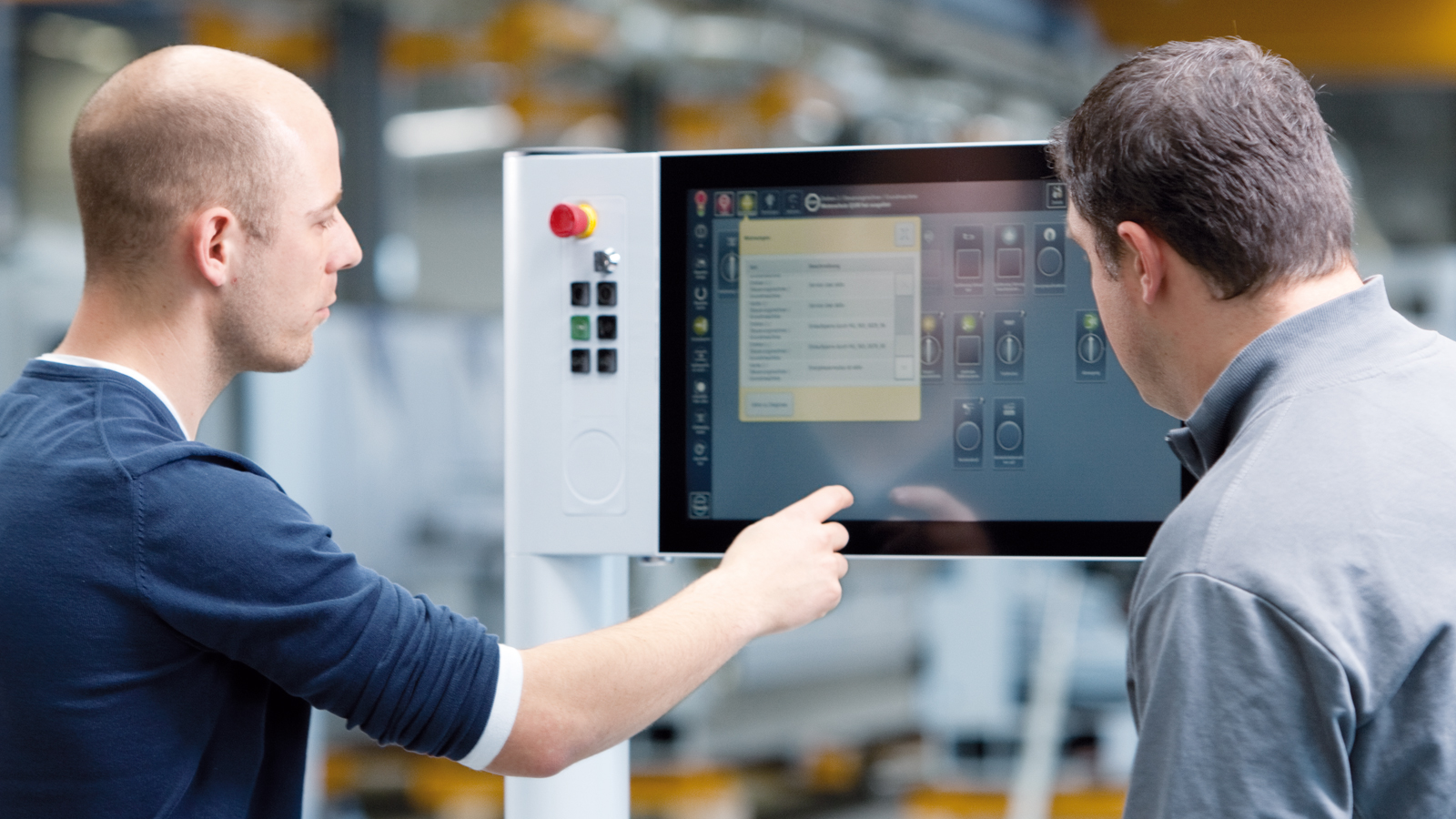

powerTouch control system
Features
Feed speed of up to 130 m/min
Patented magnetic chain
Solid frame construction for up to eight processing units
Area extraction supported
Horizontally adjustable top roll pressure
Machine extension for edge coating
Control system: powerTouch; Siemens optional
Technical Data
FPR 525/526: parquet / LVT
Standard chain double | Narrow chain W1 | Narrow chain W2 with pressure shoe | |
---|---|---|---|
Speed [m/min] longitudinal | max. 130 | ||
Speed [m/min] transverse | max. 60 | ||
Number of motors | max. 8 |
FPR 525/526: laminate
Standard chain double | Narrow chain W2 | Narrow chain single | |
---|---|---|---|
Speed [m/min] longitudinal | max. 130 | ||
Speed [m/min] transverse | max. 60 | ||
Number of motors | max. 8 |
