ランニングソーSAWTEQ S-300
手加工または産業加工向けにカスタマイズできるシングルソー – 多様なカット用途に使用でき、ネットワーク化された生産体制にも対応。
シリーズ300の実証済み基本モデルは、小さいスペースで極めて高い出力を発揮します。高まる要件に対応していくための理想的なソリューションです。単品生産にも小規模の大量生産にも適しています。また、SAWTEQ S-300は平面倉庫への接続にも適しています。
(ランニングソー SAWTEQ B-300 | HPP 300)
利点
module45: rip, cross and bevel cuts all on one saw. Quick, simple, stepless adjustment for angles from 1 to 46 degrees (option).
The intuitive Operator Assistance System LED visually guides the operator through the processing steps by means of an LED light strip (option).
Fully automatic angle cuts thanks to automatic calculation and adjustment of the angle – fast, efficient and with maximum care of material (option).
combiTec saves material, time, money and manual work steps: due to automatic recuts during the regular cutting process (option).
Cut-out option for simple creation of cut-outs, much easier handling than on a slidingtable saw (option).

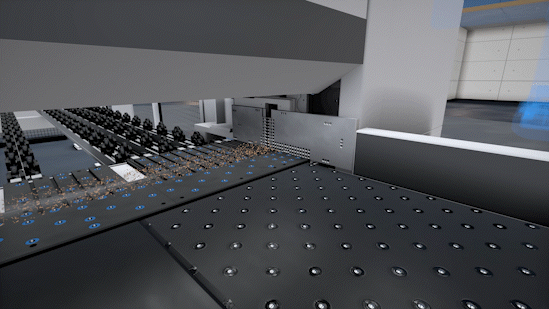

dustEx air jets transport dust and chips towards the right-angled fence: improves extraction and prevents scratches.
Pneumatically operated trim stops: for precise positioning and safe processing of sensitive materials (option).

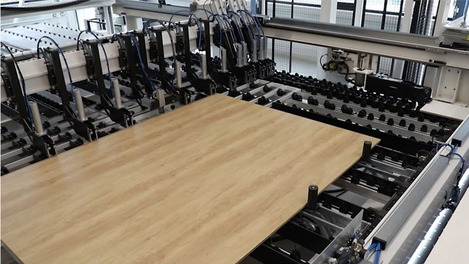

The Power Concept Advanced boosts output by up to 40 %, significantly shortens work cycles and reduces unit costs (option).
Turning device for headcuts: significantly increases performance with suiTable cutting patterns and reduces the amount of handling required (option).
The Power Concept Premium boosts output by up to 40 %, significantly shortens work cycles and reduces unit costs (option).
技術ハイライト
寸法通りのプログラムフェンス
頑丈な押さえビームでトップクラスの切断品質を実現
中央横押さえ装置: 鋸台車に直接統合することでサイクル時間を短縮
制御ソフトウェア CADmatic 5
– 直観的に理解できる
– ワイドタイプの Full-HD マルチタッチディスプレイ
– 統一された powerTouch ユーザーインターフェース
– 新世代3Dアシスタンスグラフィックが作業者が直感的に操作できるようにサポートします
– tapio に接続する準備ができました
– 視覚的なエラー診断人間工学を配慮した高さ 920 mm のテーブル
技術データ
鋸刃突出量 | 80 [mm] (オプション: 95 mm) |
切断長さ | 3,200/3,800/4,300/5,600 [mm] |
プログラムフェンス速度 | 90 m/分 |
鋸台車速度 | 最高130 m/分(オプション: 150 m/分) |
主鋸モーター | 11 [kW] (オプション13.5または18 [kW]) |
操作ソフトウェア | CADmatic 5 |
