ランニングソーSAWTEQ B-200 リフティングテ―ブル搭載型
手加工業での水平パネル切断用鋸:魅力的な価格、高性能、拡張可能。
SAWTEQ B-200は、手加工業での水平パネル切断に必要となるパワー、高精度、柔軟性を提供します。作業者は、広範囲にわたって装備された鋸をいつでも好きなように装着できます。このようにして柔軟性が確保され、要件に合わせて増えるカットソリューションを実現できます。
利点

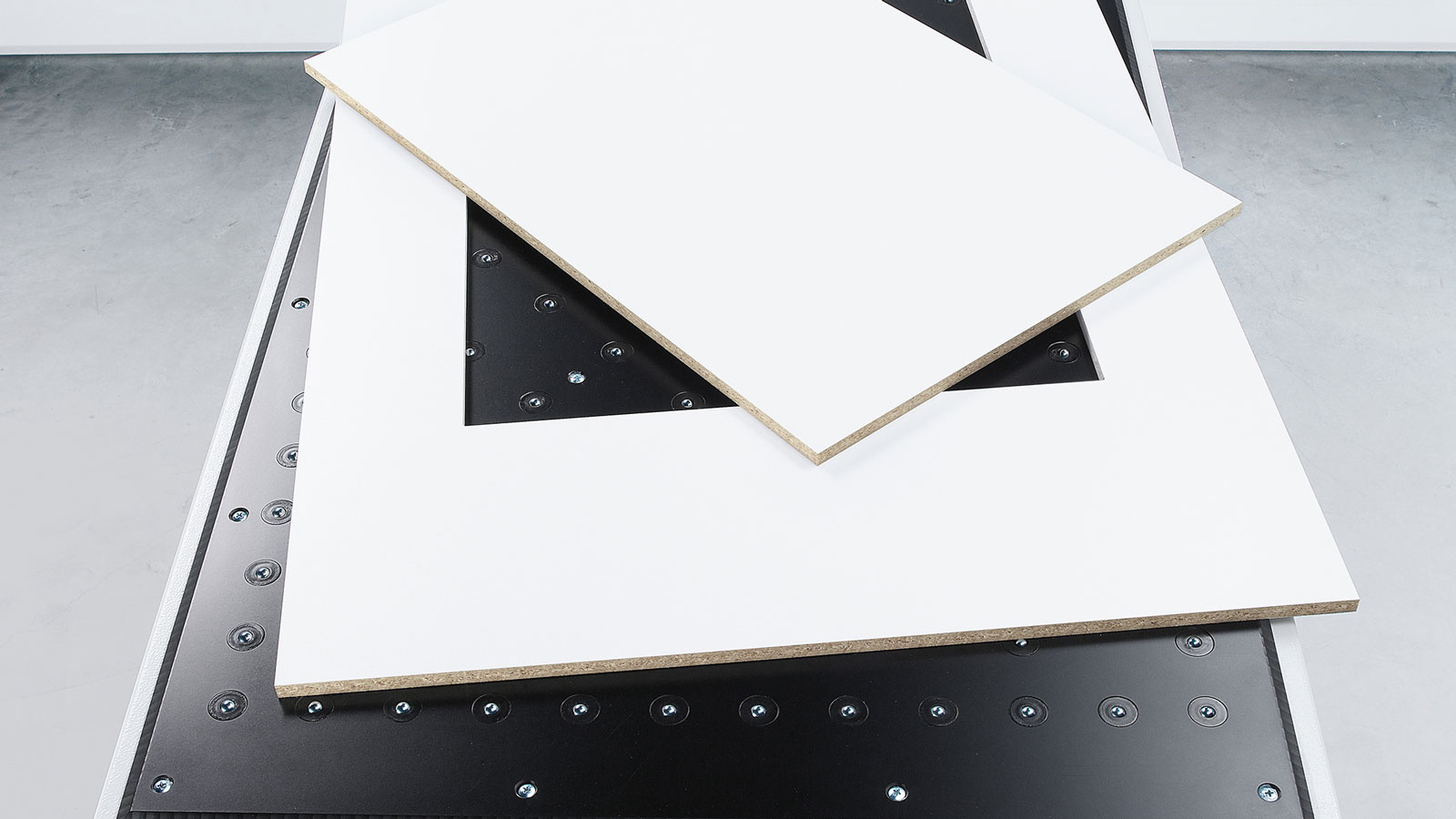

Cut-out option for simple creation of cut-outs, much easier handling than on a slidingtable saw (option).

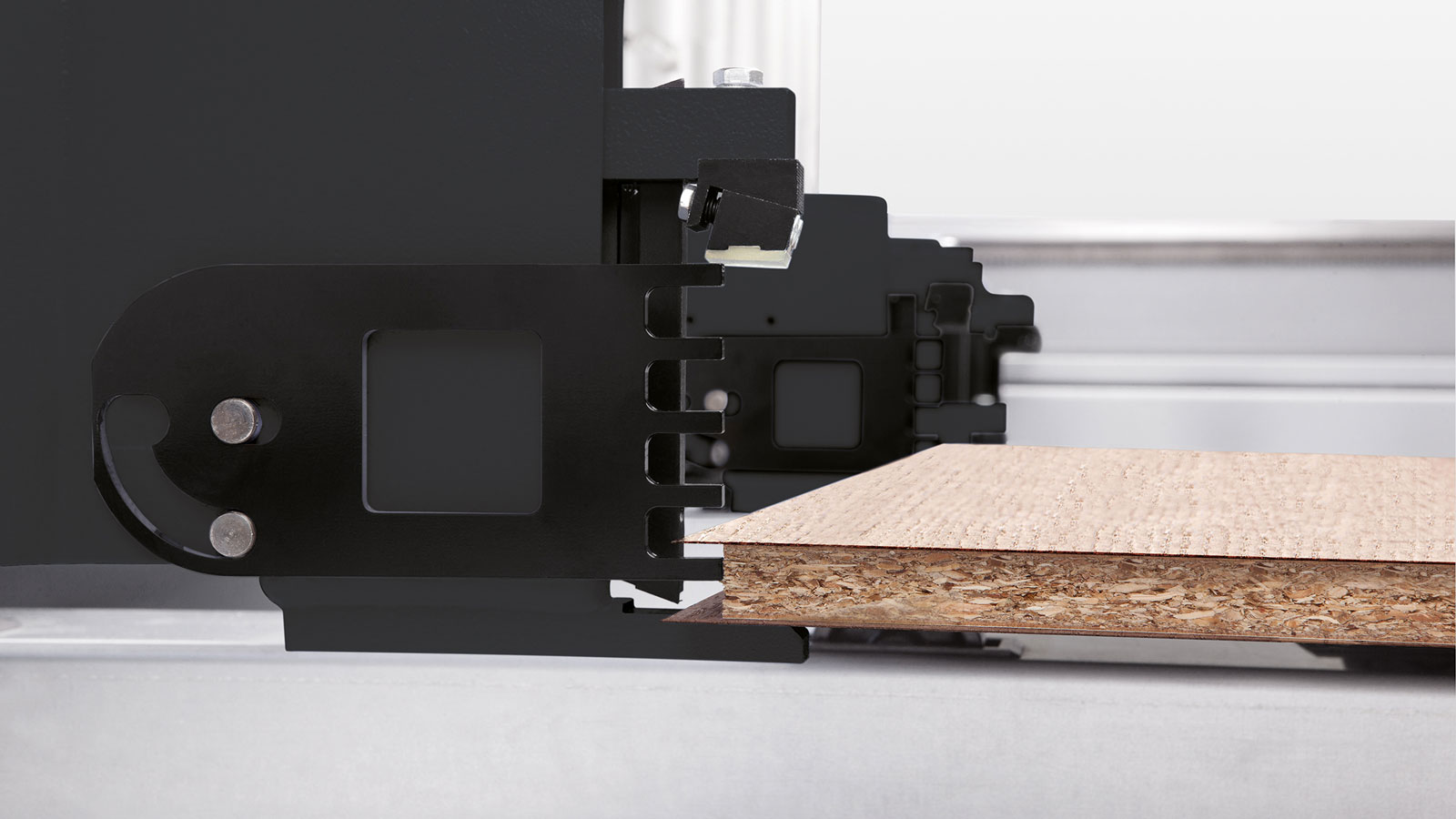

Manually operated trim stops: for precise positioning and safe processing of sensitive materials (option).

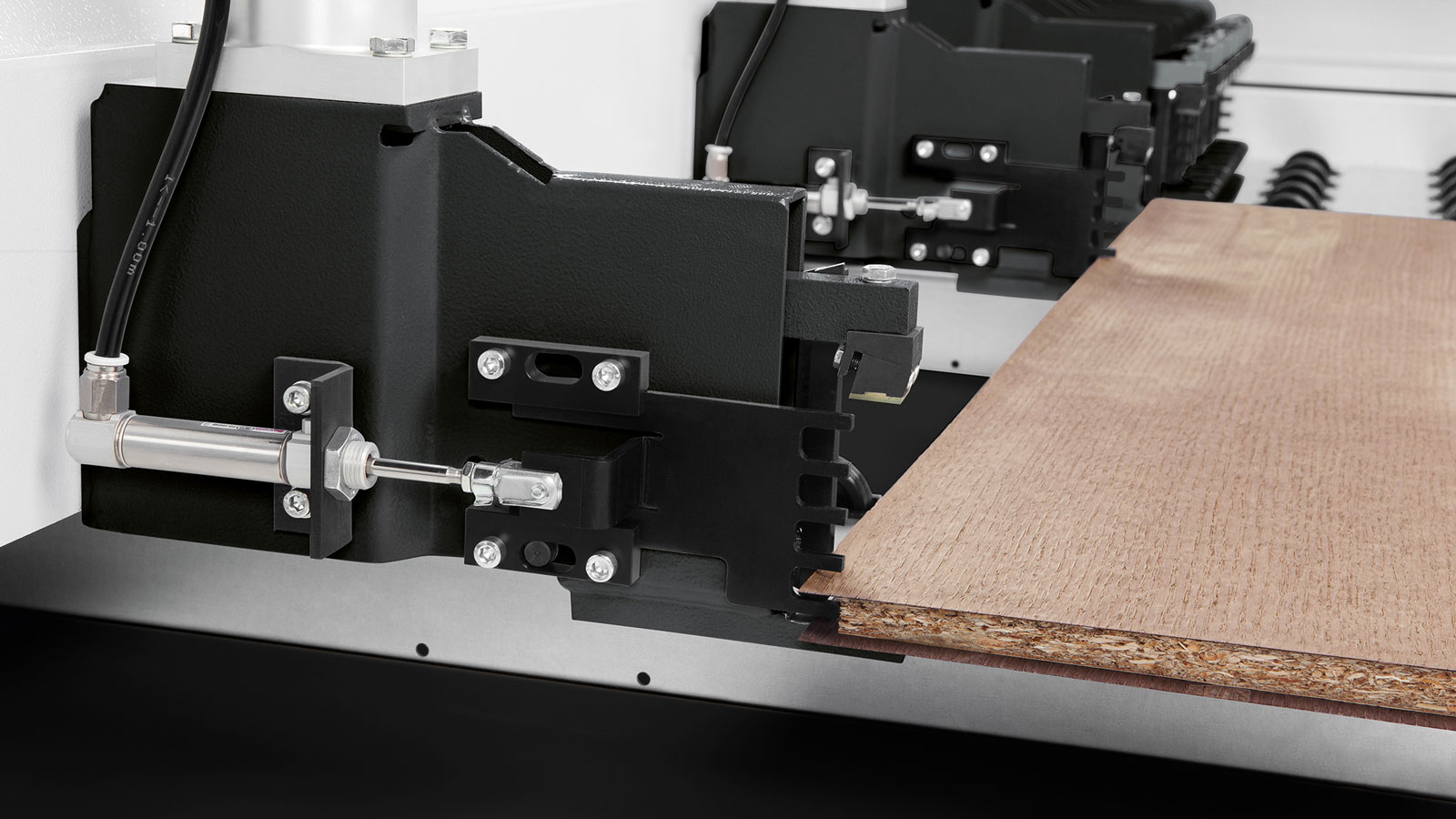

Pneumatically operated trim stops: for precise positioning and safe processing of sensitive materials (option).

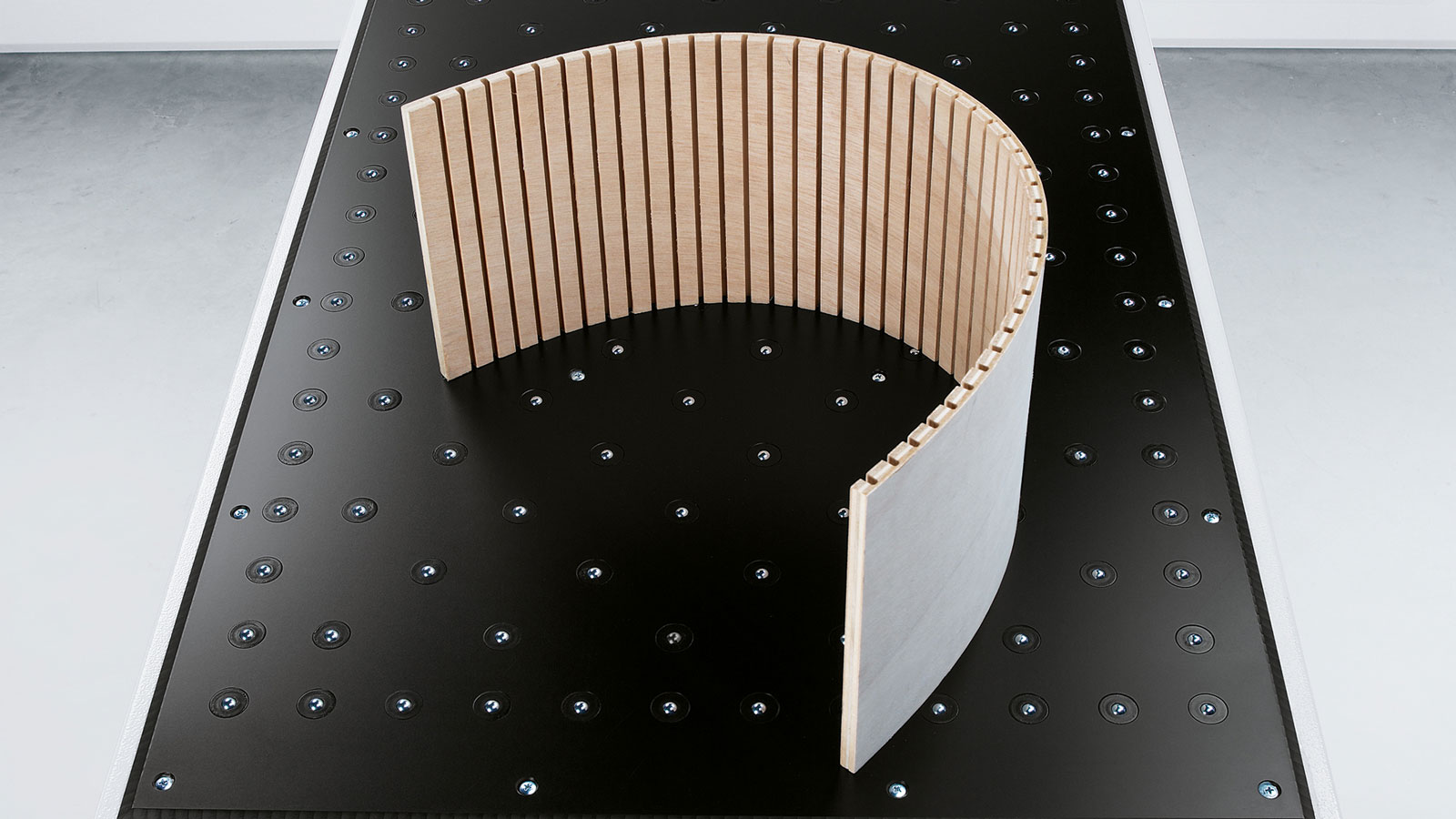

Grooving on the panel saw saves time, is easy to operate and is even suiTable for insertion grooves and rear wall grooves (option).
Custom-designed labels for parts identification: for automatic program selection on downstream machines (option).

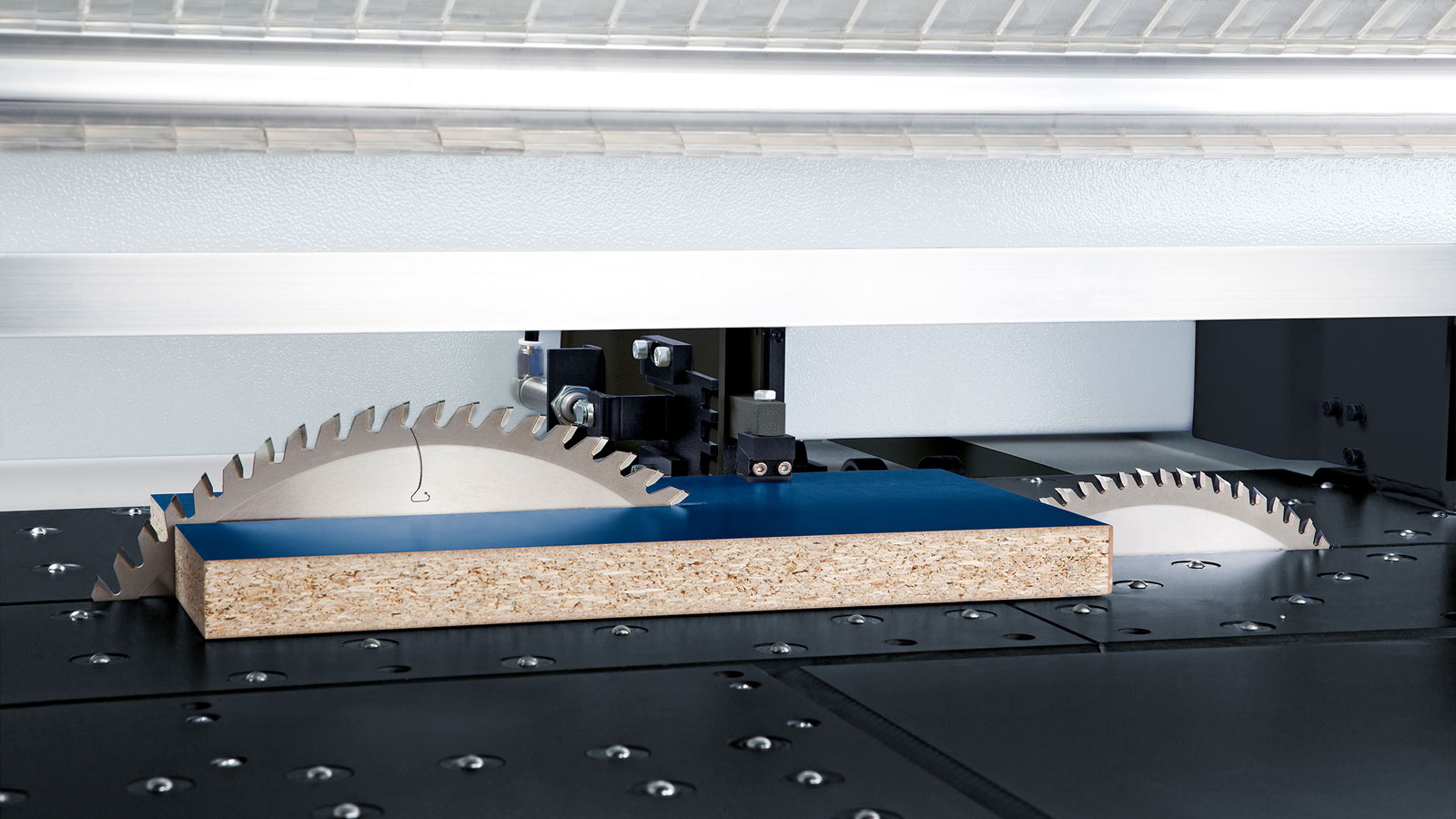

The postforming unit ensures a chip-free cut for softforming and postforming panels (option).

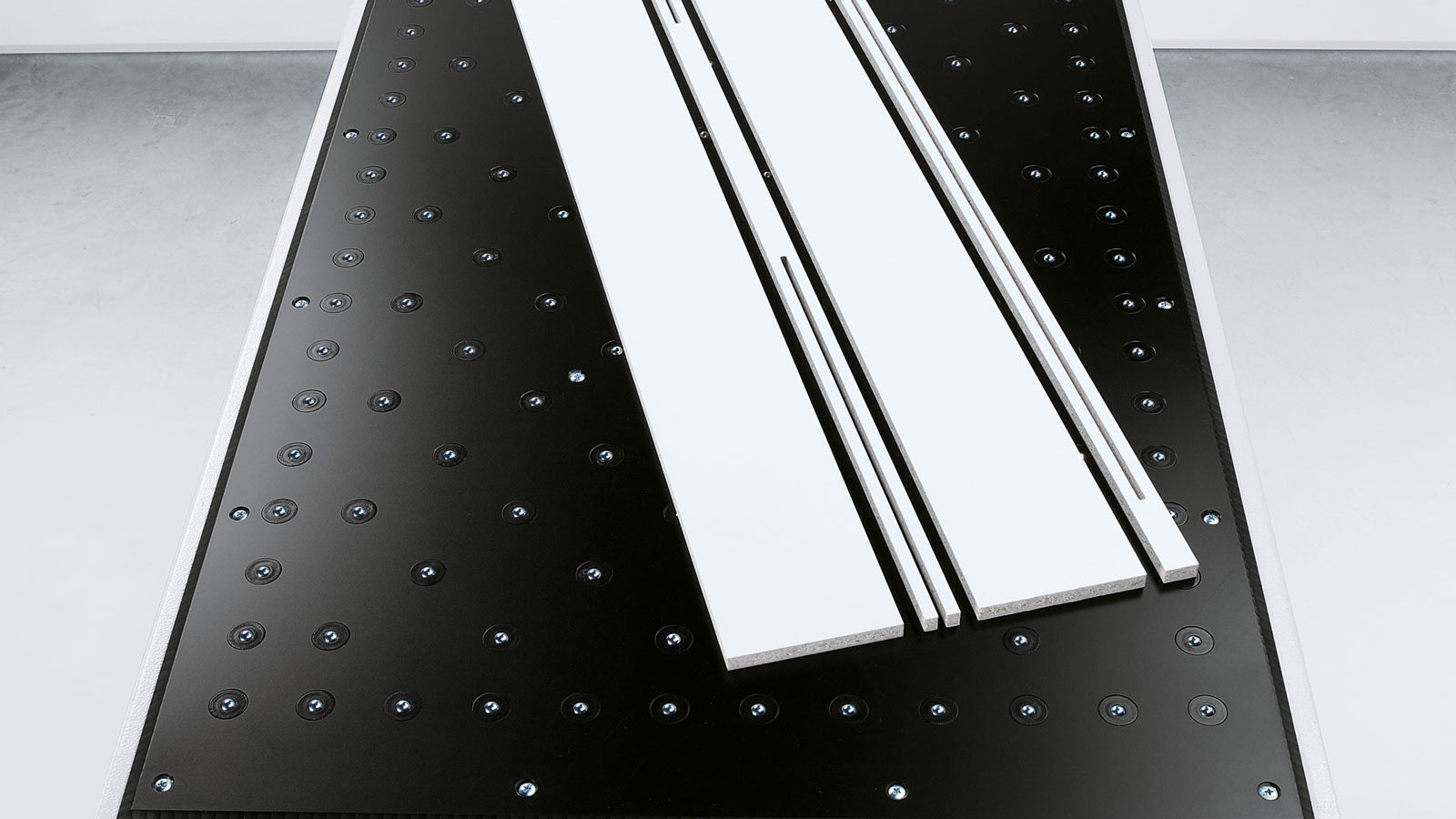

The stress-elimination cut releases the tension in the material, thus improving the dimensional accuracy (option).
The Power Concept Advanced boosts output by up to 40 %, significantly shortens work cycles and reduces unit costs (option).
技術ハイライト
直角フェンスのノックオーバーエッジ
加圧に弱い材料の場合に手動で圧力調整が可能 - 操作エリアに装着されているため快適なアクセス
簡単な倉庫接続が可能
クイッククランプシステム Power-Loc によって、主鋸と毛引き鋸の鋸刃交換がすばやく容易に行えるようになります
制御ソフトウェア CADmatic PRACTIVE
– 分かりやすい
– 視覚的なエラー診断
– 19 インチ TFT フラットディスプレイ
技術データ
鋸刃突出量 | 65 [mm] (オプション80または95 [mm]) |
切断長さ | 3,200/3,800/4,300 [mm] |
プログラムフェンス速度 | 最高80 m/分 |
鋸台車速度 | 最高80 m/分(オプションで最高120 m/分) |
主鋸モーター | 7.5 [kW] (オプション9.2, 11または18 [kW]) |
操作ソフトウェア | CADmatic 5 |
