Gentle on material, automatic and fast - The STORETEQ F-100 single-axis feeder supports panel dividing efficiently and flexibly

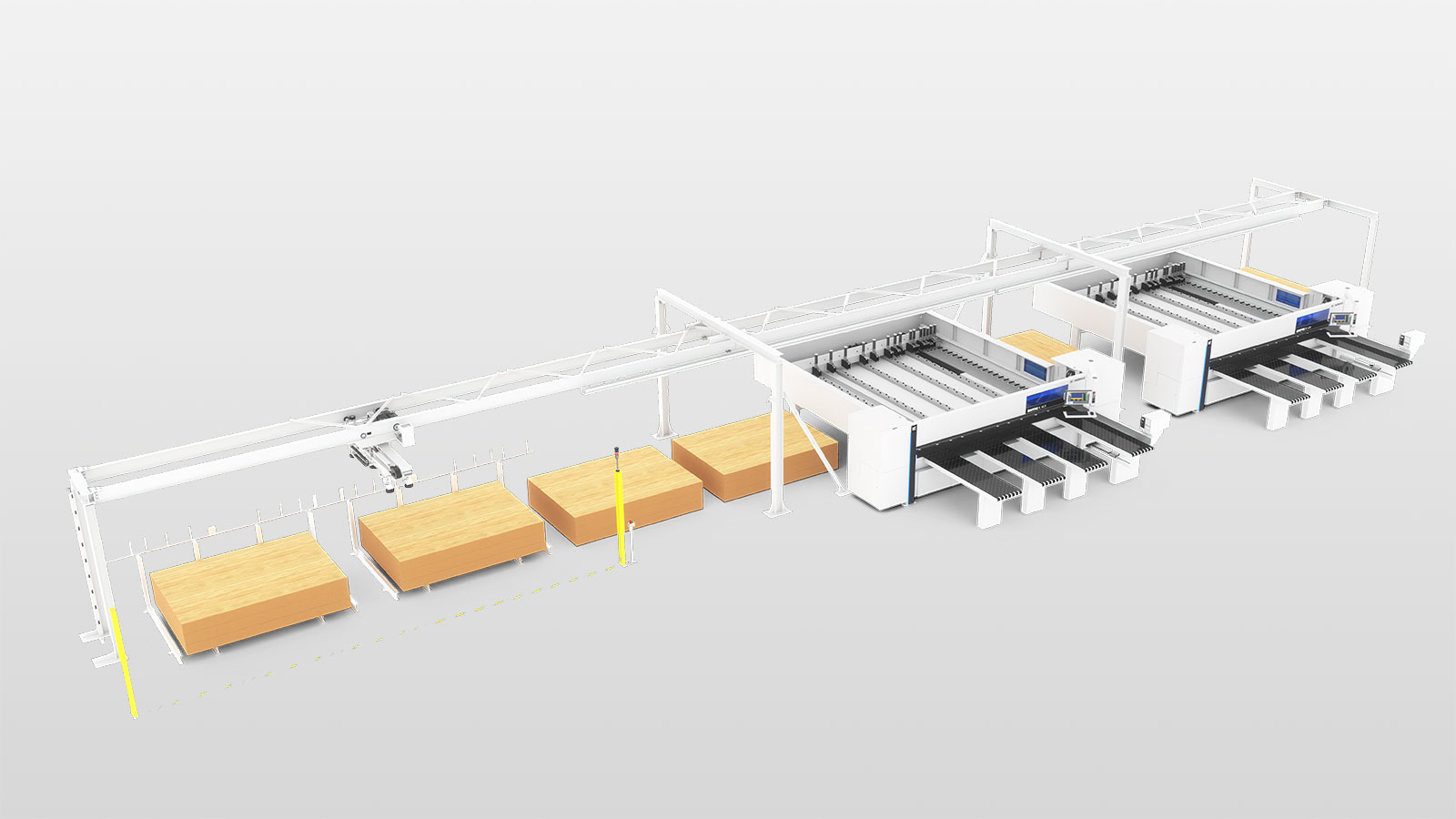

Efficient, ergonomic, and gentle on material: The new HOMAG STORETEQ F-100 single-axis feeder is a winner right down the line - and with minimal space require ments. Control, including off-cut handling, is particularly intuitive and simple directly at the saw via woodStore software. The gantry uses vacuum suction to fetch the next board just-in-time from the stacking area next to or behind the saw, rotates the material as needed, and places it in the saw. Everything is fully automatic.
Highlights
Intuitive and simple operation directly on the machine with the standardized HOMAG powerTouch machine control system. In combination with a SAWTEQ or CENTATEQ N-210 / N-510 from HOMAG, no additional operating terminal is required.
Automatic length adjustment of the suction traverse, as well as automatic panel weight detection.
Technical Data
| Panel size stacking space [mm] | 3200 x 2200 |
| Panel length [mm] | 2000 to 4200 |
| Panel width [mm] | 600 to 2200 |
| Panel thickness coated [mm] | 8 to 40 |
| Individual weight of panels [kg] | max. 250 |
| Stacking height [mm] | max. 1800 (optionally 2100) |
| carriage [m/min] | 80 |
| Lifting drive [m/min] | 25 |
