Panel dividing saw SAWTEQ O-100

Simply better, right from the start. For a more precise and efficient cutting process.

The SAWTEQ O-100 is highly suitable for woodworking shops that are ambitious. This model of the HOMAG panel dividing saws is equipped with everything needed for cutting single panels & small batches. A clear material flow around the saw & material handling working at the saw further increases the capacity. In addition, digital assistants help the operator to optimize the entire cutting process in terms of quality, quantity, and sustainability. This is achieved by proven HOMAG technologies. In short, the SAWTEQ O-100 is the solution for ambitious woodworking shops to improve productivity, and precise manufacturing at a reasonable price!

Product available only in Bangladesh, Bhutan, India, Nepal, Sri Lanka.

Benefits

Saves time and space, is very ergonomic and enables safe operation
Processing of a stack of two boards at once enables high productivity with precision, cutting quality and angular accuracy
Low maintenance costs due to the fact that the design has a small number of wear and tear parts
Automatic cutting feed: Only two operators are required
Strong efficient suction in the saw carriage for good dust extraction
Cutting Production Set for optimized digital assistance (optional)
Smooth movement by air table and perfection in measurement by DRO

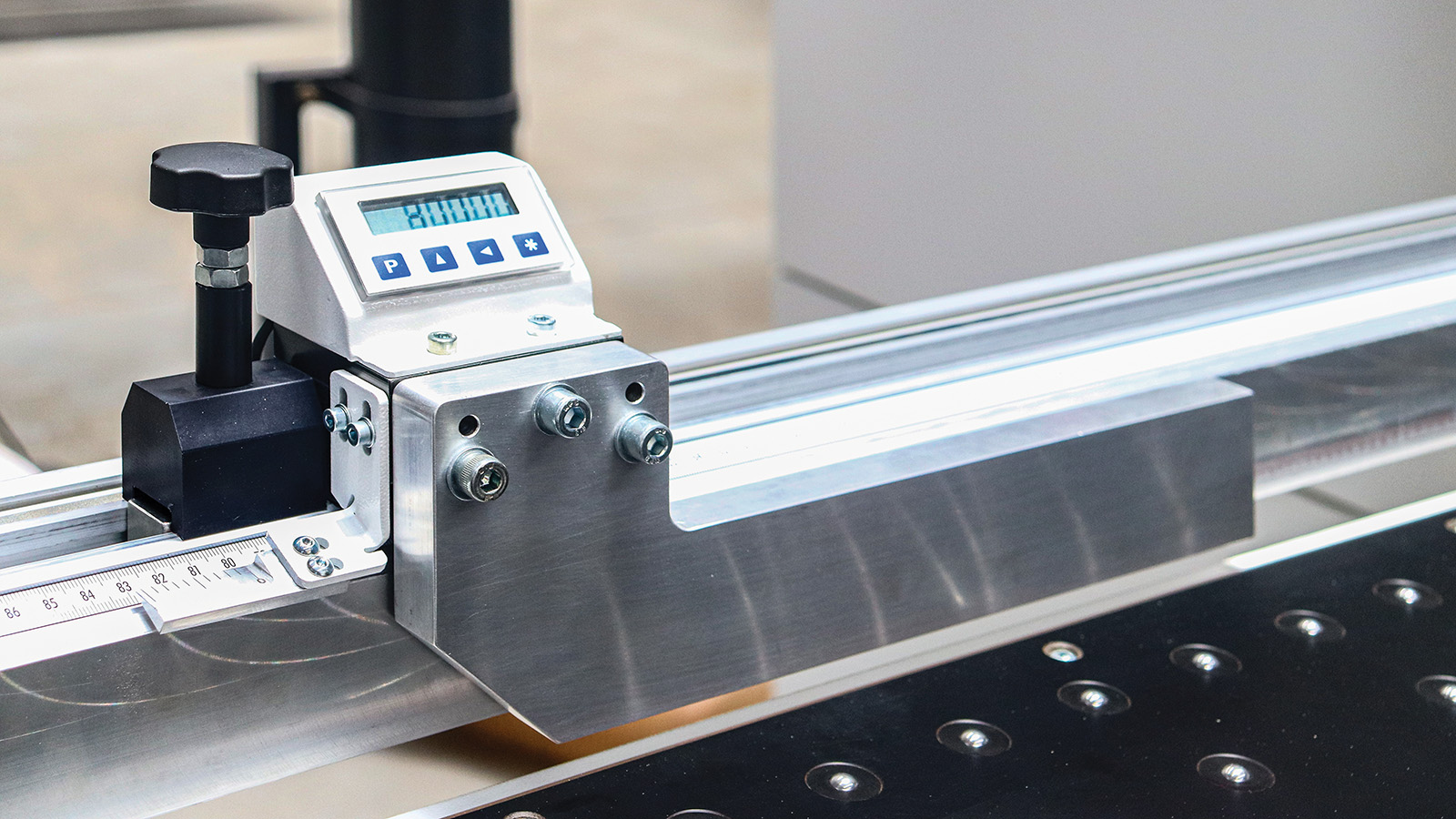

Aluminum profiled fence, precisely machined for maximum geometrical accuracy in cutting Precision digital read out for best dimensional accuracy

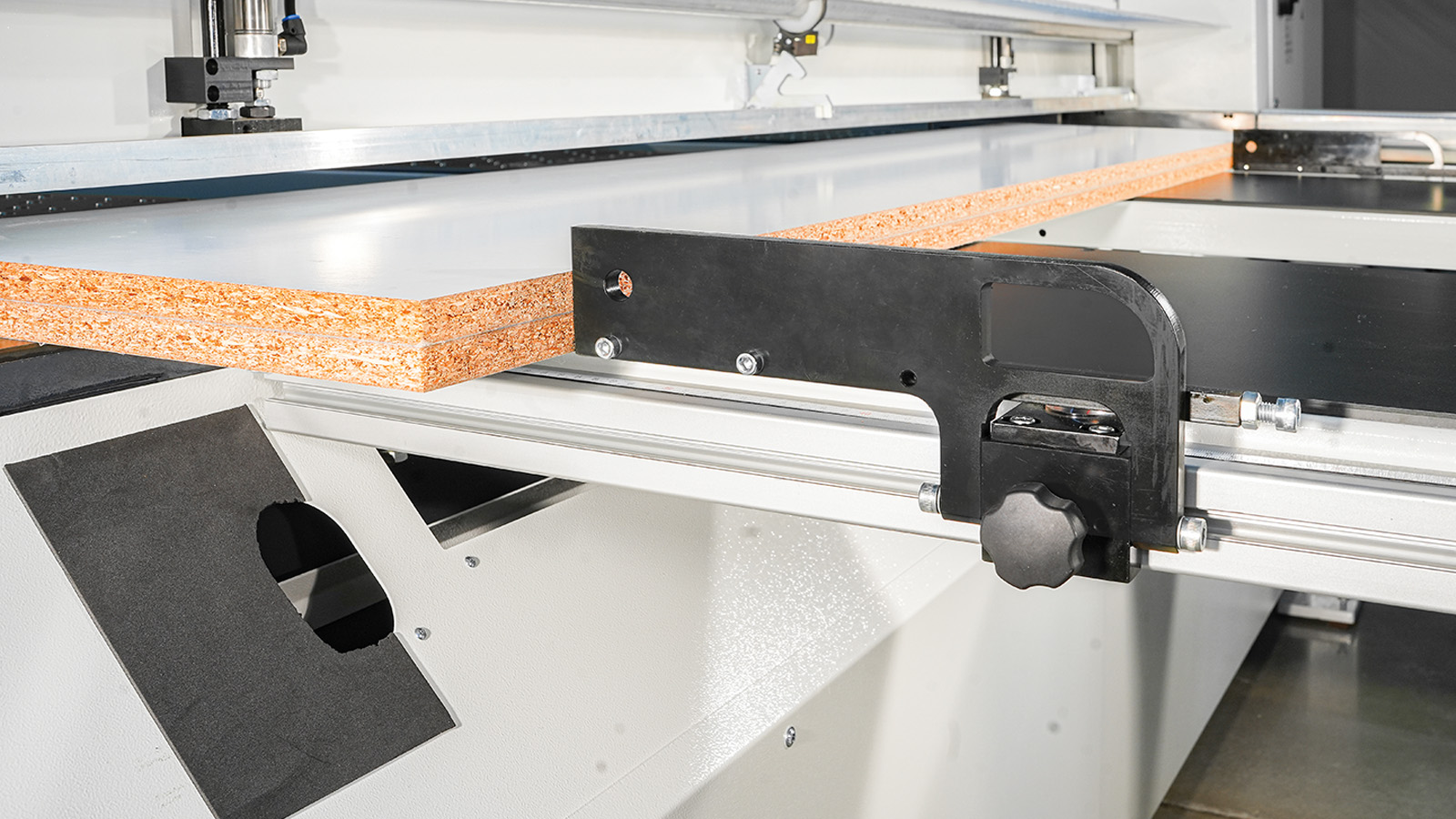

2 longitudinal fences on the rear tables for longer width workpieces User friendly stoppers with magnifying glasses & high quality steel scale for ease of positioning

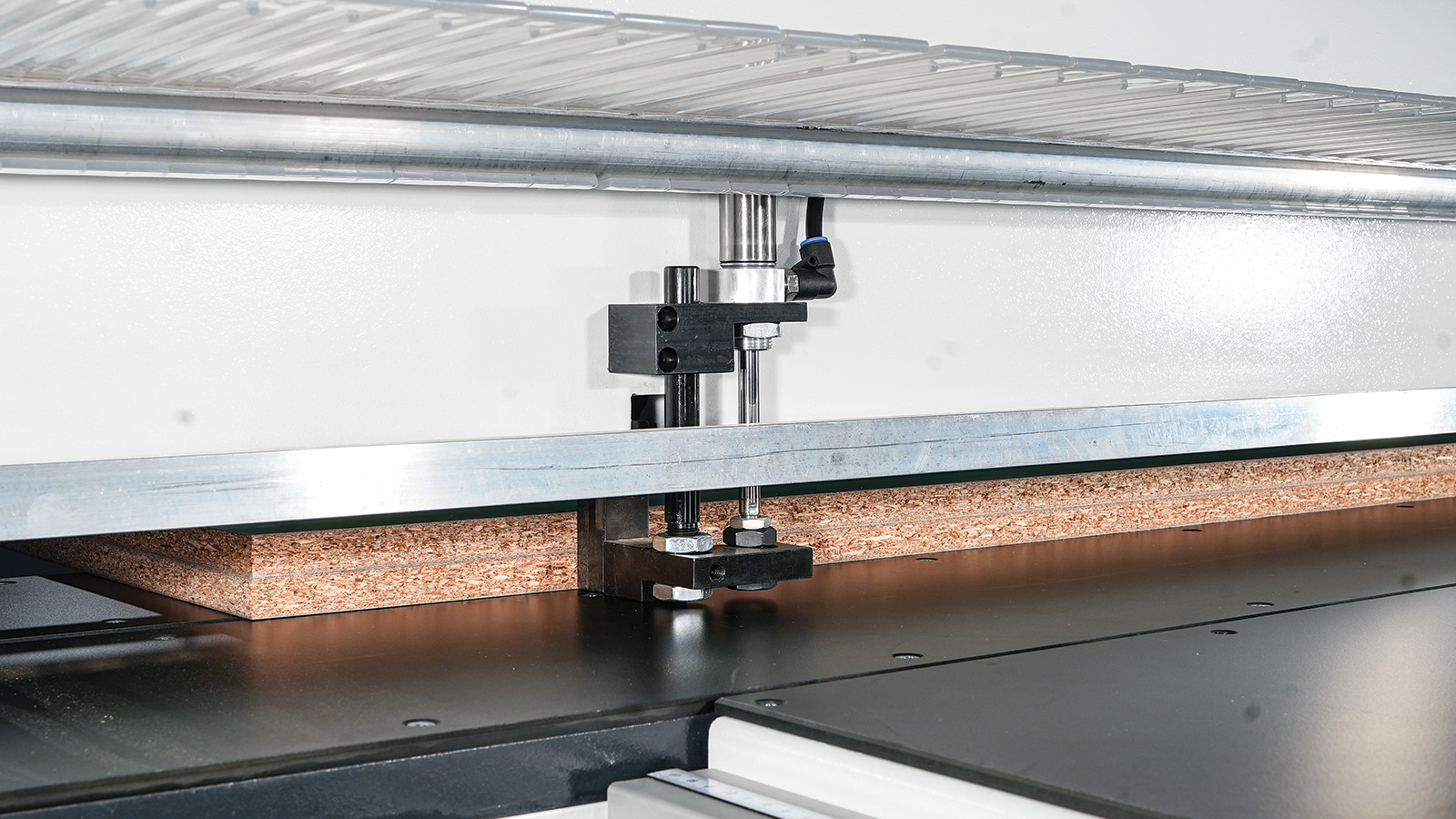

For quick formatting of the first edge of the panel 2 first cut devices on either side of the pressure beam

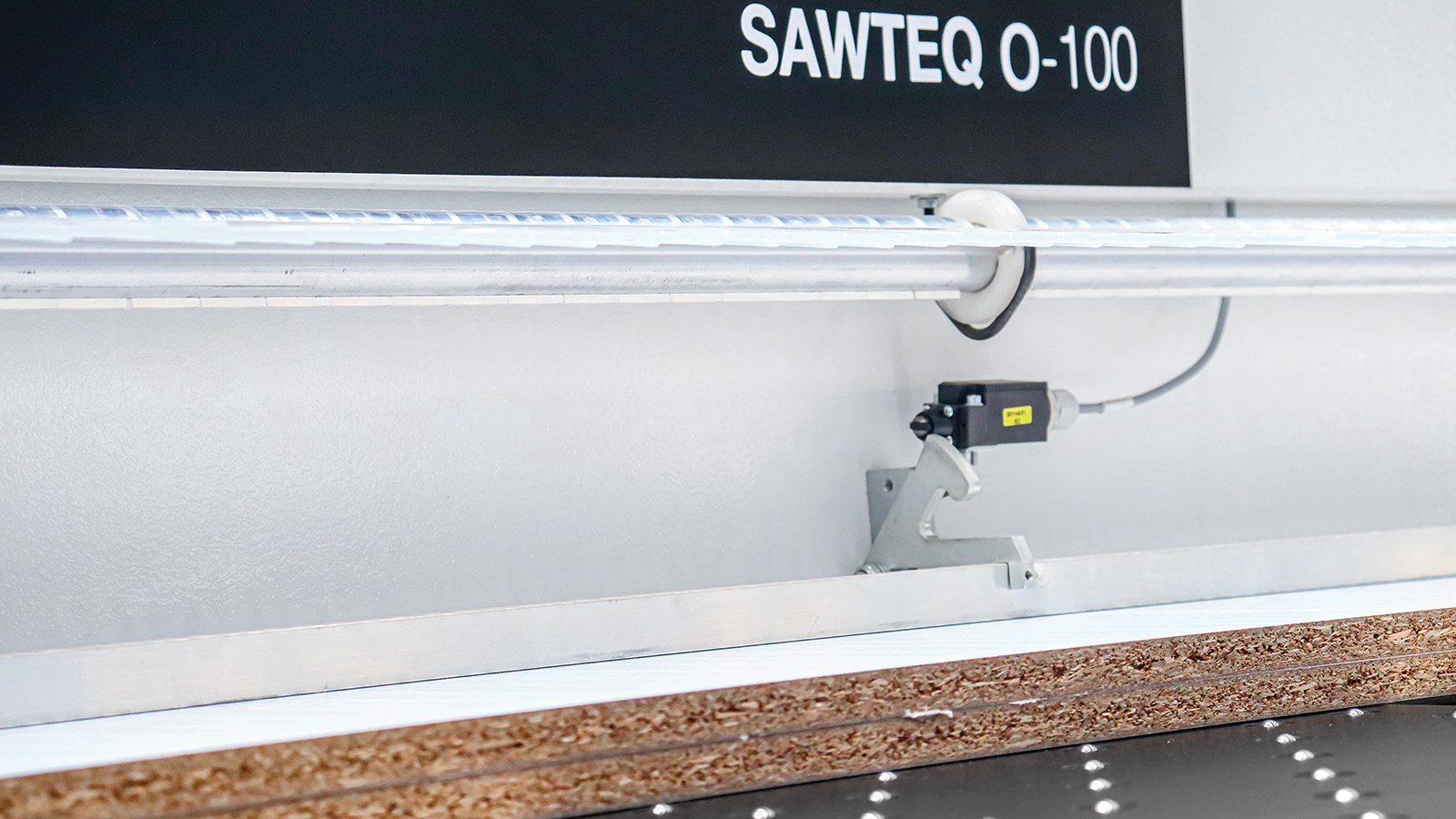

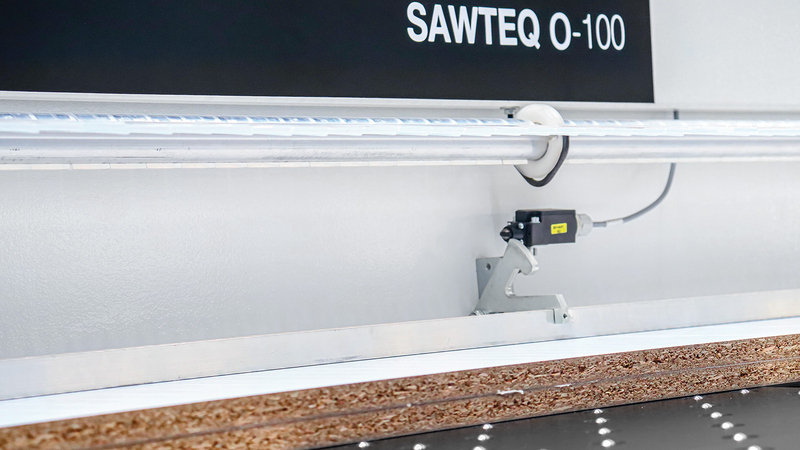

Pneumatically operated pressure beam for high quality, high precision chip free cuts Clamp surface lined with special gripper material enables no panel movement Effective and damage free clamping ensured

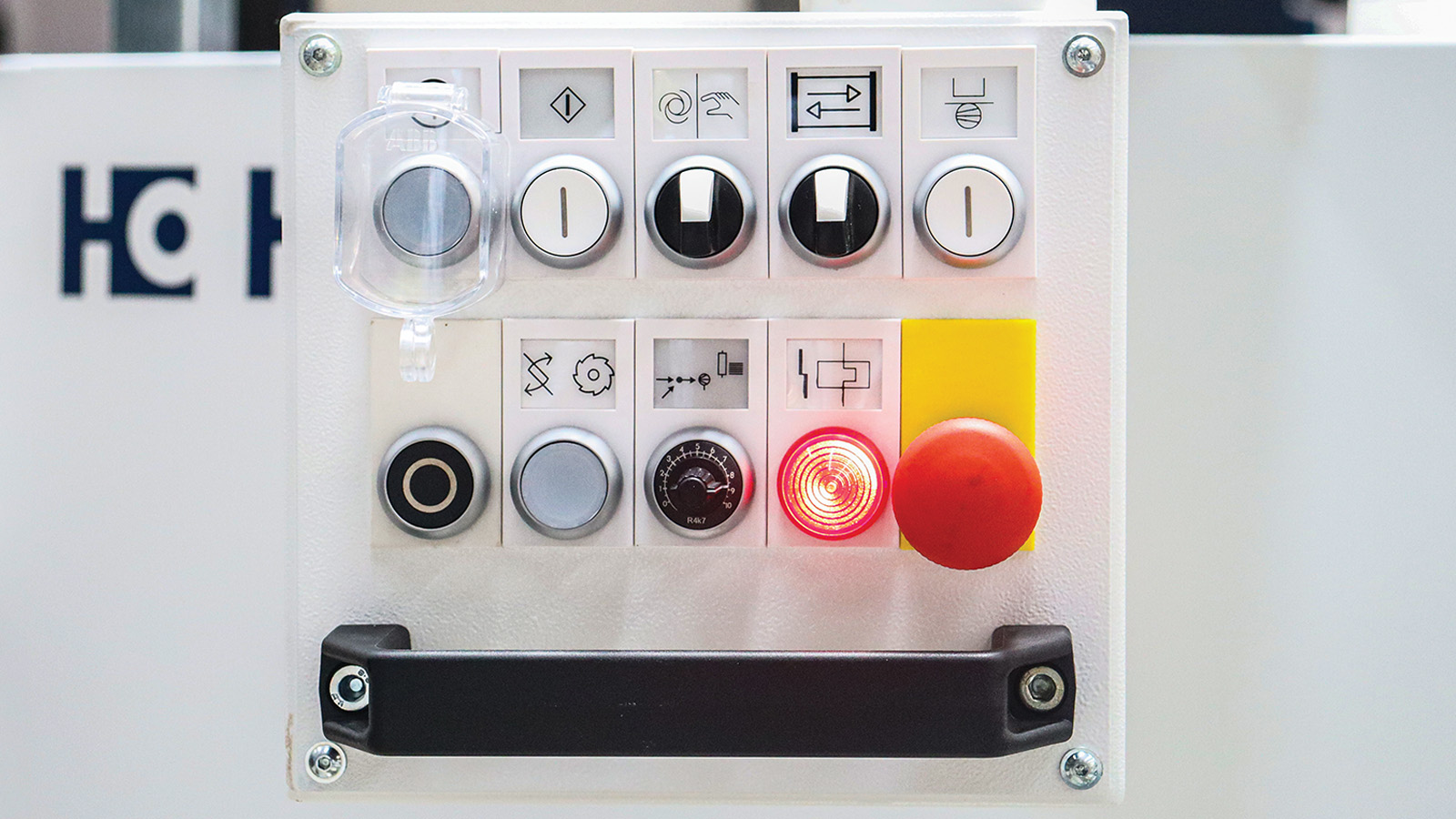

Ergonomically designed control console mounted on a swiveling pendant Can be operated from both front and rear side of the machine All controls within easy reach of the operator

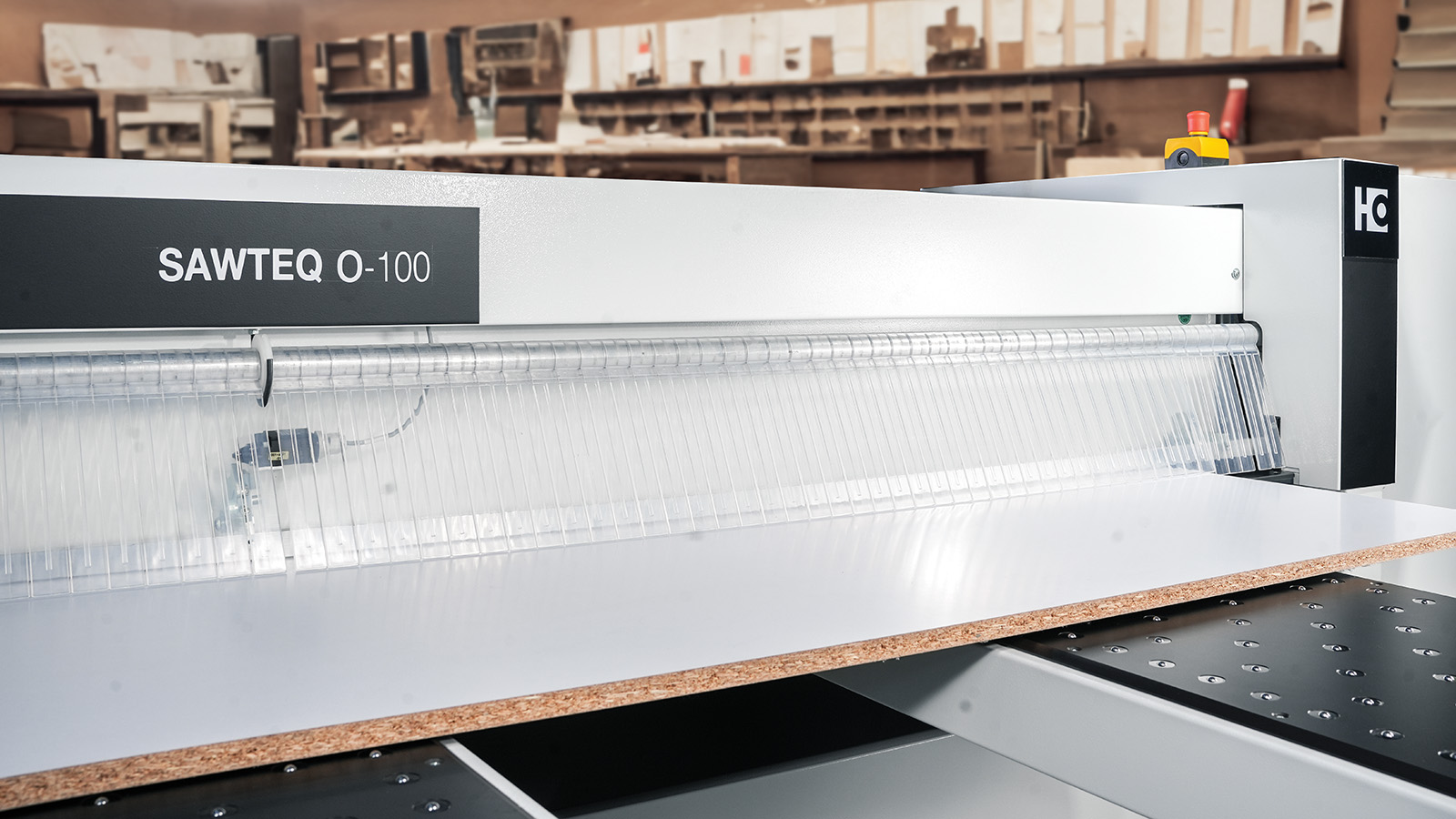

First level safety in both front & rear by way of plastic flap curtain Flaps open only to the length of the workpiece. The rest of the area is closed, preventing accidental hand insertion by the user · If safety beam is lifted up, (due to accidental insertion of hand by the user) during clamping cycle, the feedback sensor reverses the clamping cycle and stops the machine, preventing serious injury to use

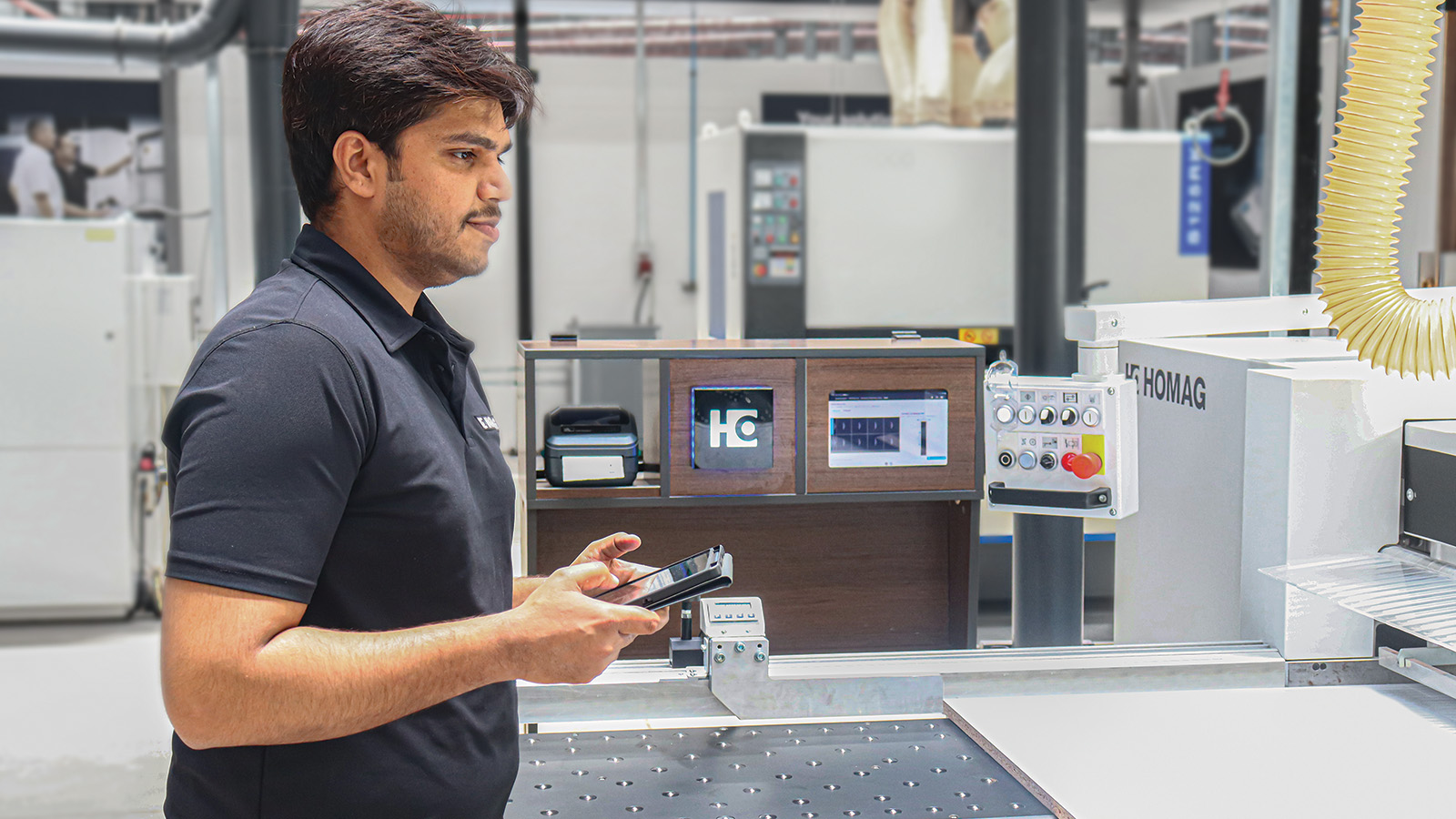

Cutting optimization & label printing for ANY saw. Our cutting assistant supports you in optimizing your cutting patterns, in labelling the parts and in the cutting process on your manual saw. Simply optimize your cutting patterns with a click and transfer them to the app on your tablet in the workshop. There, you work through the cutting pattern with the help of a clear display in the app – and print an individual label for each part. This way, each workpiece has all the info for subsequent processing. The assistant was developed for use on ALL sliding table saws, vertical saws or horizontal panel saws - regardless of type, age or manufacturer.

Technical Data

Model	SAWTEQ O-100
Saw blade projection [mm]	60
Cutting length [mm]	2,900
Working height [mm]	920
Saw carriage speed [m/min]	0 - 30
Main saw blade [mm]	300 x 4.4 x 60
Scoring saw blade [mm]	150 x 4.4-5.25 x 45
Main saw motor [kW]	5.5 (7.5 kW as an option)
Connected load [kW]	8.5 (11.5 kW as an option)
Required compressed air supply [bar]	6
Air consumption [NL/min]	100
Dust extraction port size [mm]	2 ports Ø 160 and Ø 100
Extraction system [m³/h]	2,600
Machine weight [kg]	1,500(Approx.)
Air blower volume [m³/h]	1,000
