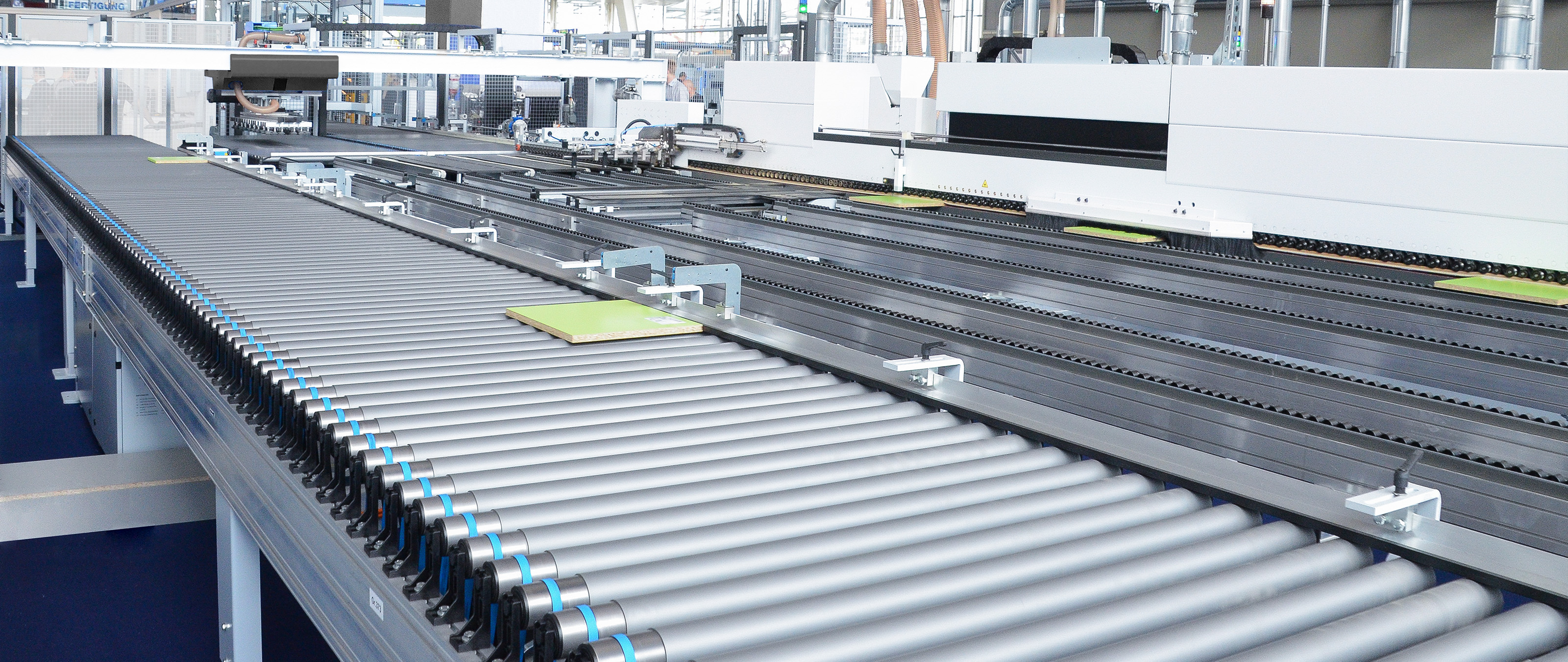

Edge circulation unit LOOPTEQ C-300

Professional format and edge processing

The dynamic edge circulation unit is the matching solution for a highly efficient format and edge processing. Thus the LOOPTEQ C-300 provides the prerequisite for a flexible furniture production whether in series or as production in batch size 1.

(Edge circulation unit TFU 720)


  • High performance ratio du to continuous, true-to-cycle infeed
  • Low personal need due to automated circulation
  • High repetition exactitude in positioning of panels
  • Low machine height
  • Standardized, ergonomic operation
  • Damages in panels are virtually excluded
  • Operating machines may produce with maximum performance

Any questions?
We are at your service!

Stiles Machinery, Inc.

+1 616 698 75 00 info[at]stilesmachinery.com Contact form

  • The LOOPTEQ C-300 perfectly harmonizes in size, capacity and speed with HOMAG Group's format and edge banding lines

  • Fluent processes, as the operating machines connected to the circulation unit may produce automated

  • Variable positioning of workpieces in longitudinal or crosswise direction due to rotation in -90°, +90° and 180°

  • High drive dynamic with only 0.4 seconds per lifting movement and 1.3 seconds for 90° rotations

  • The space need for transport and displacing of workpieces is reduced to a minimum

Workpiece length240 - 3,000 mm
Workpiece width120 - 1,200 mm
4-sided processing min. workpiece length240 x 120 mm
4-sided processing max. workpiece length3,000 x 1,200 mm
Workpiece thickness12 - 50 mm
Workpiece weigth max.50 kg
Capacity max.12 cycles/min
