Double-end tenoner TENONTEQ D-800

Double End Tenoners TENONTEQ S/D-800

Double End Tenoners TENONTEQ S/D-800

Single-sided and double-sided power machines for specialized requirements

Whether you are processing large or small quantities, completing profiling work on panels, completing inner or outer profiling work, or using wood or alternative materials, these double-end profilers are extremely flexible. Choose the units for your individual needs from our tried-and-tested range of modules. The tools are quick and easy to change and we can tailor the associated automation concept to your requirements.

Benefits

  • Wide range of uses: parallel cuts, angle cuts and beveled cuts, dimensioning, profiling, rabbeting, grooving, corner and contour processing
  • High processing precision and repeat accuracy
  • Wide range of materials
  • Excellent availability thanks to the robust, low-wear technology

Features

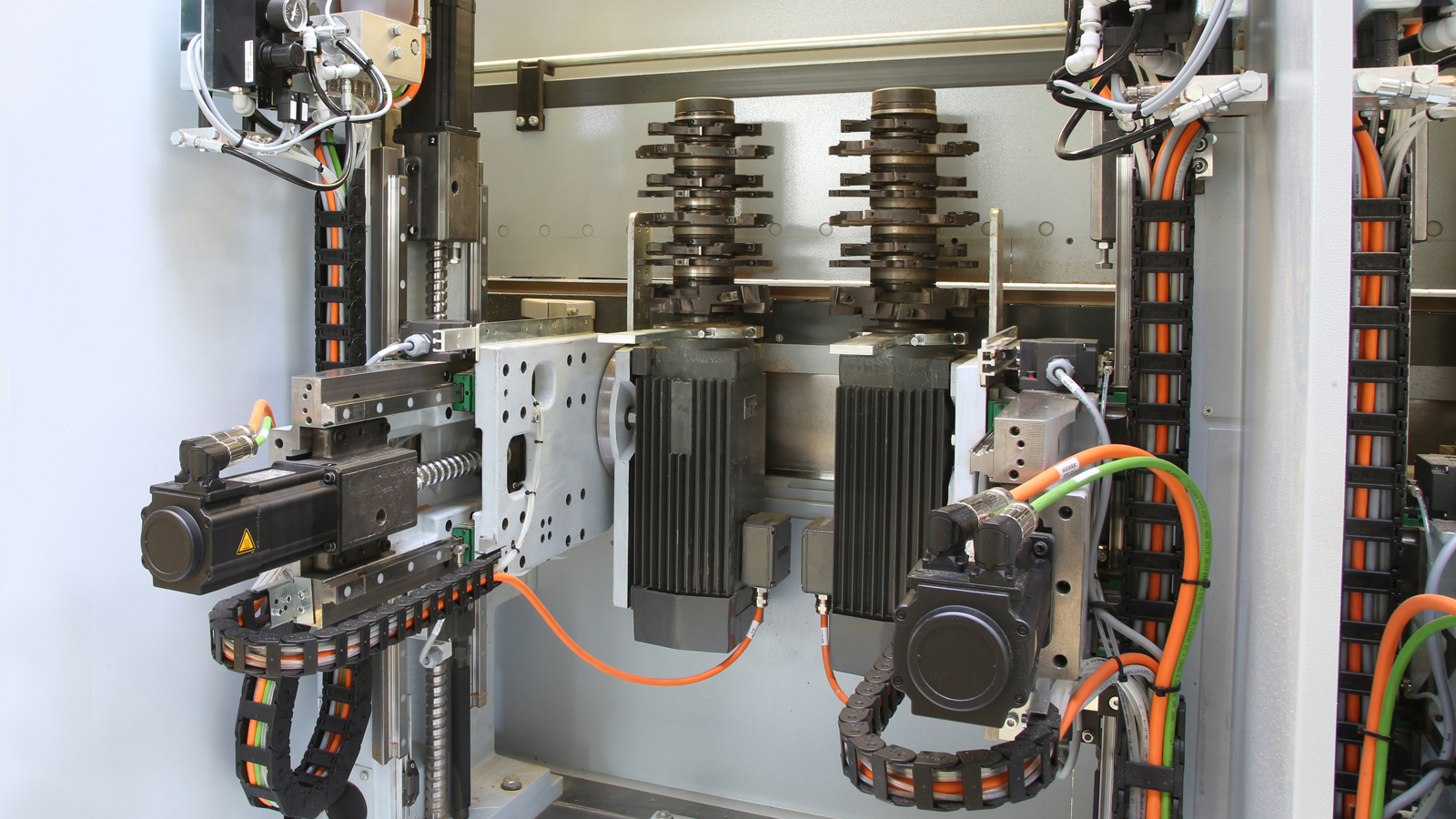

  • SF30 standard trimming unit for trimming, rabbeting, profiling etc., electro-pneumatic control system, swivel range of 90°

  • SF62 trimming unit with an automatic 8-slot tool changer

  • Compact double chipping unit for tear-free processing of veneered or plastic-coated panels

  • KS10 belt sanding unit for sanding straight veneered and solid wood edges

  • Central cutting equipment for separating and grooving workpieces between the chain tracks

  • CF technology enables processing of rounded or cambered shapes or profiled parts on framed doors and panel doors

Technical Data

    TENONTEQ S/D-800
Freely available length [mm]
TENONTEQ S-800 one-sided min. 850, max. on request - dependent on unit equipment
TENONTEQ D-800 double-sided min. 850, max. on request - dependent on unit equipment

(Previous product name: Double-End Tenoner FPL 600: for furniture and component production)
