Control software CADmatic 5

Intuitive machine control – simple, fast and clearly structured: these are the strengths of CADmatic 5

The latest version of our professional machine control system leaves nothing to be desired. Its many powerful features and innovative touch operation, which guides the user by means of an innovative assistance graphic, see to that. What’s more, all HOMAG saws with CADmatic 5 now come tapio-ready as standard, allowing direct access to cloud-based high-performance software.

Benefits

Intuitive operation via Full HD widescreen multi-touch display
Familiar environment due to the standardized HOMAG Group user interface powerTouch
Full control and overview thanks to 3D assistance graphic with preview and review feature in real-time
Simply reliable, for example due to graphically supported diagnostics

CADmatic PROFESSIONAL: Cut-out and stress-elimination cut

CADmatic PROFESSIONAL: Material-dependent parameters

CADmatic PROFESSIONAL: Just-in-time optimization

CADmatic PROFESSIONAL: Manual production list

CADmatic PROFESSIONAL: Destacking module LITE

CADmatic PROFESSIONAL: Storage location management for offcuts

CADmatic PROFESSIONAL: Automatic angle cut

Cut-out and stress-elimination cut (option).

Material-dependent parameters – you only need to enter the parameter settings for each material once. This reduces setup times. (Option)

CADplan – for manual cutting pattern optimization directly at the saw. (Option)

Just-in-time optimization – allows you to import part lists directly from the office and process them at the saw. (option)

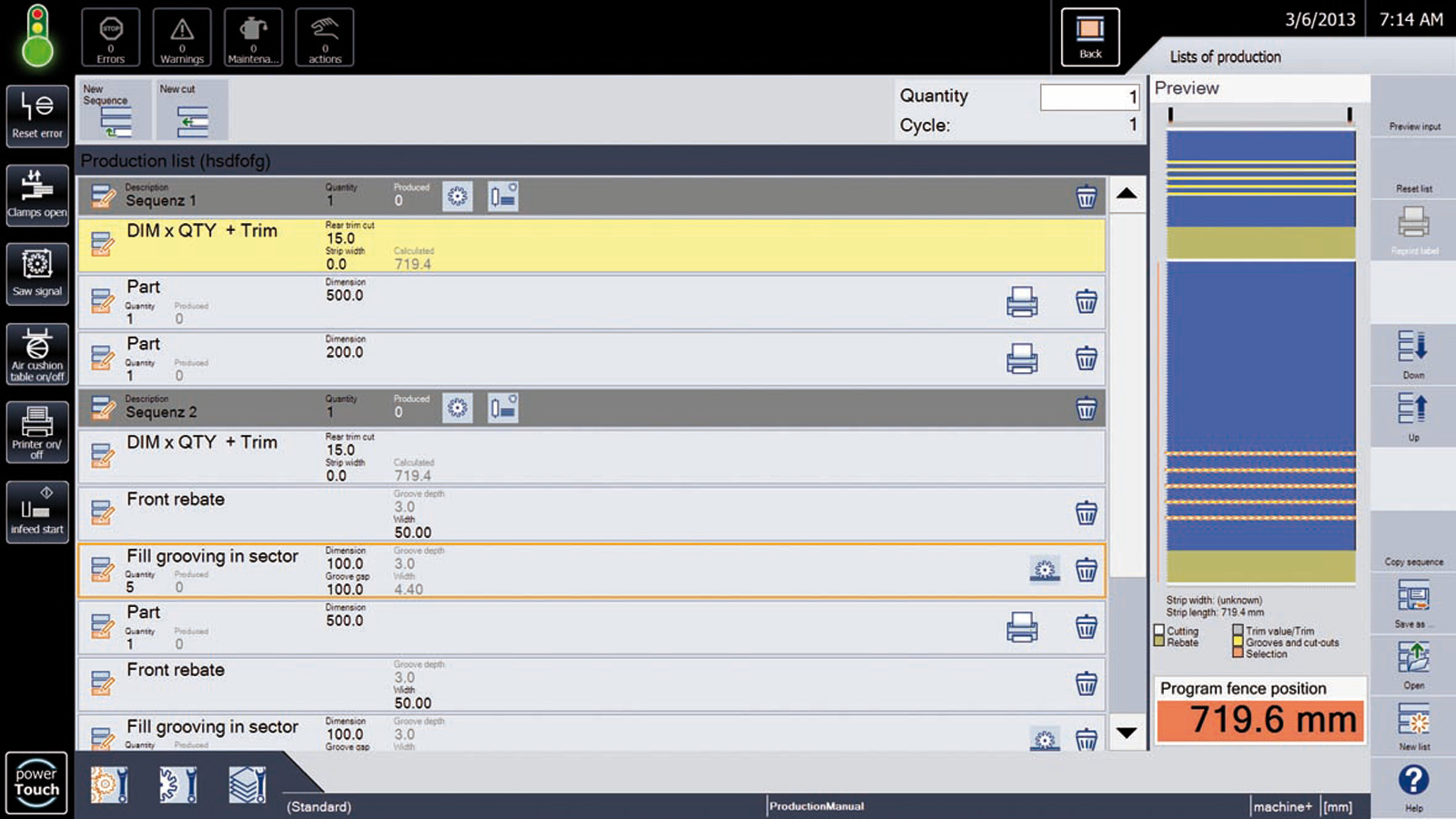

Manual production list – shows you all the facts at a glance (option).

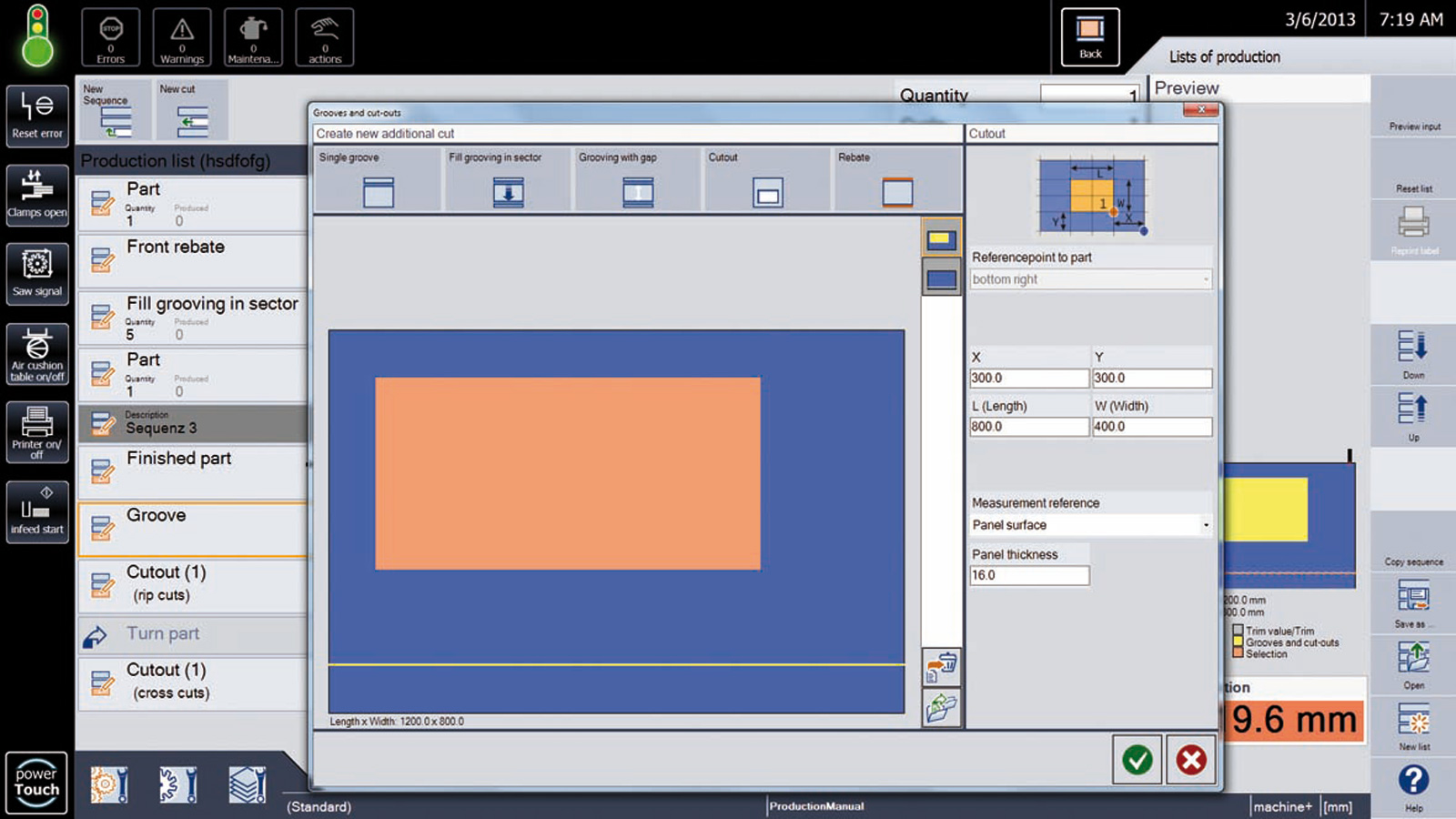

Manual production list – one clearly arranged input screen for all work steps (option).

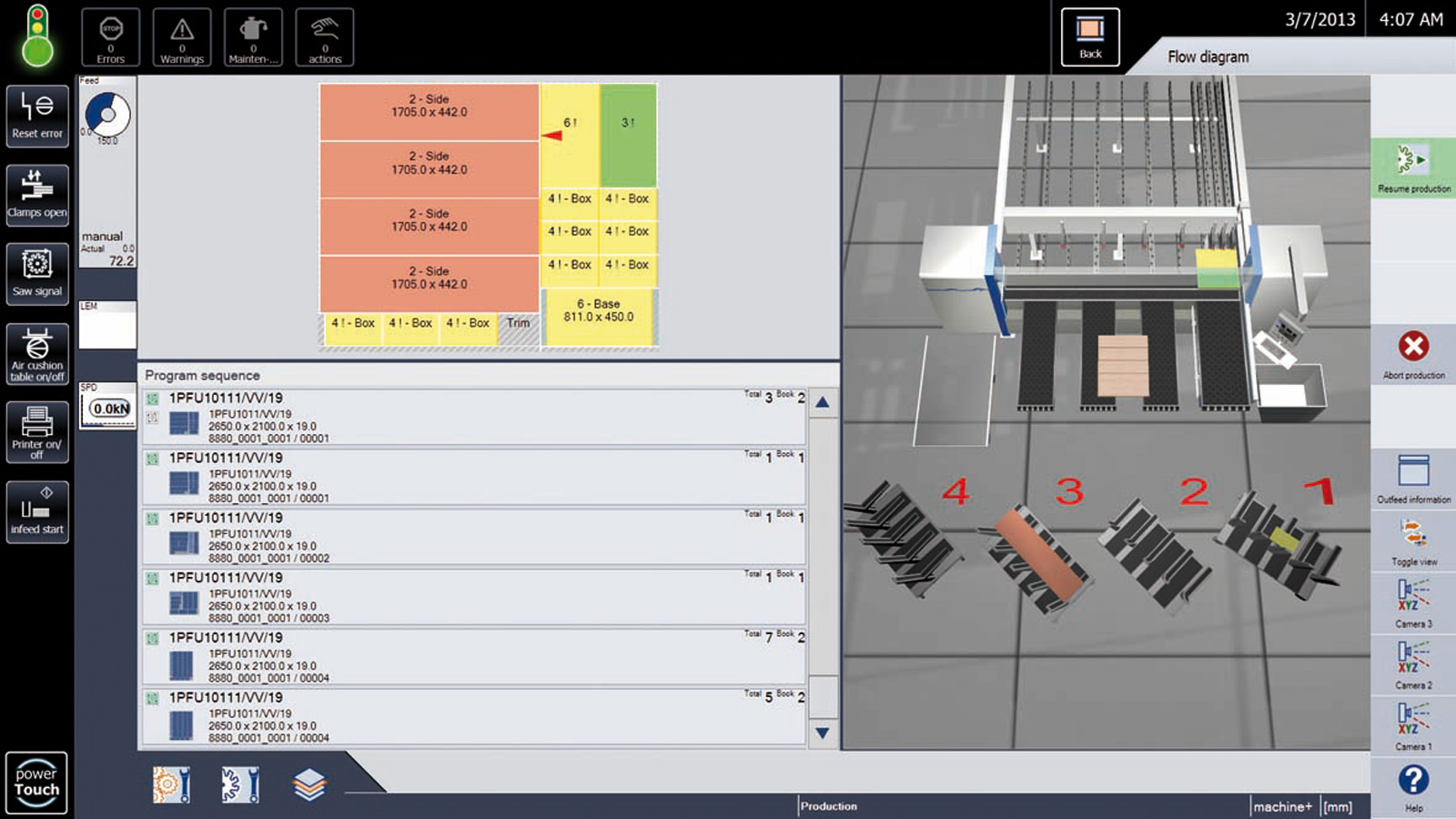

Destacking module LITE – individual parts are color-coded in the cutting pattern and in the process graphic (option).

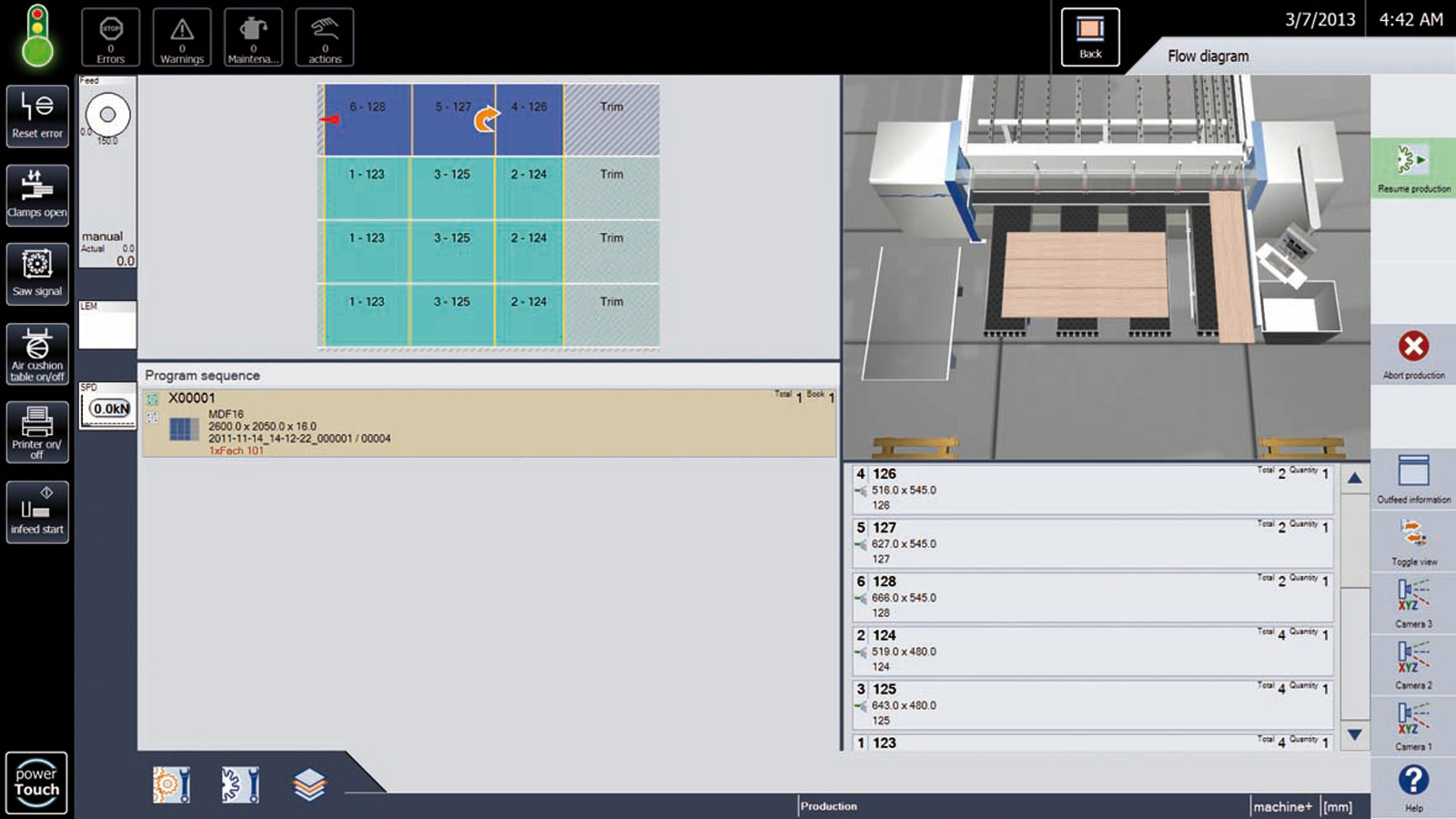

Storage location management for offcuts – offcuts to be retrieved are indicated in the process graphic (option).

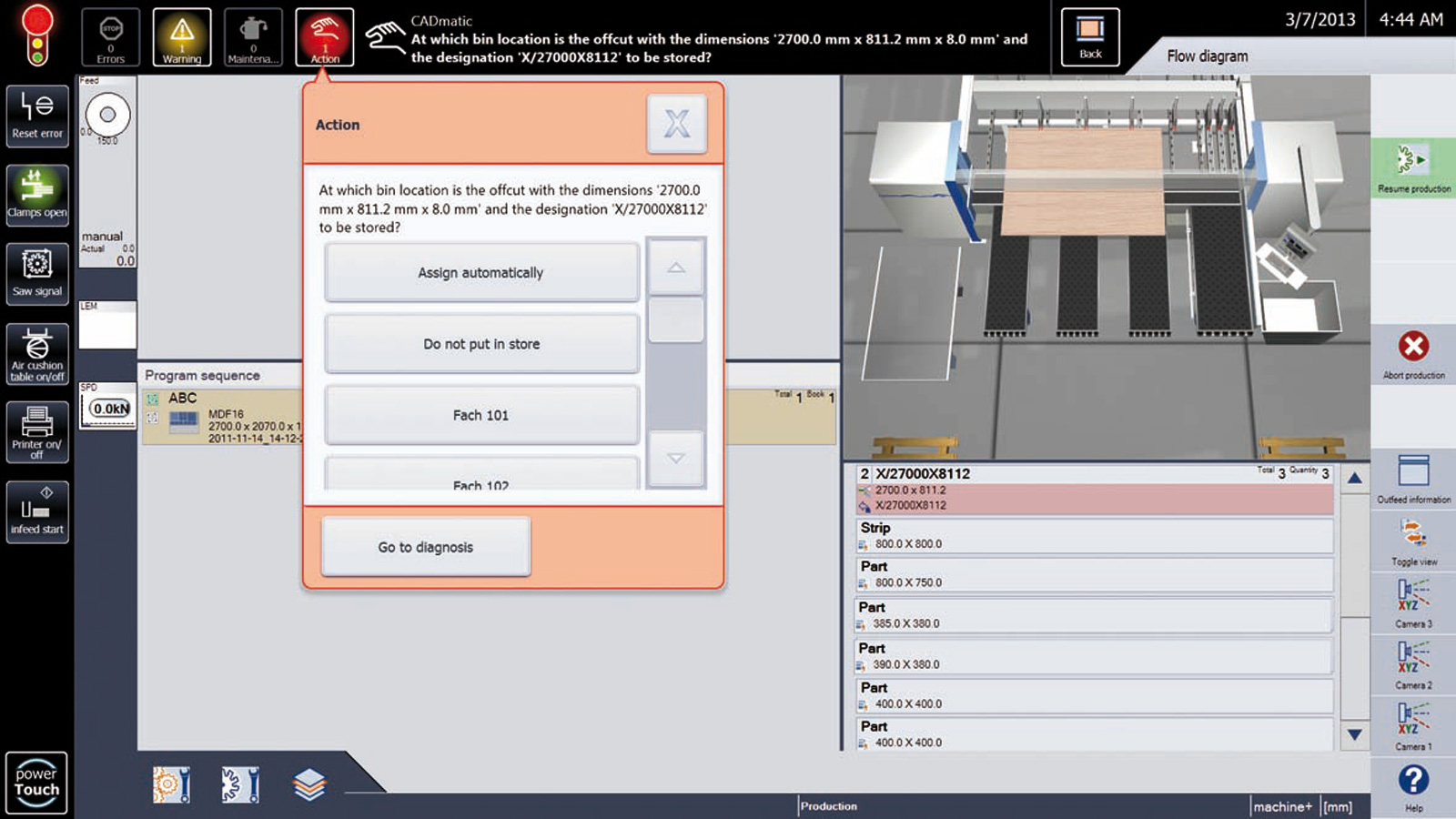

Storage location management for offcuts – allows you to clearly structure your offcuts store in next to no time (option).

Automatic angle cut – for quick, convenient and precise angle cuts (option)

Features

Straightforward cutting pattern entry via graphical user interface
Quick, simple cutting at the touch of a button
"Simple cutting to length" cuts strips into any differently sized parts
Simple cutting of manually created patterns without complicated settings
The cutting pattern management feature saves all the cutting patterns that are created and allows them to be retrieved at any time. This saves time and reduces costs.
Comprehensive parameter and tool management
