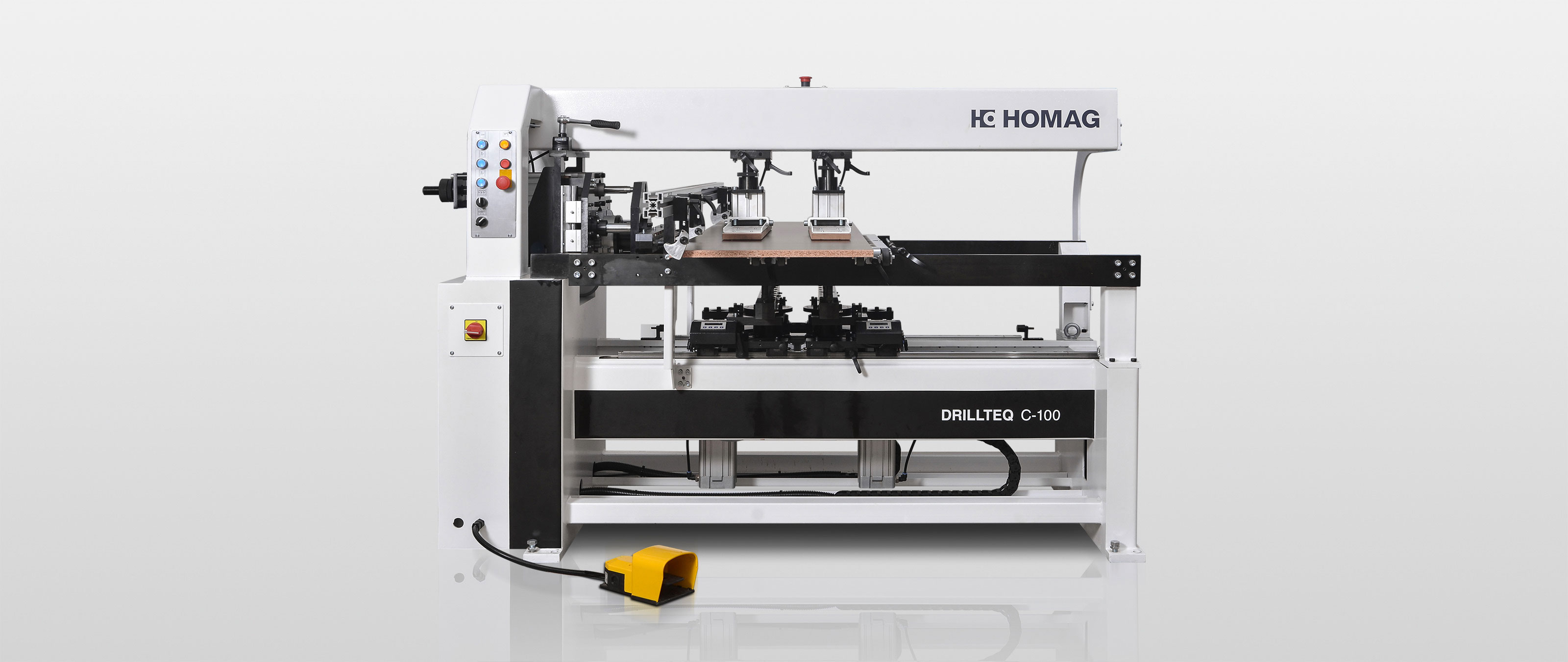

CNC-Dowelhole-Drilling Machine DRILLTEQ C-100 NBS 090 – Exclusive for India

Perfect dowel hole drilling for customers in India.

The dowel hole drilling machine DRILLTEQ C-100 – NBS 090 is an universal dowel drilling machine with a long range of equipment and has two tasks: drilling and dowelling with perfection.

(NBS 090)

Benefits

  • Solid machine frame with 2 beam design
  • Twin LM guide system for longitudinal traverse of vertical drill heads
  • Highly precise drill blocks with 21 spindles
  • Quick change collets system
  • Continuous 32 mm pitch (also between the drilling blocks)
  • Quick swiveling vertical drilling blocks, fixing at: 0° - 90°
  • Large working area with extended scale

 DRILLTQ C-100 – NBS 090
Travel range X - Y - Z [mm]900 - 3100 - 40
Workpiece width [mm]30 - 2000
Workpiece length [mm]30 - 900
Workpiece thickness [mm]5 - 60
Drilling spindles, horizontal21 Spindles
Drilling spindles, vertical21 + 21 Spindles
Drilling stroke [mm]95

Product available only in Bangladesh, India.
