Cardboard-box Cutting and Closing Machines PAQTEQ S-200

Cardboard-box Cutting and Closing Machines PAQTEQ S-200

Perfect packaging, fully automatic

The Cardboard-box closing machine PAQTEQ S-200 safely and economically closes completely packed cardboard boxes with side closure in a fully automatic way. The result is a cleanly closed cardboard box, which optimally protects products during transport. Whether batch size 1, small series or serial production, the PAQTEQ S-200 flexibly adjusts to your requirements and demands.

Benefits

  • Consistently high packaging quality by sealing the cardboard boxes using hot-melt
  • High performance, up to 10 cardboard boxes/min in series production
  • Flat packaging from minimum box height 22 mm
  • Can work in stand-alone operation as well as being integrated into a complex packaging line
  • Intuitive operation thanks to powerTouch

Images

  • Automatic closing of ready-packed cardboard boxes with side closure.

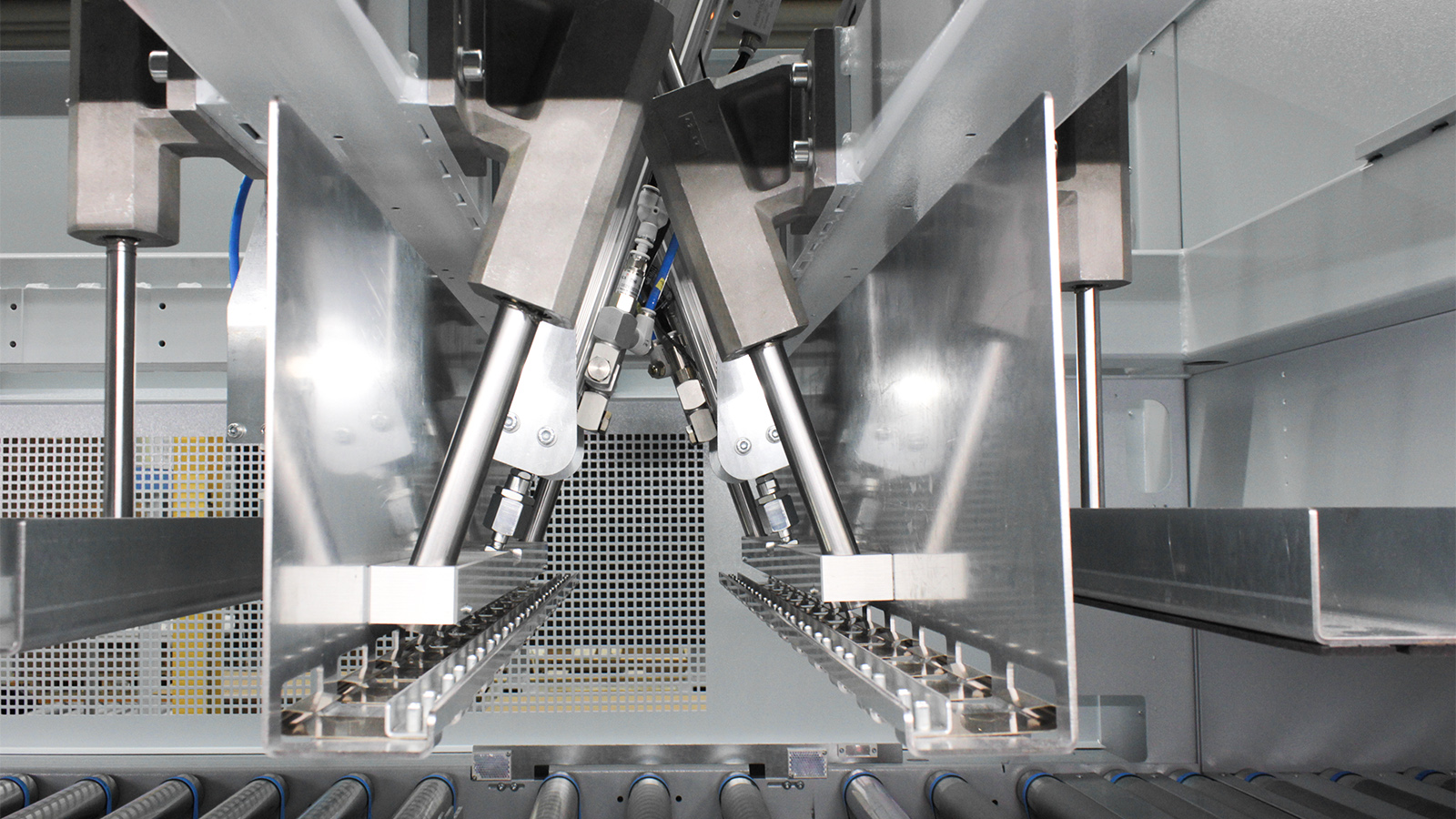

  • Batch size 1 due to automatic cardboard box measuring at the infeed and fully automatic adjustment of the closing mechanisms.

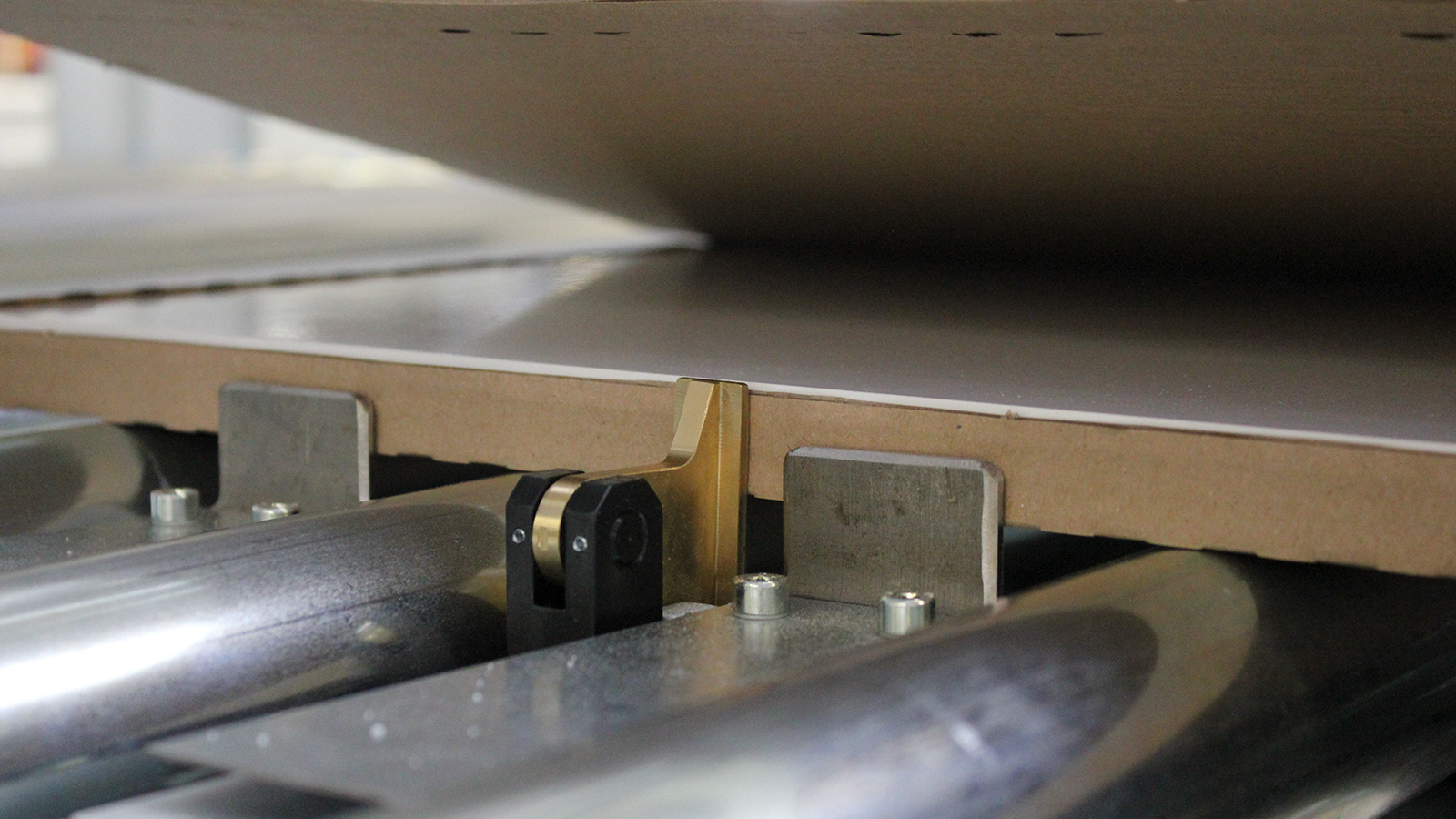

  • High packaging quality even at flat packaging from minimum box height 22 mm.

Features

  • Automatic cardboard box measuring at the infeed, no data input required even by using boxes with different sizes

  • Closing mechanisms adjust quickly and fully automatically to the size of the specific cardboard box

  • woodBase reference number management

  • Savings of up to 85 % thanks to hot-melt technology (compared to using adhesive tape)

    Savings of up to 40 % in cardboard consumption thanks to the usage of side-closing packing designs

Technical Data

Package length (internal dimensions) [mm]

400 - 2,500

Package width (internal dimensions) [mm]

180 - 1,100

Package height (internal dimensions) [mm]

22 - 250

Package weight [kg]

max. 80

Working height [mm]

900 +/- 30

Conveying speed packaging belt [m/min]

35

Operating pressure [bar]

6

Quality of the cardboard



Thickness of the cardboard [mm]

2.7 - 6.5    +/- 0.2

Cardboard quality according to 55468 [mm]

1-corrugation, thickness up to approx. 4.0 (Quality 1.10 - 1.40)



2-corrugation, thickness up to approx. 6.5 (Quality 2.10 - 2.30)

Control

powerTouch

(Previous product name: Cardboard-box closing machine VKV 710)
